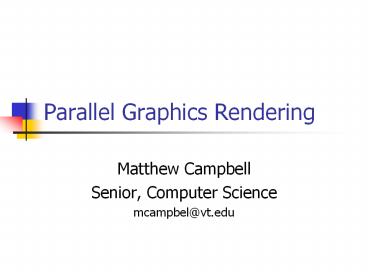

Parallel Graphics Rendering

1
Parallel Graphics Rendering

• Matthew Campbell
• Senior, Computer Science
• mcampbel_at_vt.edu

2
Overview

• Motivation
• Three categories of parallel rendering
• Our approach
• Results
• Questions

3
Motivation

• PC graphics cards are getting faster at an
  exponential rate.
• PC graphics boards are much cheaper than
  proprietary SGI hardware.
• Geforce4 FX 150.00 (130 Mtris/sec)
• SGI Onyx 300 145,000 (80 Mtris/sec)
• Maintanance costs are lower
• Replacement parts are easy to get.
• PCs are not as complicated as proprietary
  hardware.

4
Parallel Rendering

• String together numerous PCs with good graphics
  boards and render the models in parallel.
• Increased performace
• Better technology tracking
• Three groups of algorithms
• Sort-First
• Sort-Middle
• Sort-Last

5
Rendering Pipeline

• Transformation stage
• Per-Vertex operations
• Primitive Assembly
• 3D World Space!
• Rasterization stage
• Per-fragment operations
• Texture mapping
• 2D Image Space!

6
Parallel Rendering Sort Last

• Sort Last
• Distribute polygons
• Round robin distribution resulting in an equal
  load on each processor.
• Pass through entire rendering pipeline.
• Transformation / Rasterization (see last slide)
• Each CPU now has the entire scene
• But individual scenes are incomplete
• Hidden polygons may be visible
• Solution Image composition

7
Sort Last Image Composition

• The scene at each CPU has a frame buffer with
  color values for each pixel and a depth buffer
  with Z values for each pixel.
• Composition Given 2 scenes it computes the color
  of the pixel at each screen coordinate
• Compare the depth buffer values at each pixel
  location. The resultant color value is the color
  of the pixel corresponding to a lower z axis
  value.
• Alpha blending is more complex.
• Why?

8
Sort Last Image Composition

• Time complexity of the previous sort algorithm is
  O(n), which is pretty bad.
• Can we improve it?
• Alternate algorithms
• Tree composition.
• Rotating rings.
• Binary composition.

9
Sort-Last Performance

• Sort-Last has very high communication bandwidth
  requirement.
• Each processor needs to send and receive an
  entire frame
• 1280x1024 resolution, 24-bits for color, 16-bits
  for depth, 30fps
• (3.9MB 2.6MB) 30 196MB/sec bidirectional!
• Need a very fast network interconnecting the CPUs
  in the cluster.
• In actuality, we need more bandwidth, because we
  havent taken into account, the time it takes to
  render the scene!
• But.. No overhead for rendering the actual scene!

10
Parallel Rendering Sort Middle

• Sort Middle
• Distribute polygons in a round robin fashion
• Trap polygons between geometry and rasterization
  phases
• Each CPU in the cluster is responsible for a
  specific region in screen coordinates
• Calculate the bounding boxes (screen space) for
  the trapped polygons and redistribute them to the
  appropriate CPU responsible for the region.
• Collate Images

11
Parallel Rendering Sort Middle

• How do you divide the screen into regions?
• Strips (either horizontal or vertical)
• Squares
• What is the mapping ratio between CPUs and
  regions?
• One-to-One Each CPU manages 1 region
• One-to-Many Each CPU manages many regions
• What about polygons that cross region boundaries?
• Multiple CPUs render the same polygon.

12
Sort-Middle Performance

• Load-balancing can be poor. The slowest CPU will
  block the system from rendering the next scene.
• Load balancing is highly scene and view
  dependent.
• Need adaptive load-balancing schemes.
• In high polygon count scenes, the size of each
  polygon can be very small (1 2 pixels).
• In this case, sort middle requires more bandwidth
  than sort-last.
• Communication bandwidth required is dependent on
  the scene complexity. (Bad)

13
Parallel Rendering Sort First

• Sort First
• Distribute polygons round-robin to all CPUs.
• Calculate bounding volumes for each polygon
• Remember, we are still in the world coordinate
  system.
• Each CPU is responsible for 1 volume.
• Redistribute polygons based on bounding volumes.

• Pass through complete rendering pipeline
• In the end we have sub-images at each processor.
• Designate a coordinator node, which receives
  sub-images from all other processors.
• Coordinator collates sub-images into the final
  image.

14
Sort First - Performance

• Communication bandwidth required is based only on
  screen space resolution.
• Example
• 4 CPUs, 10241024 scene, 32 bits/color
• The coordinator node receives 1024102424
  bits/frame. 3MB.
• Bandwidth 90MB/sec for 30 fps.
• Problem Similar to sort-middle, load balancing
  is scene dependent.
• Bigger issue Cant use a one-to-many CPU to
  region mapping.
• Or can you?

15
Parallel Rendering Issues

• Cannot break the rendering pipeline
• Pipeline is implemented in hardware
• Therefore, very expensive. Could lead to
  excessive stalls, cache misses, etc..
• Modern graphics cards have large amounts of
  memory on the board and much faster access times.
• 8GB/sec vs. 1GB/sec for AGP4x
• Graphics driver source code is unavailable
• Additional cost/overhead due to framebuffer
  accesses.

16
Our Approach

• High Performance real-time rendering.
• High scene complexity and/or multiple displays as
  in a VE.
• Target 200-300 million triangles/sec. In
  comparison the best SGI platform Reality
  Monster is capable of 80 million polygons/sec
• Approach
• Distributed Sort-First.
• Two level sorting.
• Organize your model in a spatial tree data
  structure.
• At run-time compare bounding volumes for interior
  nodes of the tree. The bounding volume for an
  interior node is a superset of its children. This
  minimizes comparisons.
• Fine pruning based on viewing frustum.

17
Hardware

• 32 Intel Xeon processor cluster (1.5 GHz
  processor)
• 256 MB RDRAM/node (3.2 GB/sec memory bandwidth)
• Myrinet (4 Gbps) and Fast Ethernet (200 Mbps
  full-duplex) communication fabrics.
• 64 bit/66 MHz PCI bus (4 Gbps throughput)
• 4x AGP (1GB/sec throughput)

18
Software

• Extensible Parallel 3D Rendering Engine
• Supports large geometric databases, including
  standard formats such as 3D Studio
• Provides an extensible API.
• Underlying system is based on OpenGL.
• Based on dynamic shared object model.
• Dynamic Load Balancing
• Adaptively resizes volumes assigned to a
  processor for single display systems.
• Adaptively changes the number of processors and
  rendering volumes for multi-display systems.

19
Software Architecture

• Master-Slave arrangement
• Multi-threaded
• Two stage parallel rendering pipeline.

20
Results Rendering Rate
Figure 1 Scalability of our implementation.
Actual depicts the performance taking into
account triangle overlap among nodes, effective
depicts what the system is capable of
delivering. Left image uses a real world dataset
(LIDAR data). Right image uses a generated
dataset to fully exploit the overlap issue.
21
Results Load Balancing
Figure 2 The effects of load balancing on 4
nodes (left) and 16 nodes (right). The graph
depicts the individiual frame times for first 100
frames.
