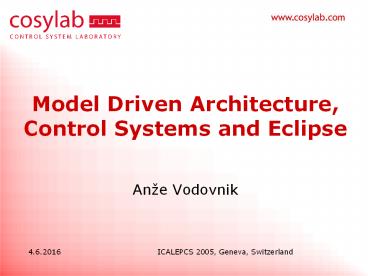

Model Driven Architecture, Control Systems and Eclipse

1
Model Driven Architecture,Control Systems and
Eclipse

• Anže Vodovnik

2
Click here to add your title

• Click here if you want to add some text.

3
Overview

• Model Driven Architecture
• Control Systems
• Eclipse
• Eclipse Modeling Framework
• Illustration

4
Model Driven Architecture (MDA)

• Conceived by the Object Management Group (OMG)
  group
• The approach suggests platform-independent models
  (PIM)
• High level of abstraction
• Contain the domain knowledge
• Dont contain specifics of a particular
  technology, middleware, framework,
• Platform-specific models (PSM) are generated in a
  systematic way from the PIM
• It is possible to enforce
• Architectural constraints (e.g., dependency
  between layers, )
• Consistent implementation of design patterns
  (getter/setter methods for properties, singleton,
  factory, )
• naming conventions (e.g., fieldName not
  FIELD_Name or FieldName)
• coding guidelines
• Generator does not produce accidental errors
  either things are always right or always wrong.
• For more information, please refer to Markus
  Völters Sunday tutorial on MDA (link at the end).

5
Model Driven Architecture
Source Markus Völters tutorial on MDA
6
Model Driven Architecture
Source Markus Völters tutorial on MDA
7
Control Systems

• Multiple platforms(servers, clients, real-time
  controllers, )
• Different middleware (CORBA, DCOM, )
• Different frameworks (J2EE, .NET, )
• Various devices (serial, GPIB, VME, )
• Relatively simple models, but lots of code
• Requires the following to be synchronized
• Configuration database
• Communication protocol implementations
• User interface layout
• Service implementation

8
Cosylabs effort so far
9
Cosylabs effort so far
10
Eclipse

• Java based and widely used development
  environment
• Extensible through plug-ins.
• Plug-ins for modeling are avaiable
• Eclipse Modeling Framework (EMF)
• Model Driven Development integration project
  (MDDi)

11
Eclipse Modelling Framework (EMF)

• EMF is a modeling framework and code generation
  facility for building tools and other
  applications based on a structured data model
• Provides classes for visual editors for the
  models imported into the framework
• Provides support classes for code generators

12
Asyn Device Support

• Library for device communication
• Primarily for EPICS, but reusable elsewhere
• Sending commands and receiving responses from
  devices via GPIB or serial links
• This is not always trivial (e.g., device crashes,
  timeouts, protocol errors, )
• Allows connecting EPICS records to command
  strings
• The code may become hard to mantain
• A simpler model could be used to describe the
  driver

13
Device model
14
Illustration

• Generating the generator
• Using Eclipse EMF
• Using Java Annotations

/ _at_model type"Command"
containment"true" / Command
getCommands() / _at_model
type"Property" containment"true"
/ Property getProperties()
15
Model Driven Asyn Driver tool

• Eclipse-based visual composition facility for
  Asyn drivers
• Allows for parameter editing
• Possible future development
• Support for code generation
• Complete model implementation

16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
Conclusion

• Eclipse community is not ignoring the MDA
• New projects are started with MDA in mind
• Generators remain an interesting topic
• The prototype presented proves the concept of
  Eclipse based MDA solutions for control systems

20
References

• Markus Völter, Tutorial on MDA http//www.voelter.
  de/data/presentations/MDDoCBDS.ppt
• Object Management Group Model Driven
  Architecture, http//www.omg.org/mda/.
• Dan Matheson et al., Managed Evolution of a
  Model Driven Development Approach to
  Software-based Solutions, OOPSLA GPCE Workshop
  2004.
• K. Žagar et al., The Control System Modeling
  Language, ICALEPCS2001, San Jose, USA October
  2001.
