Cold Neutron Spectroscopy on MACS

1

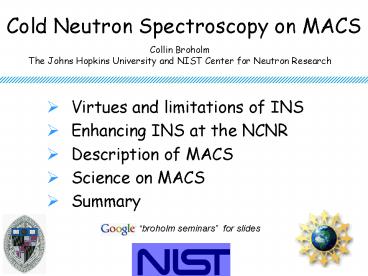

Cold Neutron Spectroscopy on MACS
Collin Broholm The Johns Hopkins University and
NIST Center for Neutron Research

• Virtues and limitations of INS
• Enhancing INS at the NCNR
• Description of MACS
• Science on MACS
• Summary

Google broholm seminars for slides
2
Neutron Spectroscopy

• A central tool in condensed matter physics
• Unique information about dynamic correlations
• Model independent access to interaction strength
• Access microscopic structure of dynamic systems
• Limited scope on current instruments
• Need cm3 sized crystals
• Need weeks of beam time
• Need neutron scattering expert
• Increased sensitivity will broaden impact
• Comprehensive surveys to test theory
• Parametric studies
• Smaller samples

3
Interesting samples come in all sizes
Bound spinons in spin-1 chain
Free spinons in spin-1/2 chain
10 mm
40 mm
Y2BaNiO5
Cu(C4D4N2)(NO3)2
Bound spinons in spin-1/2 ladder
Frustrated Magnetism
0.1 mm
4 mm
ZnCr2O4
Cu2(quinox)2Cl4
4
Resolution requirements to probe magnets

• Q and E resolved spectroscopy

• Energy scale J varies more than length scale a

5
Comparing TOF to TAS

• Can focus neutrons with Bragg optics
• Freely select range of energy transfer
• Can use reactor CW flux

TAS like

• Large detector solid angle is possible
• E-scan without moving parts
• Can use spallation source peak flux

TOF like
6
TOF/TAS complementarity
TOF Data from MAPS/ISIS
Y2BaNiO5
Xu et al science (2000)
7
Unique Opportunities for INS at the NCNR
8
Characteristics of a TAS at NG0

• Wave vector resolution using full beam
• Energy Resolution
• Flux on sample
• Incident Energy Range 2.5-20 meV

9
Maximizing the potential for new science

• Beam delivery system
• Focus full beam onto small sample
• High rejection rate for non-Ei neutrons
• Variable Q and Ei resolution
• Detection system
• Maximize solid angle of detection system
• Offer variable resolution
• Maximize S/N through shielding and geometry
• User interface
• Fast, accurate, and safe setup
• Data Acquisition Planning Tools
• Click for access to all features
• Comprehensive visualization and analysis tools

10
Overview of MACS
Shielding
Helium
6.2 m
11
MACS beam shutter

• Four position rotating shutter
• Closed 70 mm thick neutron shielding
• 50 mm vertical slit
• Conical full opening
• 100 mm vertical slit

12
Cooled Incident Beam filters

• Reject non-Ei neutrons
• Eilt 5 meV 10 cm beryllium
• Eilt15 meV 5 cm PG
• Eilt20 meV 8 cm Sapphire
• Cold filters move in vacuum
• Pneumatic actuation in lt15 s
• Closed cycle helium cooling

13
The Monochromator Cask
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
Four-position Radial collimator

• Control source size hence DE
• Gd2O3 coated Stainless foils
• Two aligned segments 4 settings
• Pneumatic actuation in lt15 s

Randy Hammond JHU
18
Variable incident beam aperture

• Control beam envelope hence DQ
• Independent control of Q-resolution
• Trim beam to match monochromator
• Full range actuation in 5 s
• 10 cm moderatingabsorbing shutters

Scott Spangler JHU
High density Polyethylene
B4C
10 cm
19
The MACS monochromator
20
Projected Performance (McStas)
6
5
F (108 n/cm2/s)
4
open
3
60
2
40
20
1
0
Y. Qiu and Y. Dong (2004)
21
Actual Measured Performance
2 cm
4 cm
Jose A. Rodriguez, NIST
22
2020 Channel MACS detection system
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
Internal B4C Poly Urethane shielding
27
The Double Crystal Analyzer Unit

• Variable energy 2.5 meVltElt15 meV
• Vertically focusing compound lense
• Background suppressing collimator
• Motion controlled by a single motor
• Patent pending design by Tim Pike

28
Vertical focusing to reduce background
Double analyzer is compound lens
efficient vertical focusing
29
(No Transcript)
30
Multi Analyzer Crystal Spectrometer
31
Constant energy transfer slice
32
Assembling slices to probe Q-E volume
33
Data Acquisition

• Virtual spectroscopic arc detector
• Counting incorporates 2Q scan for continuous
  coverage along arc in Q-space
• Range of sample rotations determines area covered
• Virtual TAS
• Specify which set of channels can be used
• Software decides on appropriate active channel
• Operation indistinguishable from conventional TAS
• All detector information nonetheless recorded
• Graphical data acquisition planning tools
• Real time images of data

34
Elements of Scientific Program for MACS

• Expand the scope for Inelastic scattering from
  crystals
• 0.5 mm3 samples
• Impurities at the 1 level
• Extreme environments pressure and fields to tune
  correlated systems
• Complete surveys to reveal spin-wave-conduction
  electron interactions
• Probing short range order
• Solid ionic conductors, spin glasses,
  quasi-crystals, ferroelectrics, charge and spin
  polarons, quantum magnets, frustrated magnets.
• Excitations in artificially structured solids
• Spin waves in magnetic super-lattices
• Magnetic fluctuations in nano-structured
  materials
• Weak broken symmetry phases
• Incommensurate charge, lattice, and spin order in
  correlated electron systems

Lee et al. (2002)
J. Rodriquez et al (2004)
35
Summary

• MACS makes use of unique aspect of the NBSR
  large solid angle access to intense cold neutron
  source
• World class flux on sample
• 2020 channel low background detector system
• Ability to tailor energy range and resolution
  makes MACS complementary to TOF spectrometers
• First experiments anticipated in 2007

36
Contributors to MACS project

• NIST Center for Neutron Research
• G. Baltic, P. C. Brand, C. Brocker, M. English,
  P. D. Gallagher, C. J. Glinka, Z. Huang, P.
  Kopetka, J. G. LaRock, J. W. Lynn, J. Moyer, N.
  Maliszewskyj, D. J. Pierce, J. Rodriguez, M.
  Rowe, J. Rush, and others
• Johns Hopkins University
• R. Barkhouser, C. Broholm, R. Hammond, P. K.
  Hundertmark, R. Lavender, J. Orndorff, T. D.
  Pike, G. Scharfstein, S. A. Smee, and others

Google broholm seminars for slides
