VORTONICS: Vortex Dynamics on Transatlantic Federated Grids

1

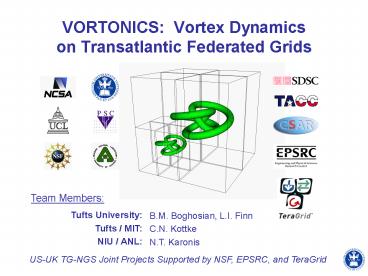

VORTONICS Vortex Dynamicson Transatlantic
Federated Grids
US-UK TG-NGS Joint Projects Supported by NSF,
EPSRC, and TeraGrid
2
Vortex Cores

• Evident coherent structures in Navier-Stokes flow
• Intuitively useful Tornado or smoke ring
• Theoretically useful Helicity and linking
  number
• No single agreed upon mathematical definition
• Difficulties with visualization
• Vortex interactions poorly understood

3
Scientific Computational Challenges

• Physical challenges Reconnection and Dynamos
• Vortical reconnection governs establishment of
  steady-state in Navier-Stokes turbulence
• Magnetic reconnection governs heating of solar
  corona
• The astrophysical dynamo problem
• Exact mechanism and space/time scales unknown and
  represent important theoretical challenges
• Mathematical challenges
• Identification of vortex cores, and discovery of
  new topological invariants associated with them
• Discovery of new and improved analytic solutions
  of Navier-Stokes equations for interacting
  vortices
• Computational challenges Enormous problem sizes,
  memory requirements, and long run times
• Algorithmic complexity scales as cube of Re
• Substantial postprocessing for vortex core
  identification
• Largest present runs and most future runs will
  require geographically distributed domain
  decomposition (GD3)
• Is GD3 on Grids a sensible approach?

Homogeneous turbulence driven by force of
Arnold-Beltrami-Childress (ABC) form
4
Simulations to Study Reconnection

• Aref Zawadzki (1992) presented numerical
  evidence that two nearby elliptical vortex rings
  will partially link
• Benchmark problem in vortex dynamics
• Used vortex-in-cell method for 3D Euler flow
• Some numerical diffusion associated with VIC
  method, but very small

5
Example Hopf Link

• Two linked circular vortex tubes as initial
  condition
• Latice Boltzmann algorithm for Navier-Stokes with
  very low viscosity (0.002 in lattice units)
• ELI variational result in dark blue and red
• Vorticity thresholding in light blue
• The dark blue and red curves do not unlink in the
  time scale of this simulation!

6
Example Aref Zawadzkis Ellipses Front View

• Parameters obtained by correspondence with Aref
  Zawadzki
• Lattice Boltzmann simulation with very low
  viscosity
• They do not link in the time scale of this
  simulation!

7
Same Ellipses Side View

• Note that not all minima are shown in the late
  stages of this evolution - only the time
  continuation of the original pair of ellipses
• Again They do not link in the time scale of this
  simulation!

8
Lattice Remapping, Fourier Resizing,and
Computational Steering

• At its lowest level, VORTONICS contains a general
  remapping library for dynamically changing the
  layout of the computational lattice across the
  processors (pencils, blocks, slabs) using MPI
• All data on computational lattice can be Fourier
  resized (FFT, augmentation or truncation in k
  space, inverse FFT) as it is remapped
• All data layout features are dynamically
  steerable
• VTK used for visualization (each rank computes
  polygons locally)
• Grid-enabled with MPICH-G2 so that simulation,
  visualization, and steering can be run anywhere,
  or even across sites

9
Vortex Generator Component

• Given parametrization of knot or link
• Future Draw a vortex knot
• Superpose contributions from each
• Each site on 3D grid performs line integral
• Divergenceless, parameter-independent
• Periodic boundary conditions requires Ewald-like
  sum over image knots
• Poisson solve (FFT) to get velocity field

10
Components for Fluid Dynamics

• Navier-Stokes codes
• Multiple-relaxation-time lattice Boltzmann
• Entropic lattice Boltzmann
• Pseudospectral Navier-Stokes solver
• All codes parallelized with MPI (MPICH-G2)
• Domain decomposition
• Halo swapping

11
Components for VisualizationExtremal Line
Integral (ELI) Method

• Intuition Line integral of vorticity along
  vortex core is large
• Definition A vortex core is the curve along
  which line integral of vorticity is a local
  maximum in the space of all curves in the fluid
  domain
• with appropriate boundary conditions
• For smoke ring, periodic BCs
• For tornado or trailing vortex on airplane wing,
  one end is attached to zero-velocity boundary,
  other at infinity
• For hairpin vortex, two ends attached to
  boundary
• Result is one-dimensional curve along vortex core
• Two References available (Phil. Trans. Physica
  A)

12
ELI Algorithm

• Ginsburg-Landau equation for which line integral
  is a Lyapunov functional

• Evolve curve in fictitious time t
• Equilibrium of GL equation is a vortex core

13
Computational Steering

• All components use computational steering
• Almost all parameters are steerable
• time step
• frequency of checkpoints
• outputs, logs, graphics
• stop and restart
• read from checkpoint
• even spatial lattice dimensions (dynamic lattice
  resizing)
• halo thickness

14
Scenarios for Using TFD Toolkit

• Run with periodic checkpointing until a
  topological change is noticed
• Rewind to last checkpoint before topological
  change, refine spatial and temporal
  discretization, viscosity
• Postprocessing of vorticity field and search for
  vortex cores can be migrated
• All components portable and may run locally or on
  geographically separated hardware

15
Cross-Site RunsBefore, During, and After SC05

• Federated Grids
• US TeraGrid
• NCSA
• San Diego Supercomputing Center
• Argonne National Laboratory
• Texas Advanced Computing Center
• Pittsburgh Supercomputing Center
• UK National Grid Service
• CSAR
• Task distribution
• GD3 - is it sensible for large computational
  lattices?

16
Run Sizes to Date / Performance

• Multiple Relaxation Time Lattice Boltzmann
  (MRTLB) model
• 600,000 SUPS/processor when run on one
  multiprocessor
• Performance scales linearly with np when run on
  one multiprocessor
• 3D lattice sizes up to 6453 run prior to SC05
  across six sites
• NCSA, SDSC, ANL, TACC, PSC, CSAR
• 528 CPUs to date, and larger runs in progress as
  we speak!
• Amount of data injected into network. Strongly
  bandwidth limited.
• Effective SUPS/processor
• Reduced by factor approximately equal to number
  of sites
• Therefore SUPS approximately constant as problem
  grows in size

nx np GB
512 512 1.5
645 512 2.4
1024 1024 7.6
1536 1024 17.1
2048 2048 38.4
sites kSUPS/Proc
1 600
2 300
4 149
6 75
17
Discussion / Performance Metric

• We are aiming for lattice sizes that can not
  reside at any one SC Center, but
• Bell, Gray, Szalay, PetaScale Computational
  Systems Balanced CyberInfrastructure in a
  Data-Centric World (September, 2005)
• If data can be regenerated locally, dont send it
  over the grid (105 ops/byte)
• Higher disk to processing ratios - large disk
  farms
• Thought experiment
• Enormous lattice, local to one SC Center, by
  swapping n sublattices to disk farm
• If we can not exceed this performance, it is not
  worth using the Grid for GD3
• Make the very optimistic assumption that disk
  access time not limiting
• Clearly total SUPS constant, since it is one
  single multiprocessor
• Therefore SUPS/processor degrades by 1/n
• We can do that now. That is precisely the
  scaling that we see now. GD3 is a win!
• And things are only going to improve
• Improvements in store
• UDP with added reliability (UDT) in MPICH-G2 will
  improve bandwidth
• Multithreading in MPICH-G2 will overlap
  communication and computation to hide latency and
  bulk data transfers
• Disk swap in volume, interprocessor
  communications on surface, keep in processors!

18
Conclusions

• GD3 is already a win on todays TeraGrid/NGS,
  with todays middleware
• With improvements to MPICH-G2, TeraGrid
  infrastructure, and middleware, GD3 will become
  still more desirable
• The TeraGrid will enable scientific computation
  with larger lattice sizes than have ever been
  possible
• It is worthwhile to consider algorithms that push
  the envelope in this regard, including relaxation
  of PDEs in 31 dimensions
