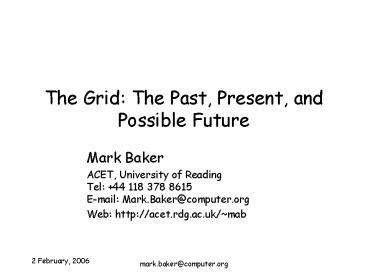

The Grid: The Past, Present, and Possible Future

1
The Grid The Past, Present, and Possible Future

• Mark Baker
• ACET, University of Reading Tel [phone]
  8615 E-mail Mark.Baker_at_computer.org
• Web http//acet.rdg.ac.uk/mab

2
Outline

• Characterisation of the Grid.
• The Evolution of the Grid.
• Convergence of Technologies
• WS-RF.
• The UK e-Science programme.
• E-Science applications
• The GridCast Project,
• OGSA-DAI.
• Summary and Conclusions

3
Characterisation of the Grid

• In 2001, Foster, Kesselman and Tuecke refined
  their original definition of a grid to
• "co-ordinated resource sharing and problem
  solving in dynamic, multi-institutional virtual
  organizations
• This definition is the one most commonly used to
  day to abstractly define a grid.

4
Characterisation of the Grid

• Foster later produced a checklist that could be
  used to help understand exactly what can be
  identified as a grid system, three parts
• Co-ordinated resource sharing with no centralised
  point of control and that the users resided
  within different administrative domains
• If not true it is probably the case that this is
  not a grid system!
• Standard, open, general-purpose protocols and
  interfaces
• If not, it is unlikely that system components
  will be able to communicate or inter-operate, and
  it is likely that we are dealing with an
  application-specific system, and not the Grid.
• Delivering non-trivial qualities of service -
  here we are considering how the components that
  make up a grid can be used in a co-ordinated way
  to deliver combined services, which are
  appreciably greater than sum of the individual
  components
• These services may be associated with throughput,
  response time, meantime between failure,
  security, or many other facets.

5
Characterisation of the Grid

• From a commercial view point, IBM define a grid
  as
• a standards-based application/resource sharing
  architecture that makes it possible for
  heterogeneous systems and applications to share
  compute and storage resources transparently

6
What is not a Grid!

• A cluster, a network attached storage device, a
  desktop PC, a scientific instrument, a network
  these are not grids
• Each might be an important component of a grid,
  but by itself, it does not constitute a grid.
• Screen saver/cycle stealers
• SETI_at_HOME, fold_at_home, etc,
• Other application specific to distributed
  computing.
• Most of the current Grid providers
• Proprietary technology with closed model of
  operation.
• Globus
• It is a toolkit to build a system that might work
  as or within a grid.
• Sun Grid Engine, Platform LSF and related.
• Almost anything referred to as a grid by
  marketeers!

7
Evolution of the Grid

• The early to mid 1990s marks the emergence of the
  early metacomputing or grid environments.
• Typically, the objective of these early
  metacomputing projects was to provide
  computational resources to a range of high
  performance applications.
• Two representative projects, in the vanguard of
  this type of technology, were FAFNER and I-WAY
  both cica 1995.

8
Convergence of Technologies

• Both projects attempted to provide metacomputing
  resources from opposite ends of the computing
  spectrum
• FAFNER was Web-based for factoring the RSA
  challenge (130), capable of running on any
  workstation with more than 4 Mbytes of memory,
  and was a aimed at a trivially parallel
  application.
• IWAY was a means of unifying the resources of
  large US supercomputing centres, and was targeted
  at high-performance applications (compute/data
  intensive).
• Each project was in the vanguard of metacomputing
  and helped pave the way for many of the
  succeeding projects
• FAFNER was the forerunner of the likes of
  SETI_at_home, fold_at_home and Distributed.Net,
• I-WAY was the same for Globus, Legion, and
  UNICORE.

9
Convergence of Technologies

• Since the emergence of the second generation of
  systems (e.g. Globus/Legion circa 1995) there
  has been a number of classes of wide-area
  systems that have been developed
• Grid-based, aimed at HPC compute/data
  intensive, e.g. Globus/Legion/UNICORE
• Object-based, e.g. CORBA/CCA/Jini/Java-RMI
• Web, e.g. Javelin, seti_at_home, Charlotte,
  fold_at_home, ParaWeb, distributed.net
• Enterprise - bespoke systems, such as IBMs
  WebSphere, BAEs WebLogic, and Microsofts .Net
  platform.

10
Convergence of Technologies

• The developers in these four areas, over the
  years, evolved their systems there were many
  overlaps, various collaborations started, and to
  an extent, a realisation that a unified approach
  to the development of middleware to support
  wide-area applications was arrived at.
• Unifying standards bodies helped this process
  for example GGF,OASIS, W3C, and IETF.
• Convergence of WS, HPC, OO, SOA, .
• A results of this was that the Open Grid Service
  Architecture (OGSA) which was announced at GGF4
  in Feb 2002, and was declared their flagship
  architecture in March 2004.
• OGSA was based on Web Services technologies.

11
The OGSA Architecture
12
Convergence of Technologies

• The OGSA document, first released at GGF11 in
  June 2004, gave current thinking on the required
  capabilities and was released in order to
  stimulate further discussion.
• Note instantiations of OGSA depend on emerging
  specifications
• Currently the OGSA document does not contain
  sufficient in formation to develop an actual
  implementation of OSGA-based system.
• The first OGSA-based reference implementation was
  GT3 OGSI, released in July 2003.
• Major problems were identified with OGSI, some
  where political and other were technical.

13
Convergence of Technologies

• In Jan 2004, a significant shift happened when
  WS-RF was announced.
• Problems were identified with OGSI
• Re-implementation of a lot of layers which are
  already standardised in commodity WS, for example
  GSDL,
• Felt too much in one specification,
• Did not work well with existing tooling for WS,
• Too OO!
• Whereas with WS-RF
• New mechanisms build on top of existing WS
  standards and adds a few,
• Basically rebuilding OGSI functionality using WS
  tooling, extending where necessary,
• Dependant on six new or emerging WS
  specifications!

14
Grid and Web ServicesConvergence!
Grid
GT1
GT2
OGSI
Started far apart
WSRF
WSDL 2, WSDM
WSDL, WS-
Web
HTTP
WSRF meant that Grid and Web communities are
moving forward on a common base!
15
WSRF Family of Specifications

• WSRF is a framework consisting of a number of
  specifications
• WS-Resource Properties,
• WS-Resource Lifetime,
• WS-Service Groups,
• WS-Notification,
• WS-BaseFaults,
• WS-Renewable References.
• Associated WS specifications
• WS-Addressing,

16
WS-RF Specifications

• WS-ResourceProperties
• A WS-Resource has zero or more properties
  expressible in XML, representing a view on the
  WS-Resource's state.
• WS-ResourceLifetime
• This specification standardises the means by
  which a WS-Resource can be destroyed, monitored
  and manipulated.
• WS-ServiceGroup
• This specification defines a means of
  representing and managing heterogeneous,
  by-reference, collections of Web services.
• WS-BaseFaults
• Defines an XML Schema for base faults, along with
  rules for how this base fault type is used and
  extended by Web services.

17
WS-RF Specifications

• WS-Addressing
• Provides a mechanism to place the target, source
  and other important address information directly
  within a Web services message.
• WS-Notification
• WS-BaseNotification defines the interfaces for
  NotificationProducers and NotificationConsumers..

• WS-BrokeredNotification defines the interface for
  the NotificationBroker, which is an intermediary
  that among other things, allows the publication
  of messages from entities that are not themselves
  service providers.
• WS-Topics defines a mechanism to organise and
  categorise items of interest for subscription
  known as "topics.

18
Emerging Grid Standards
April 2005 issue of IEEE Computer
19
Emerging Grid Standards
20
e-Science

• e-Science is about global collaboration in key
  areas of science, and the next generation of
  infrastructure that will enable it.
• e-Science will change the dynamics of the way
  science is undertaken.
• John Taylor
• Director General of Research
  Councils
• Office of Science and Technology

21
The Drivers for e-Science

• More data
• Instrument resolution and laboratory automation,
• Storage capacity and data sources.
• More computation
• Computations available, simulations
  doubling every year
• Faster networks
• Bandwidth,
• Need to schedule.
• More inter-play and collaboration
• Between scientists, engineers, computer
  scientists etc.,
• Between computation and data.

22
The Drivers for e-Science

• Collaboration,
• Data Deluge,
• Digital Technology
• Ubiquity,
• Cost reduction,
• Performance increase.
• In summary
• Shared data, information and computation by
  geographically dispersed communities.

23
The UK e-Science Programme

• First Phase 2001 2004
• Application Projects
• 74M,
• All areas of science and engineering.
• Core Programme
• 15M Research infrastructure,
• 40M Collaborative industrial projects.

• Second Phase 2003 2006
• Application Projects
• 96M,
• All areas of science and engineering.
• Core Programme
• 16M Research Infrastructure,
• DTI Technology Fund.

24
The UK e-Science Programme

• An exciting portfolio of Research Council
  e-Science projects
• Beginning to see e-Science infrastructure deliver
  some early wins in several areas,
• Astronomy, Chemistry, Bioinformatics,
  Engineering, Environment, Healthcare .
• The UK unique in strong industrial component
• Over 60 UK companies contributing over 30M,
• Engineering, Pharmaceutical, Petrochemical, IT
  companies, Commerce, Media,

25
And the future

• Grid Operations Centre, National Grid Service and
  AAA services,
• Open Middleware Infrastructure Institute,
• National e-Science Institute,
• Digital Curation Centre,
• International Standards Activity,
• Needs continued support from Research Councils
  with identifiable e-Science funding lines post
  2006.

26
E-Science Case Studies

• The GridCast ProjectGrid based Broadcast
  Infrastructures
• http//www.qub.ac.uk/escience

27
The Grid Scenario The BBC Nations -BBC NI,
Scotland and Wales
The focus of the project is distribution of
stored media files and their management in
multiple sites.

• BBC Nations provide customised services in each
  nation.
• Television programmes are distributed to BBC
  Nations from BBC Network (London) using
  dedicated leased ATM circuits.

28
Grid Infrastructure

• Technical
• High-bandwidth network connections inter-connect
  broadcast locations,
• Network bandwidth means geography is less of an
  issue.
• Organisational
• Less centralised.

29
Overview

• The aim was develop a baseline media grid to
  support a broadcaster
• Manage distributed collections of stored media,
• Prototype security and access mechanisms,
• Integrate processing and technical resources,
• Integrate with media standards and hardware.
• To analyse Quality of Service issues
• Analyse remote content distribution
  infrastructures,
• Analyse remote service provision,
• To analyse reactivity, reliability and resilience
  issues in a grid-based broadcast infrastructure

30
Characteristics

• Stored media files are Gbytes and increasing
• 1 hour 200 Gbytes distributes 1 petabyte /year
• Management and distribution is significant
  technically,
• Metadata which includes location, timings,
  artists, storage formats is an integral part of
  broadcast structure,
• Content is a valuable commodity access,
  modification, copying must be controlled,
• High levels of quality required.

31
A Virtualised Infrastructure
Sound Improvement
32
Model Grid Service Operation

• A schedule is registered with the schedule
  (network) management service.
• The schedule is automatically distributed to
  (nation) the schedule management component
• Local controller receives notification of
  schedule availability.
• The Nation Controller registers (nation) the
  schedule with local schedule management,
• Transport services develop a transport plan for
  content movement,
• Scheduled transport service moves content as
  defined in transport plan.

33
Broadcast grid issues

• Business change
• A revised organisational model (services and
  resources),
• Each broadcast location gains control.no network
  schedule.
• Resilience
• Resource sharing and no single programme
  repository,
• A BBC Nation can be anywhere!
• Reliability
• Use resources available in other BBC sites or
  from 3rd party suppliers.
• Cost
• Better use of resources and less need for backup
  resources,
• Less dependence on particular vendors or
  suppliers.
• Customisation
• Schedule, local resources, local capabilities.
• Interoperability
• Business model facilitates sharing with other
  broadcasters.

34
GridCast A Summary

• Television programme distribution
• Using a grid architecture to distribute
  programmes between broadcast sites
• Concentrating initially on recorded material.
• Television programme production
• Using a grid architecture to monitor and
  facilitate programme production.
• Television production technical assets
• Using a grid architecture to facilitate access
  and use of broadcasting resources in television
  programme production.

35
OGSA Data Access and Integration

• Middleware for distributed data access over the
  Grid.
• UK e-Science Edinburgh, Manchester and
  Newcastle.
• Industry partners IBM, Oracle and Microsoft.
• OGSA-DAI DBMS XML Dist. SQL

Dist. Query
OGSA-DAI
TCP/IP
OGSA/WSRF
TCP/IP
36
OGSA-DAI Projects

• OGSA-DAI is one of the Grid Middleware Centre
  Projects.
• Collaboration between
• EPCC,
• IBM ( Oracle in phase 1),
• National e-Science Centre,
• Manchester University,
• Newcastle University.
• Project funding
• OGSA-DAI, 2002-03
• 3.3 million from the UK Core e-Science funding
  programme,
• DAIT (DAI Two), 2003-06
• 1.3 million from the UK e-Science Core Programme
  II.
• "OGSA-DAI" is a trade mark.

Funded by UKs Department of Trade Industry
Engineering Physical Sciences Research Council
as part of the e-Science Core Programme
37
OGSA-DAI User Project classification

• AstroGrid

• ODD-Genes

• Bridges

Physical Sciences

• BioSimGrid

• GEON

• BioGrid

• eDiamond

• myGrid

Biological Sciences

• GeneGrid

OGSA-DAI

• N2Grid

• MCS

• OGSA Web-DB

• GridMiner

• IU RGBench

• FirstDig

• INWA

Computer Sciences
Commercial Applications
38
Example Projects Using OGSA-DAI
Bridges (http//www.brc.dcs.gla.ac.uk/projects/bri
dges/)
N2Grid (http//www.cs.univie.ac.at/institute/index
.html?project-8080)
BioSimGrid (http//www.biosimgrid.org/)
AstroGrid (http//www.astrogrid.org/)
BioGrid (http//www.biogrid.jp/)
GEON (http//www.geongrid.org/)
OGSA-DAI (http//www.ogsadai.org.uk)
eDiaMoND (http//www.ediamond.ox.ac.uk/)
OGSA-WebDB (http//www.gtrc.aist.go.jp/dbgrid/)
FirstDig (http//www.epcc.ed.ac.uk/firstdig/)
GeneGrid (http//www.qub.ac.uk/escience/projects.p
hpgenegrid)
INWA (http//www.epcc.ed.ac.uk/)
myGrid (http//www.mygrid.org.uk/)
ODD-Genes (http//www.epcc.ed.ac.uk/oddgenes/)
IU RGRBench (http//www.cs.indiana.edu/plale/proj
ects/RGR/OGSA-DAI.html)
39
The FirstDIG Project

• The FirstDIG (First Data Investigation on the
  Grid) project deployed OGSA-DAI within the First
  South Yorkshire bus operational environment
• First plc are the UKs largest public transport
  operator,
• Within their UK bus operations they have a huge
  range of data sources - vehicle mileage, fuel
  consumption, maintenance records, revenue,
  reliability, etc.
• A generic Grid Data Service Browser has been
  built and used to interrogate and combine data
  from OGSA-DAI enabled data sources to answer
  business questions posed by First South
  Yorkshire.

40
Summary

• The e-Science programme has pump primed the take
  up of the Grid in the UK.
• The programme is perceived as being a great
  success - given the UK a lead in e-Science.
• It has not been without its problems not least
  of these was the move to WSRF and the take up of
  the various WS specifications.
• Output from programme has led to a number of
  other projects that will address the current gaps
  in grid technologies.
• New funding related to infrastructure (JISC)
  support by implementing and deploying the
  technologies (VREs).
• All the projects are collaborations between
  academia and industry.

41
Some Further Work!

• Robust, reliable and inter-operable middleware
  that can scale to support a global
  infrastructure
• UK OMII meant to be hardening existing
  software.
• Funding for the implementation and deployment,
  rather than just research
• UK JISC for academia,
• UK DTI for commerce/industry.
• Security and trust mechanisms
• Take-up of Semantic Web technologies to speed the
  automation of component interaction.
• Open source software and agreed standards
• GGF, Oasis, EGA, IETF, W3C etc.
• Standards desperately need to standardise the
  standards
• Educational aspects under graduate other
  courses.

42
Summary Successful Grid Areas

• Distributed database integration intelligent
  queries and data-mining across heterogeneous data
  sources.
• Parameter sweeps run sequential tasks many
  times with different input data
• Coupled simulations the output of one
  simulation is the input of another
• Distributed resources sensors and equipment,
  processing, data silos, and visualisation at
  different remote sites.
• Application Service Provision services on
  demand!

43
Acknowledgements and links

• Prof Ron Perrott and the Belfast e-Science
  Centre
• http//www.qub.ac.uk/escience
• Prof Malcolm Atkinson, NeSC
• The OGSA-DAI Project Site
• http//www.ogsadai.org.uk

44
Shameless Plug
http//www.amazon.co.uk/exec/obidos/ASIN/047009417
6/qid3D1113207878/202-7878523-7639008
45
DS Online
46
DS Online
47
The End!

• Any Questions?

48
Other e-Science Projects

• Comb-e-Chem, a combinatorial chemistry
  application - http//www.combechem.org/
• The system allows students and researchers to
  virtually mix chemicals together and then try to
  identify the compounds they produce and the
  particular benefits these compounds may haveL
• Chemistry, CS, Maths, and IT Innovation.
• DAME - Distributed Aircraft Maintenance
  Environment http//www.cs.york.ac.uk/dame/
• Aims to produce sensors that measure temperature,
  vibration, and pressure of airplane engines as
  they fly from one location to another.
• Instead of waiting until a plane lands, sensor
  data will be sampled in flight and compared with
  existing patterns.
• If problems are detected mechanics can replace
  the damaged or faulty engine parts as soon as the
  plane lands and before anything drastic occurs
• Universities, Rolls Royce, Data Systems
  Solutions, and Cybula.

49
Other e-Science Projects

• The Geodise project is a grid-enabled
  optimisation and design search program for
  engineers -http//www.geodise.org/
• The project will allow aerospace companies, speed
  up the design process of their vehicles by
  capturing knowledge from previous designs and
  putting it together for simulations
• Universities, BAE Systems and Rolls-Royce and
  Fluent.
• Discovery Net - http//www.discovery-on-the.net/

• This project is producing high-throughput sensing
  applications such as environmental sensors and
  bioinformatic monitors.
• The aim is for doctors to someday be able to
  monitor the blood pressure, temperature, and drug
  intake of all their patients.
• A sensor on the patient's body will communicate
  the data through a mobile wireless communication
  device to the doctor's office.
• Universities, InforSense, deltaDOT, and
  HydroVenturi

50
References

• Ian Foster and Carl Kesselman (Editors), The
  Grid Blueprint for a New Computing
  Infrastructure, published by Morgan Kaufmann
  Publishers 1st edition (November 1, 1998), ISBN
  1558604758
• I. Foster, C. Kesselman, and S. Tuecke, The
  Anatomy of the Grid Enabling Scalable Virtual
  Organizations, International J. Supercomputer
  Applications, 15(3), 2001.
• Three Pooint Checklist, http//www.gridtoday.com/0
  2/0722/100136.html
• IBM Grid Computing, http//www-1.ibm.com/grid/grid
  _literature.shtml
• FAFNER, http//www.npac.syr.edu/factoring.html
• I. Foster, J. Geisler, W. Nickless, W. Smith, S.
  Tuecke Software Infrastructure for the I-WAY
  High Performance Distributed Computing
  Experiment in Proc. 5th IEEE Symposium on High
  Performance Distributed Computing. pp. 562-571,
  1997.
• WS-RF, http//www.globus.org/wsrf
