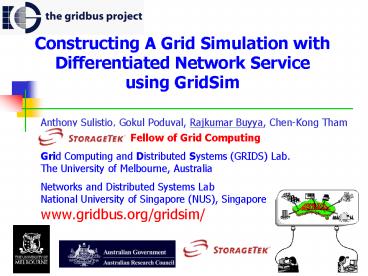

Constructing A Grid Simulation with Differentiated Network Service using GridSim

1
Constructing A Grid Simulation with
Differentiated Network Service using GridSim

• Anthony Sulistio, Gokul Poduval, Rajkumar Buyya,
  Chen-Kong Tham

Fellow of Grid
Computing Grid Computing and Distributed Systems
(GRIDS) Lab. The University of Melbourne,
Australia Networks and Distributed Systems
LabNational University of Singapore (NUS),
Singapore.www.gridbus.org/gridsim/
2
Presentation Outline

• Introduction
• Background
• Design and Implementation
• Experiments and Results
• Related Work
• Conclusion and Further Work
• Questions and Answers

3
Grid as Cyberinfrastructure for e-Science and
e-Business Applications
4
Resource Management and Application Scheduling

• This is one of most challenging aspect of Grid
  Computing
• Due to presence of heterogeneity resources along
  dynamic variation of available capability of
  resources.
• Application Scheduling Policies need to properly
  investigated/evaluated before deploying them on
  production Grids.

5
Performance Evaluation With Large Scenarios

• Varying the number of
• Resources (1 to 100s..1000s..).
• Resource capability.
• Cost (Access Price).
• Users.
• Deadline and Budget.
• Workload.
• Different Time (Peak and Off-Peak).
• We need a repeatable and controllable
  environment.
• Can this be achieved on Real Grid testbed ?

6
Grid Environment

• Dynamic
• Resource and User Properties vary with time.
• Experiment cannot be repeated.
• Resources are distributed and owned by different
  organizations. Heterogeneous users.
• It is hard to create a controllable environment.
• Grid testbed size is limited.
• Also, creating testbed infrastructure is time
  consuming and expensive.
• Hence, grid computing researchers turn to
  modeling and simulation.

7
GridSim Toolkit

• GridSim is a Java-based discrete-event grid
  simulation package.
• GridSim is based on SimJava2.
• Few functionalities of GridSim
• Allows modeling of heterogeneous of various types
  of resources users.
• Resources can be extended to implement your own
  allocation policies (e.g, SLA or VO based
  allocation).
• Supports simulation of both static dynamic
  schedulers.
• Simulates applications with different parallel
  models.

8
GridSim - System Architecture
Application, User, Grid Scenarios Input and
Results
. . .
Application Configuration
Resource Configuration
Visual Modeler
Grid Scenario
Output
Grid Resource Brokers or Schedulerss Simulation
GridSim Toolkit
Application Modeling
Information Services
Resource Allocation
Statistics
Job Management
Resource Entities
Add your own policy for resource allocation
Resource Modeling and Simulation (with Time and
Space shared schedulers)
Clusters
Single CPU
Reservation
SMPs
Load Pattern
Network
Basic Discrete Event Simulation Infrastructure
SimJava
Distributed SimJava
Virtual Machine (Java, cJVM, RMI)
Distributed Resources
PCs
Workstations
Clusters
SMPs
9
Network Functionalities

• Communication networks serve as a fundamental
  component of grid computing.
• A realistic simulation of grid environments
  should include the effects of sending data over
  shared communication lines.
• Earlier versions of GridSim did not have the
  ability to specify a network topology, nor the
  functionality to connect resources through
  network links in the experiment.

10
Our Work

• In this work, GridSim has been extended to
  address the above problems with the ability to
  simulate realistic network models by
• allowing users to create a network topology,
• packetizing a data into smaller chunks for
  sending it over a network,
• generating background traffic, and
• incorporating different level of services for
  sending packets.

11
GridSim Entities Communication Model
12
New Network Extension Model

• New functionalities
• support for Network Quality of Service, such as
  each packet has a Type of Service (ToS) attribute
• support for Runtime Information, such as an
  ICMP ping message.
• generate background traffic, which is done by
  Output

13
Experiment

• The main aim of this experiment is to show
  GridSim's ability to simulate an adequate-size
  grid testbed.
• For this experiment, we are mainly concern about
  the network behavior in a grid environment.
  Hence, we are trying to look at
• how background traffic might affect network loads
  and overall execution time and
• how differentiated QoS for packets might help in
  a heavy load situation

14
Australian BADG test-bed Hardware

• Uni.Adelaide CS group
• 2 Xeon 2.6GHz (IBM)70 GB disk
• APAC/GrangeNet (at ANU)
• 2 Xeon 2.6GHz (IBM)70 GB disk
• Uni.Melbourne EPP group
• 1 P4 Intel 2.0GHz70 GB disk
• Uni.Melbourne GridBus/CS
• 2 Xeon 2.6GHz (IBM)70 GB disk
• Uni.Sydney HEP group
• 2 Xeon 2.6GHz (IBM)70 GB disk

15
Experiment Setup

• Five resources are created in four different
  locations Canberra, Adelaide, Melbourne and
  Sydney.
• All resources are connected via GrangeNet, a
  Gigabit wide-area network within Australia.
• All links share same characteristics, i.e. MTU
  size of 1,500 bytes and latency of 10
  milliseconds.

16
GrangeNet and Grid Modeling
17
Resource Characteristics
Name Location Resource Characteristics Num CPU A SPEC Rating
R0 Dept. of Physics, Univ. of Melbourne PC with Intel Pentium 2.0 Ghz, 512MB RAM 1 684
R1 GRIDS Lab, Univ. of Melbourne Dual Intel Xeon 2.6 Ghz, 2GB RAM 4 1050
R2 Dept. of Physics, Univ. of Sydney Dual Intel Xeon 2.6 Ghz, 2GB RAM 4 1050
R3 Dept. of Computer Sc., Univ. of Adelaide Dual Intel Xeon 2.6 Ghz, 2GB RAM 4 1050
R4 Australia National Univ., Canberra Dual Intel Xeon 2.6 Ghz, 2GB RAM 4 1050
Table 1. Australian Belle analysis data grid
testbed simulated using GridSim
18
User Characteristics

• There are 5 users located on each of the four
  locations, sharing the same characteristics
• bandwidth 100 Mbps connected to a leaf router of
  each testbed site
• total number of jobs 20 each
• job data size 1 MB each
• job processing power 100 Million Instructions
  (MI) each
• job submission uniformly distributed among five
  resources as mentioned in Table 1.
• background traffic submits to all resources and
  other users, with inter-arrival time using a
  Poisson distribution approach with mean of 5
  minutes.
• Total number of packets for each interval is
  uniformly distributed in 1 ... 10. The
  size of each packet is 1,500 bytes

19
Results Advantage of network QoS in a shared
network environment
Priority With background traffic (in simulation minutes)
High 22.82
Normal 23.57
Table 2. Network QoS using SCFQ (self clocked
fair queuing) packet scheduler (4 users out of 20
are given high priority for sending their jobs)
Priority With SCFQ scheduler (in simulation seconds)
High 1.20 x 10-6
Normal 2.38 x 10-6
Table 3. An Average Packet Lifetime at the
Melbourne Leaf Router (which links 2 resources,
hence more traffic that other leaf routers)
20
Results
Packet Scheduling With background traffic (seconds) Without background traffic (seconds)
SCFQ 122 x 10-6 121 x 10-6
FIFO 149 x 10-6 146 x 10-6
Table 4. An average of high priority
package lifetime at the Melbourne Leaf
Router under a heavier load (job data size
10MB, previously 1 MB)
21
Results effect of background traffic
Number of packets passing through the Melbourne
Leaf Router
22
Related Work
Simulation Tools Routing Table Entry Type of Transport Protocol Data Packetization Runtime Network Status Network QoS
GridSim Automatic A datagram oriented protocol similar to UDP Supported Supported Supported
MicroGrid Automatic TCP and UDP Supported Supported Not supported
SimGrid Manual TCP Not supported Supported Not supported
OptorSim Manual Not supported Not supported Not supported Not supported
Table 5. Listing of network functionalities and
features for each grid simulator
23
Conclusion

• GridSim toolkit provides comprehensive support
  application scheduling simulations in Grid
  computing environment.
• GridSim has new features such as generating
  background traffic during an experiment,
  requesting network information during runtime and
  providing differentiated service for packets
  based on users Quality of Service (QoS)
  requirements.
• Our experiment has shown how GridSim can be used
  to simulate a medium-sized grid testbed.
• GridSim is available to download
• www.gridbus.org/gridsim/

24
Future Work

• We are planning to incorporate additional
  features into GridSim, such as
• having different types of routing algorithms,
  schedulers and reservation of network resources.
• adding other type of network building blocks like
  switches and domain gateways.
• support will be added for non work-conserving
  routers.
• planning an ability to design the network
  topology using scripts similar to ns-2.

25
Selected GridSim Users
