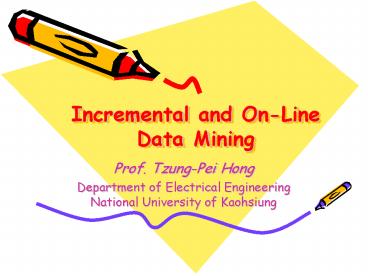

Incremental and On-Line Data Mining

• Prof. Tzung-Pei Hong
• Department of Electrical Engineering National
  University of Kaohsiung

2
Outline

• Introduction
• Apriori Mining Algorithm
• Incremental Mining
• FUP algorithm
• Negative border algorithm
• Pre-large itemset algorithm

3
Outline

• Multi-dimensional Online Mining
• Knowledge Warehouse
• Three-phase Online Association Rule Mining
  (TOARM)
• Negative-Border Online Mining (NOM)
• Lattice-based NOM (LNOM)
• Conclusion

4
Why Data Mining
How to arrange goods into supermarket?
5
Association Rules
IF bread is bought then milk is bought
6
The Role of Data Mining
Useful patterns
Transaction data
Data Mining
Knowledge and strategy
Preprocess data
7
Different Kinds of Knowledge

• Association rules
• Generalized association rules
• Sequential patterns
• Quantitative association rules
• Classification rules
• Clustering rules
• etc

8
Association Rules
IF bread is bought then milk is bought
9
Apriori Algorithm

• Proposed by Agrawal et al.
• Step1 Define minsup and minconf
• ex minsup50
• minconf50
• Step2 Find large itemsets
• Step3 Generate association rules

10
Example
Large itemsets
Scan Database
L
1
Itemset
Sup.
A
2
B
3
C
3
E
3
Scan Database
Scan Database
11
Example

12
Maintenance of Association Rules

• Insertion of new transactions

New transactions
Original database
?
13
Two Problems

• Problem 1
• Are large itemsets still large?
• e.g. Minsup50

As count2
As count0
New transactions (2 records)
Original database (4 records)
lt (42)503 (Minimum count)
14
Two Problems

• Problem 2
• Are small itemsets still small?
• e.g. Minsup50

Ds count1
Ds count2
New transactions (2 records)
Original database (4 records)
gt (42)503 (Minimum count)
15
Maintenance

• Intuition Re-mining for each data insertion

Updated database
Re-mining
1. Waste discovered information 2. Spend
computational time
16
Related Research

• FUP algorithm
• Negative border algorithms
• Pre-large itemset algorithm

17
FUP Algorithm

• Cheung et al. 1995
• For efficient incremental data mining
• Step 1 Record all large itemsets

18
Four Cases in FUP
19
FUP Algorithm

• Step 2 Process new transactions

Originally large itemsets
Re-calculating the updated item counts
Large itemsets in new transactions?
Originally small itemsets
Small itemsets in new transactions
Reduce rescanning database
20
Case 3 in FUP

• Original Small
• New Large
• Rescan the original database

Re-scanning original database
21
Negative Border

• The candidate itemsets without enough supports
• e.g. Negative 1-itemsets

?

22
Negative Border

• e.g. Negative 2-itemsets

?

• Negative border all negative itemsets

23
Negative Border Algorithm

• Pre-store all candidate itemsets
• Large itemsets
• Negative itemsets

24
Negative Border Algorithm

• Process candidates from new transactions
• Three cases
• Originally large itemset
• Originally Negative Itemset
• Calculate the counts directly
• e.g. D
• Others
• Rescan
• For Case 3 in FUP
• Reduce rescanning probability

25
Pre-Large Itemsets

• For efficiently handle Case 3 in FUP

26
Pre-Large Itemset

• Not truly large
• Acting like buffer
• Reduing the movement from large directly to small
  or vice verse.
• Lying between the lower and upper thresholds

Area of pre-large itemsets
Area of small itemsets
Area of large itemsets
27
Pre-Large Algorithm

• Record all large and pre-large itemsets in the
  original database
• Nine cases are generated

28
Results of Nine Cases
29
Safety Bound of Insertions

• For Case 7
• Small itemset in the original database,
• but large itemset in the new transactions
• To obtain a safety bound of insertions t
• If the number of new insertions gt t, then rescan
  the original database
• Otherwise, do nothing

Large itemsets area
Small itemsets area
Upper threshold
Lower threshold
30
Theoretical Foundation

• Let
• Su Upper support threshold
• Sl Low support threshold
• d Transaction number in the original database
• t Allowed insertion number for not rescanning
• the original database
• Theorem
• if
• then no rescan!

31
Example

• Let
• Su 60
• Sl 50
• d 100
• t

Safety bound t25
32
Proof
Is count of updated database
Is count of original database
Is count of new inserted transactions
33
Safety Bound of Lower Threshold

• To obtain a safety bound of threshold Sl
• Given fixed insertions t
• Derive the corresponding Sl
• If new insertion number gt t,
• then rescan the original database
• and re-adjust the Sl
• Otherwise, do nothing

34
Theoretical Foundation

• Theorem
• if
• then no rescan!
• Corollary
• if
• then no rescan

35
Example

• Let
• Su 60
• d 100
• t 10
• Sl

Safety bound Sl0.56
36
Example

• Let
• Su 60
• d 100
• t 10

37
Some Advantages

• From
• When the database grows larger,
• ?The allowed number of new insertions
• is also larger ?

38
Some Advantages

• From
• When the database grows larger,
• ?The allowed lower threshold Sl
• is closer to Su

39
Diagram

Re-calculating the updated item counts
lt safety bound
Originally small itemsets
gt safety bound
40
Proposed Algorithm

• Step1 record all originally large and pre-large
• itemsets
• Step2 calculate the safety bound
• Step3 scan the new transactions
• Step4 divide candidates in new transactions
• into three parts
• a. original large itemsets
• b. original pre-large itemsets
• c. small itemsets
• Step5 check whether the updated itemsets are
• large, pre-large, or small?
• Step6 if new transactions lt safety bound,
• do nothing,
• otherwise, rescan the original
  database

41
Experiments
42
Experiments
43
Experiments
44
Other Problems

• Deletion of old records

Original database
?
A,B,C,E BC,BE,CE BCE
Deletion
45
Other Problems

• Modification of old records

Original database
?
A,B,C,E BC,BE,CE BCE
Modification
46
Other Problems

• Sequential Patterns
• e.g.
• Customer 1 1000 BCD
• Customer 2 1100 BC
• Customer 1 1500 BCDE
• Customer 2 1700 EF
• Customer 1 BCD -gt BCDE
• Customer 2 BC -gt EF
• gt BC -gt E

47
Summary

• Pre-large concept
• Efficient incremental mining algorithms
• Retain features of FUP
• Avoiding re-computing large itemsets
• Focusing on newly inserted transactions
• Filtering the candidate itemsets
• Become increasingly efficient along with growth
  of database

48
Motivation for Online Mining

• Online Data mining
• Iterative
• Interactive
• Changing requirement
• e.g. varying threshold (e.g. minsup)
• e.g. changing data over time

49
Why Multi-Dimensional Online Mining

SimonBike company
Los Angeles branch
San Francisco branch
New York branch
50
Examples

• From Los Angeles and San Francisco in the first
  quarters of the latest five years
• The minimum support increasing from 5 to 10
• Popular combinations of products sold in July
  last year

51
Multidimensional Online Mining
Classic mining framework
Multidimensional online mining framework
52
Framework
Multidimensional pattern relation

• Mining

Underlying database or data warehouse

• Multidimensional
• online mining

2003/12 Los Angeles

2003/1
2003/10
MiningQuery 1
New York
Los Angeles


2003/2
2003/11
New block of data
Mining Query 2
New York
Los Angeles
? Data Insertion


2003/3
2003/12
Los Angeles
New York
53
Framework

• Assumption
• Data evolving in a systematic way
• Inserted or deleted in a block during a time
  interval
• e.g. midnight of a day
• e.g. a month
• Mining Knowledge Warehouse
• Storing mined information systematically and
  structurally
• Multidimensional pattern relation (MPR)

54
Multidimensional Pattern Relation
Assume Initial minimum support 5

Context (Circumstances)
Content (Mining Information)
55
Multidimensional Online Mining

• Three-phase Online Association Rule Mining
  (TOARM)
• Based on MPR
• Three phases
• Generation of candidate itemsets
• Pruning of candidate itemsets
• Generation of large itemsets

56
Phase 1

• Generation of candidate itemsets satisfying a
  mining request
• e.g. Find large itemsets satisfying minsup 5.5
  from data collected from CA in 1998/11 to 1998/12
• Selecting tuples satisfying contexts

v
v
v
v
57
Phase 1

• Generating candidates from these matched tuples
• Lemma For each candidate itemset x, there exists
  at least a matched tuple such that its support
  satisfies query support

Candidates A, B, C, AB
58
Phase 2

• Pruning of candidate itemsets
• Calculating upper-bound supports of candidates

gt Prune A
59
Phase 2
gt Send B to Phase 3
60
Phase 2
gt Keep C in large itemsets
gt Remove AB
0.053
61
Phase 3

• Generation of Large Itemsets
• Rescanning the blocks of candidate B for tuple
  3 and 5
• Obtaining their physical supports

62
Multi-Dimensional Online Mining

• Helping on-line decision support
• From only interested portion of data
• From different aspects
• e.g. time, location, threshold

63
Extended MPR (EMPR)

• Keeping additional negative-border information

e.g. Initial minimum support 5
64
Negative-Border Online Mining (NOM)

• Based on EMPR
• TOARM ? NOM
• Appearing Count
• Frequent pattern
• Negative pattern
• Not Appearing Count
• TOARM -gt ns 1
• NOM -gt min(ns -1, nmin(sx))
• x subset of x

?
65
Example

• NOM -gt min(ns -1, nmin(sx))
• x subset of x
• Example

AC Candidate tuple 1 n17 tuple 2 n2min(5,
2) n22
?
66
Lattice-based NOM (LNOM)

• Implementing NOM more efficiently
• Using the lattice data structure
• Using hashing techniques
• spanning-tree-count-calculating (STCC) algorithm

67
Experiments

• In Java
• On a workstation
• with dual XEON (2.8GHz) processors
• with 2G main memory.
• RedHat 9.0
• Dataset
• Several synthetic datasets (IBM data generator)
• A real-world dataset, BMS-POS (KDDCUP 2000)

68
Notation
69
Data Sets
70
Experiment TOARM

• Performance comparison synthetic datasets

71
Experiment TOARM

• Performance comparison BMS-POS dataset

72
Experiment TOARM

• Scalability comparison

73
Experiment TOARM vs. NOM

• Performance comparison synthetic datasets

74
Experiment TOARM vs. NOM

• Execution time in Phase 3
• NOM lt TOARM
• Execution time in Phases 1 and 2
• NOM gt TOARM
• NOM over TOARM
• Small item set
• Large data size

75
Experiment NOM vs. LNOM

• Performance comparison synthetic datasets

76
Experiment NOM vs. LNOM

• Performance comparison BMS-POS dataset

77
Summary

• Multi-dimensional online mining
• Effectively utilizing patterns previously mined
• Knowledge warehouse
• Multidimensional pattern relation
• Extended multidimensional Pattern Relation
• Mining approaches
• TOARM
• NOM
• LNOM
• Experimental results
• Showing good performance

78
Thank You
