CPE 626 The SystemC Language

1

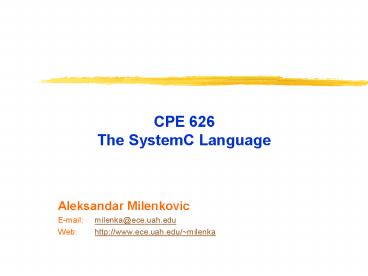

CPE 626 The SystemC Language

• Aleksandar Milenkovic
• E-mail milenka_at_ece.uah.edu
• Web http//www.ece.uah.edu/milenka

2
Outline

• Motivation for SystemC
• What is SystemC?
• Modules
• Processes

3
Standard Methodology for ICs

• System-level designers write a C or C model
• Written in a stylized, hardware-like form
• Sometimes refined to be more hardware-like
• C/C model simulated to verify functionality
• Parts of the model to be implemented in hardware
  are given to Verilog/VHDL coders
• Verilog or VHDL specification written
• Models simulated together to test equivalence
• Verilog/VHDL model synthesized

4
Designing Big Digital Systems

• Current conditions
• Every system company was doing this differently
• Every system company used its own simulation
  library
• System designers dont know Verilog or VHDL
• Verilog or VHDL coders dont understand system
  design
• Problems with standard methodology
• Manual conversion from C to HDL
• Error prone and time consuming
• Disconnect between system model and HDL model
• C model becomes out of date as changes are made
  only to the HDL model
• System testing
• Tests used for C model cannot be run against HDL
  model gt they have to be converted to the HDL
  environment

5
Idea of SystemC

• C and C are being used as ad-hoc modeling
  languages
• Why not formalize their use?
• Why not interpret them as hardware specification
  languages just as Verilog and VHDL were?
• SystemC developed at Synopsys to do just this

6
SystemC Design Methodology

• Refinement methodology
• Design is slowly refined in small sections to
  add necessary hardware and timing constructs
• Written in a single language
• higher productivity due to modeling at a higher
  level
• testbenches can be reusedsaving time
• Future releases will have constructs to model
  RTOS

7
What Is SystemC?

• A subset of C that models/specifies
  synchronous digital hardware
• A collection of simulation libraries that can be
  used to run a SystemC program
• A compiler that translates the synthesis
  subset of SystemC into a netlist

8
What Is SystemC?

• Language definition is publicly available
• Libraries are freely distributed
• Compiler is an expensive commercial product
• See www.systemc.org for more information

9
Quick Overview

• A SystemC program consists of module definitions
  plus a top-level function that starts the
  simulation
• Modules contain processes (C methods) and
  instances of other modules
• Ports on modules define their interface
• Rich set of port data types (hardware modeling,
  etc.)
• Signals in modules convey information between
  instances
• Clocks are special signals that run periodically
  and can trigger clocked processes
• Rich set of numeric types (fixed and arbitrary
  precision numbers)

10
Modules

• Hierarchical entity
• Similar to Verilogs module
• Actually a C class definition
• Simulation involves
• Creating objects of this class
• They connect themselves together
• Processes in these objects (methods) are called
  by the scheduler to perform the simulation

11
Modules
SC_MODULE(mymod) // struct mymod sc_module
/ port definitions / / signal definitions
/ / clock definitions / / storage and
state variables / / process definitions /
SC_CTOR(mymod) / Instances of processes
and modules /
12
Ports

• Define the interface to each module
• Channels through which data is communicated
• Port consists of a direction
• input sc_in
• output sc_out
• bidirectional sc_inout
• and any C or SystemC type

SC_MODULE(mymod) sc_inltboolgt load, read
sc_inoutltintgt data sc_outltboolgt full /
rest of the module /
13
Signals

• Convey information between modules within a
  module
• Directionless module ports define direction of
  data transfer
• Type may be any C or built-in type

SC_MODULE(mymod) / port definitions /
sc_signalltsc_uintlt32gt gt s1, s2 sc_signalltboolgt
reset / / SC_CTOR(mymod) /
Instances of modules that connect to the signals
/
14
Instances of Modules

• Each instance is a pointer to an object in the
  module

Connect instances ports to signals
SC_MODULE(mod1) SC_MODULE(mod2)
SC_MODULE(foo) mod1 m1 mod2 m2
sc_signalltintgt a, b, c SC_CTOR(foo) m1
new mod1(i1) (m1)(a, b, c) m2 new
mod2(i2) (m2)(c, b)
15
Positional Connection
// filter.h include "systemc.h // systemC
classes include "mult.h // decl. of
mult include "coeff.h // decl. of
coeff include "sample.h // decl. of
sample SC_MODULE(filter) sample s1 //
pointer declarations coeff c1 mult m1
// signal declarations sc_signalltsc_uintlt32gt gt
q, s, c SC_CTOR(filter) // constructor
s1 new sample ("s1") // create obj.
(s1)(q,s) // signal mapping c1 new coeff
("c1") (c1)(c) m1 new mult ("m1")
(m1)(s,c,q)
16
Named Connection
include "systemc.h // systemC classes include
"mult.h // decl. of mult include "coeff.h
// decl. of coeff include "sample.h // decl.
of sample SC_MODULE(filter) sample s1
coeff c1 mult m1 sc_signalltsc_uintlt32gt gt
q, s, c SC_CTOR(filter) s1 new sample
("s1") s1-gtdin(q) // din of s1 to signal q
s1-gtdout(s) // dout to signal s c1 new
coeff ("c1") c1-gtout(c) // out of c1 to
signal c m1 new mult ("m1") m1-gta(s)
// a of m1 to signal s m1-gtb(c) // b of m1
to signal c m1-gtq(q) // q of m1 to signal c

17
Internal Data Storage

• Local variables to store data within a module
• May be of any legal C, SystemC, or user-defined
  type
• Not visible outside the module unless it is made
  explicitly

// count.h include "systemc.h" SC_MODULE(count)
sc_inltboolgt load sc_inltintgt din // input
port sc_inltboolgt clock // input port
sc_outltintgt dout // output port int count_val
// internal data storage void count_up()
SC_CTOR(count) SC_METHOD(count_up) //Method
process sensitive_pos ltlt clock
// count.cc include "count.h" void
countcount_up() if (load) count_val
din else // could be count_val
count_val count_val 1 dout count_val
18
Processes

• Only thing in SystemC that actually does anything
• Functions identified to the SystemC kernel and
  called whenever signals these processes are
  sensitive to change value
• Statements are executed sequentially until the
  end of the process occurs, or the process is
  suspended using wait function
• Very much like normal C methods Registered
  with the SystemC kernel
• Like Verilogs initial blocks

19
Processes (contd)

• Processes are not hierarchical
• no process can call another process directly
• can call other methods and functions that are not
  processes
• Have sensitivity lists
• signals that cause the process to be invoked,
  whenever the value of a signal in this list
  changes
• Processes cause other processes to execute by
  assigning new values to signals in the
  sensitivity lists of the processes
• To trigger a process, a signal in the sensitivity
  list of the process must have an event occur

20
Three Types of Processes
Determines how the process is called and executed

• METHOD
• Models combinational logic
• THREAD
• Models testbenches
• CTHREAD
• Models synchronous FSMs

21
METHOD Processes

• Triggered in response to changes on inputs
• Cannot store control state between invocations
• Designed to model blocks of combinational logic

22
METHOD Processes
Process is simply a method of this class
SC_MODULE(onemethod) sc_inltboolgt in
sc_outltboolgt out void inverter()
SC_CTOR(onemethod) SC_METHOD(inverter)
sensitive(in)
Instance of this process created
and made sensitive to an input
23
METHOD Processes

• Invoked once every time input in changes
• Should not save state between invocations
• Runs to completion should not contain infinite
  loops
• Not preempted

void onemethodinverter() bool internal
internal in out internal
Read a value from the port
Write a value to an output port
24
THREAD Processes

• Triggered in response to changes on inputs
• Can suspend itself and be reactivated
• Method calls wait() function that suspends
  process execution
• Scheduler runs it again when an event occurs on
  one of the signals the process is sensitive to
• Designed to model just about anything

25
THREAD Processes
Process is simply a method of this class
SC_MODULE(onemethod) sc_inltboolgt in
sc_outltboolgt out void toggler()
SC_CTOR(onemethod) SC_THREAD(toggler)
sensitive ltlt in
Instance of this process created
alternate sensitivity list notation
26
THREAD Processes

• Reawakened whenever an input changes
• State saved between invocations
• Infinite loops should contain a wait()

Relinquish control until the next change of a
signal on the sensitivity list for this process
void onemethodtoggler() bool last false
for () last in out last wait()
last in out last wait()
27
CTHREAD Processes

• Triggered in response to a single clock edge
• Can suspend itself and be reactivated
• Method calls wait to relinquish control
• Scheduler runs it again later
• Designed to model clocked digital hardware

28
CTHREAD Processes
SC_MODULE(onemethod) sc_in_clk clock
sc_inltboolgt trigger, in sc_outltboolgt out
void toggler() SC_CTOR(onemethod)
SC_CTHREAD(toggler, clock.pos())
Instance of this process created and relevant
clock edge assigned
29
CTHREAD Processes

• Reawakened at the edge of the clock
• State saved between invocations
• Infinite loops should contain a wait()

Relinquish control until the next clock cycle in
which the trigger input is 1
void onemethodtoggler() bool last false
for () wait_until(trigger.delayed()
true) last in out last wait()
last in out last wait()
Relinquish control until the next clock cycle
30
A CTHREAD for Complex Multiply
struct complex_mult sc_module sc_inltintgt
a, b, c, d sc_outltintgt x, y sc_in_clk
clock void do_mult() for () x
a c - b d wait() y a d
b c wait()
SC_CTOR(complex_mult) SC_CTHREAD(do_mult,
clock.pos())
31
Put It All Together
Process Type SC_METHOD SC_THREAD SC_CTHREAD
Exec. Trigger Signal Events Signal Events Clock Edge
Exec. Suspend NO YES YES
Infinite Loop NO YES YES
Suspend / Resume by N.A. wait() wait() wait_until()
Construct Sensitize Method SC_METHOD(call_back) sensitive(signals) sensitive_pos(signals) sensitive_neg(signals) SC_THREAD(call_back) sensitive(signals) sensitive_pos(signals) sensitive_neg(signals) SC_CTHREAD( call_back, clock.pos()) SC_CTHREAD( call_back, clock.neg())
32
Watching

• SC_THREAD and SC_CTHREAD processes typicallyhave
  infinite loops that will continuously execute
• Use watching construct to jump out of the loop
• Watching construct will monitor a specified
  condition
• When condition occurs control is transferred
  from the current execution point to the
  beginning of the process

33
Watching An Example
// datagen.h include "systemc.h" SC_MODULE(data_g
en) sc_in_clk clk sc_inoutltintgt data
sc_inltboolgt reset void gen_data()
SC_CTOR(data_gen) SC_CTHREAD(gen_data,
clk.pos()) watching(reset.delayed() true)

// datagen.cc include "datagen.h" void
gen_data() if (reset true) data
0 while (true) data data 1
wait() data data 2 wait() data
data 4 wait()
Watching expressions are tested at the wait() or
wait_until() calls. All variables defined locally
will lose their value on the control exiting.
34
Local Watching

• Allows us to specify exactly which section of
  the process is watching which signal, and where
  event handlers are located

W_BEGIN // put the watching declarations
here watching(...) watching(...) W_DO // This
is where the process functionality
goes ... W_ESCAPE // This is where the handlers
// for the watched events go if (..)
... W_END
35
SystemC Types

• SystemC programs may use any C type along with
  any of the built-in ones for modeling systems
• SystemC Built-in Types
• sc_bit, sc_logic
• Two- and four-valued single bit
• sc_int, sc_unint
• 1 to 64-bit signed and unsigned integers
• sc_bigint, sc_biguint
• arbitrary (fixed) width signed and unsigned
  integers
• sc_bv, sc_lv
• arbitrary width two- and four-valued vectors
• sc_fixed, sc_ufixed
• signed and unsigned fixed point numbers

36
Fixed and Floating Point Types

• Integers
• Precise
• Manipulation is fast and cheap
• Poor for modeling continuous real-world behavior
• Floating-point numbers
• Less precise
• Better approximation to real numbers
• Good for modeling continuous behavior
• Manipulation is slow and expensive
• Fixed-point numbers
• Worst of both worlds
• Used in many signal processing applications

37
Integers, Floating-point, Fixed-point
Decimal (binary) point

• Integer
• Fixed-point
• Floating-point

? 2
38
Using Fixed-Point Numbers

• High-level models usually use floating-point for
  convenience
• Fixed-point usually used in hardware
  implementation because theyre much cheaper
• Problem the behavior of the two are different
• How do you make sure your algorithm still works
  after its been converted from floating-point to
  fixed-point?
• SystemCs fixed-point number classes facilitate
  simulating algorithms with fixed-point numbers

39
SystemCs Fixed-Point Types

• sc_fixedlt8, 1, SC_RND, SC_SATgt fpn
• 8 is the total number of bits in the type
• 1 is the number of bits to the left of the
  decimal point
• SC_RND defines rounding behavior
• SC_SAT defines saturation behavior

40
Rounding

• What happens when your result doesnt land
  exactly on a representable number?
• Rounding mode makes the choice

41
SC_RND

• Round up at 0.5
• What you expect?

42
SC_RND_ZERO

• Round toward zero
• Less error accumulation

43
SC_TRN

• Truncate
• Easiest to implement

44
Overflow

• What happens if the result is too positive or too
  negative to fit in the result?
• Saturation? Wrap-around?
• Different behavior appropriate for different
  applications

45
SC_SAT

• Saturate
• Sometimes desired

46
SC_SAT_ZERO

• Set to zero
• Odd behavior

47
SC_WRAP

• Wraparound
• Easiest to implement

48
SystemC Semantics

• Cycle-based simulation semantics
• Resembles Verilog, but does not allow the
  modeling of delays
• Designed to simulate quickly and resemble most
  synchronous digital logic

49
Clocks

• The only thing in SystemC that has a notion of
  real time
• Only interesting part is relative sequencing
  among multiple clocks
• Triggers SC_CTHREAD processes
• or others if they decided to become sensitive to
  clocks

50
Clocks

• sc_clock clock1(myclock, 20, 0.5, 2, false)

Time Zero
Initial value is false
20
0.5 of 20
2
51
SystemC 1.0 Scheduler

• Assign clocks new values
• Repeat until stable
• Update the outputs of triggered SC_CTHREAD
  processes
• Run all SC_METHOD and SC_THREAD processes whose
  inputs have changed
• Execute all triggered SC_CTHREAD methods. Their
  outputs are saved until next time

52
Scheduling

• Clock updates outputs of SC_CTHREADs
• SC_METHODs and SC_THREADs respond to this change
  and settle down
• Bodies of SC_CTHREADs compute the next state

Sync.
Clock
Async.
53
Why Clock Outputs?

• Why not allow Mealy-machine-like behavior in
  FSMs?
• Difficult to build large, fast systems
  predictably
• Easier when timing worries are per-FSM
• Synthesis tool assumes all inputs arrive at the
  beginning of the clock period and do not have to
  be ready
• Alternative would require knowledge of inter-FSM
  timing

54
Implementing SystemC

• Main trick is implementing SC_THREAD and
  SC_CTHREADs ability to call wait()
• Implementations use a lightweight threads package
• / /
• wait()
• / /

Instructs thread package to save current
processor state (register, stack, PC, etc.) so
this method can be resumed later
55
Implementing SystemC

• Other trick is wait_until()
• wait_until(continue.delayed() true)
• Expression builds an object that can check the
  condition
• Instead of context switching back to the process,
  scheduler calls this object and only runs the
  process if the condition holds

56
Determinism in SystemC

• Easy to write deterministic programs in SystemC
• Dont share variables among processes
• Communicate through signals
• Dont try to store state in SC_METHODs
• Possible to introduce nondeterminism
• Share variables among SC_CTHREADs
• They are executed in nondeterministic order
• Hide state in SC_METHODs
• No control over how many times they are invoked
• Use nondeterministic features of C/C

57
Synthesis Subset of SystemC

• At least two
• Behavioral Subset
• Implicit state machines permitted
• Resource sharing, binding, and allocation done
  automatically
• System determines how many adders you have
• Register-transfer-level Subset
• More like Verilog
• You write a , you get an adder
• State machines must be listed explicitly

58
Do People Use SystemC?

• Not as many as use Verilog or VHDL
• Growing in popularity
• People recognize advantage of being able to share
  models
• Most companies were doing something like it
  already
• Use someone elses free libraries? Why not?

59
Conclusions

• C dialect for modeling digital systems
• Provides a simple form of concurrency
• Cooperative multitasking
• Modules
• Instances of other modules
• Processes

60
Conclusions

• SC_METHOD
• Designed for modeling purely functional behavior
• Sensitive to changes on inputs
• Does not save state between invocations
• SC_THREAD
• Designed to model anything
• Sensitive to changes
• May save variable, control state between
  invocations
• SC_CTHREAD
• Models clocked digital logic
• Sensitive to clock edges
• May save variable, control state between
  invocations

61
Conclusions

• Perhaps even more flawed than Verilog
• Verilog was a hardware modeling language forced
  into specifying hardware
• SystemC forces C, a software specification
  language, into modeling and specifying hardware
• Will it work? Time will tell.

62
An Example Process
Determines how the process is called and executed
// dff.cc include "dff.h" void dffdoit()
dout din
// dff.h include "systemc.h" SC_MODULE(dff)
sc_inltboolgt din // data input sc_inltboolgt
clock // clock input sc_outltboolgt dout //
data output void doit() // method in the
module SC_CTOR(dff) // constructor
SC_METHOD(doit) // doit type is SC_METHOD //
method will be called whenever a //
positive edge occurs on port clock
sensitive_pos ltlt clock
