WP4

1

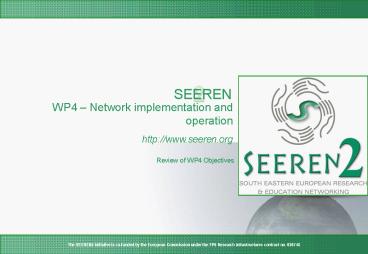

WP4 Network implementation and operation

• Review of WP4 Objectives

2
Planned Activities

• A4.1 - Define operational procedures
• February 2006
• GRNET Costas Kotsokalis
• A4.2 - Define acceptance tests
• January 2006 March 2006
• RoEduNet Octavian Rusu
• A4.3 - Deliver equipment and connections
• January 2006 May 2006
• A4.4 - Adjust equipment configuration
• January 2006 September 2006
• GRNET Yannis Mitsos
• A4.5 - Technical support in stable operation
• January 2006 March 2007 (end of the project)
• UoB Slavko Gajin

3
Planned effort per activities
GRNET DANTE TERENA NIIFI ROEDUNET ISTF AMREJ MARNET INIMA BIHARNET MREN
A4.1 0.4 0 0 0.2 0.2 0.2 0.4 0.4 0.4 0.4 0.4
A4.2 0.4 0 0 0.1 0.1 0.1 1 1 1 1 1
A4.3 0.4 0 0 0.1 0.1 0.1 1 1 1 1 1
A4.4 1.8 0 0 0.6 0.6 0.6 1.2 1.2 1.2 1.2 1.2
A4.5 9 0 0 2 2 2 8.4 8.4 8.4 8.4 2.4

• A4.1 - Define operational procedures
• A4.2 - Define acceptance tests
• A4.3 - Deliver equipment and connections
• A4.4 - Adjust equipment configuration
• A4.5 - Technical support in stable operation

4
Deliverables

• D9 and D12
• D9 - Acceptance tests specification and network
  implementation (confidential)
• a. RoEduNet 4/1/2006 Octavian Rusu, end of
  A4.2 - Define acceptance tests (split a and b)
• b. RoEduNet 10/1/2006 Octavian Rusu A4.4 -
  Adjust equipment configuration
• D12 - SEEREN2 management framework and VNOC
  operations (public)
• a. RoEduNet 11/1/2006 Octavian Rusu start of
  operation for the entire topology RoEduNet
  11/1/2007 Octavian Rusu

5
A4.1 - Define operational procedures

• Responsible person Costas Kotsokalis GRNET
• February 2006 March 2006
• Objectives
• Define operational procedures for VNOC operation
• Input
• Based on SEEREN experience
• Network topology
• Special questionnaire about NRENs operational
  procedures (next week??)
• Output
• Information flow between participants
• Access rights to equipments for participants
• Access rights to monitoring tools for public and
  participants
• TTS operation

6
A4.1 - Define operational procedures - Virtual
NOC Framework

• NME
• Network Management Entity
• Yannis and Costas
• HelpDesk
• HelpDesk RT email to APMs
• SIE
• Service Implementer Entity
• SEEREN NOC
• Network Operation Center
• APMs
• Access Port Managers
• Operator
• Carrier/Service Providers
• PSC Project Steering Committee

PSC
7
A4.1 - Define operational procedures VNOC
Network Management Entity

• The technical core of the management team for the
  entire network
• proposes the main network policies, including the
  network evolution and upgrades of equipments and
  services to PSC
• performs the high level design of all services
• decides about special solutions and services by
  appropriate Service Implementer Entity (SIE)
• coordinates the Help Desk activities
• responsible for the technical integrity of the
  services provided on the network
• implements new services using configuration
  solutions provided by SIEs
• technically defines and modifies network
  policies
• plans network development
• operates the Help Desk, which interacts with
• APMs
• Operators, to provide fault isolation and
  management of the links and/or services
  supervised by a different authority
• SIEs, during testing period for new services.
• operates the Trouble Ticket System

8
A4.1 - Define operational procedures VNOC SIEs
Service Implementer Entities

• Specialized task teams distributed in the service
  dimension
• provide studies for proposed services by NME,
  specifying issues of interest for the network
  objectives and policies
• provide configuration files for network equipment
  to implement the proposed services
• interact with NME during service activation
• report through the Help Desk problems related to
  a service
• monitor service operation using network
  management tools during the implementation period.

9
A4.1 - Define operational procedures VNOC APMs
- Access Port Managers

• Manager of geographically distributed teams (one
  for each NOC) responsible for the local NOC
  activities
• monitor the network operation in their area of
  authority
• configure the local communications equipment
• monitor the implementation of the services within
  their NOCs
• interact with NME to maintain the centralized
  management system
• interact with the users at the NOC level

10
A4.1 - Define operational procedures VNOC
Advantages

• Centralized character for network operation
• all information flows through the NME
• Distributed and hierarchical character achieved
  trough
• APMs
• provide network management and user support
  within a geographical area of authority
• SIEs
• responsible for particular services
  implementation on the entire network.
• interaction between SIEs and APMs is handled by
  NME providing consistency of all operations.
• operation of NOCs and even the service
  implementation procedures are distributed and can
  be outsourced
• Establishes the responsibilities of each unit
  involved in the management process
• Precise split of functions to different groups
  and users
• Can be implemented using a mix of distributed and
  centralized strategies
• Implementation software tools centralized and
  distributed components

11
4A.2 Define acceptance tests

• Responsible person Octavian RUSU - RoEduNet
• February 2006 March 2006
• Objectives
• Define a set of acceptance tests for links,
  equipments and for the final topology
• Define a procedure for the tests and establish
  the necessary conditions
• Input
• SLA
• Network topology
• Connectivity solutions
• Equipment list for each NOC
• Output
• D 09a - Acceptance tests specification and
  network implementation 4/1/2006
• Accept the connections !

12
Specification of Acceptance Tests

• Connectivity
• Basic connectivity
• Bandwidth
• Packet loss
• Routing
• BGP configuration
• QoS
• One way delay
• Jitter
• Packet reordering
• Shaping ??

13
Work Station Configuration

• PC
• Rude/Crude
• NEW MGEN to be studied
• Configuration
• Gigabit Ethernet network card
• Switched environment or direct connection to the
  router
• GNU/Linux operating system, kernel version 2.4.18
  or later
• iputils package
• Python
• NTP client package

14
Connectivity

• End to end test for each connection
• Basic connectivity
• Classic ping command
• Executed from the router (extended ping)
• Bandwidth, Packet and QoS
• Using rude/crude as in SEEREN
• Different packet size
• 64, 128, 256, 512, 1024, 1280, 1500 Bytes

• Output
• No. of packets received
• No of packet loss
• Total Bytes
• Average delay
• Jitter
• Max jitter
• Throughput
• Various graphs
• Conditions to accept the connection
• Based on packet loss?

15
Routing

• BGP configuration
• List of BGP neighbours
• To be completed
• Sofia, Belgrade and Budapest most interesting
  and challenging configurations
• BGP verification
• sh ip bgp summary
• sh ip bgp
• sh ip bgp neigh A.B.C.D advertised-routes

16
A4.3 - Deliver equipment and connections

• January 2006 May 2006
• Responsible Third parties
• Objectives
• Deploying the initial configuration of links and
  equipment for all participating NRENs, according
  to the project goals
• Initial configuration should pass the acceptance
  tests
• Network monitoring tools deployment (SNMP,
  FlowScan etc.)
• Input
• Tender evaluation results
• Initial configuration
• Network Topology
• Output
• Final working topology
• Final equipments configurations
• Working set of management tools

17
A4.3 - Deliver equipment and connections
Management tools

• NetIS - The Network Information System -
  developed by AMREJ and hosted at Belgrade
  University Computing Center
• Nagios - host, service and network monitoring
  software running on central management server
• Looking Glass Tools for fast web-based
  (read-only) access to the routers
• Helpdesk and Trouble Ticket System RT
• The SEEREN Helpdesk provides services only to the
  SEEREN NREN NOCs.
• Other Tools
• RANCID - used for the CVS repository of router
  configuration
• SmokePing - network latency monitor which works
  in a way that is similar to MRTG
• WeatherMap - perl tool that displays in a web
  page the utilization of the network links
• Cricket
• NEW OpenNMS

18
A4.4 - Adjust equipment configuration

• April 2006 September 2006
• Responsible person Yannis Mitsos - GRNET
• Objectives
• Adjusting the equipment and link configuration in
  order to improve performance and solve different
  issues and incompatibilities
• Network performance analysis (traffic monitoring
  and optimization)
• Input
• Tender evaluation results D 06
• Network topology D07
• Equipments type and hardware configurations
• NRENs special requirements (if any)
• Output
• Initial network performance analysis
• Final equipments configurations
• SEEREN2 management framework and VNOC operations
  - D12a/b
