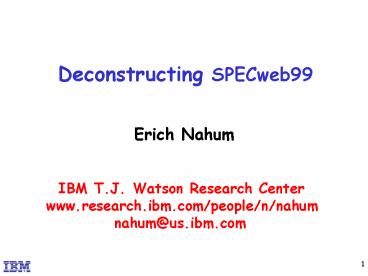

Deconstructing SPECweb99

• Erich Nahum

IBM T.J. Watson Research Center www.research.ibm
.com/people/n/nahum nahum_at_us.ibm.com
2
Talk Overview

• Workload Generators
• SPECweb99
• Methodology
• Results
• Summary and Conclusions

3
Why Workload Generators?

• Allows stress-testing and bug-finding
• Gives us some idea of server capacity
• Allows us a scientific process to compare
  approaches
• e.g., server models, gigabit adaptors, OS
  implementations
• Assumption is that difference in testbed
  translates to some difference in real-world
• Allows the performance debugging cycle

Measure
Reproduce
Fix and/or improve
Find Problem
The Performance Debugging Cycle
4
How does W. Generation Work?

• Many clients, one server
• match asymmetry of Internet
• Server is populated with some kind of synthetic
  content
• Simulated clients produce requests for server
• Master process to control clients, aggregate
  results
• Goal is to measure server
• not the client or network
• Must be robust to conditions
• e.g., if server keeps sending 404 not found, will
  clients notice?

Responses
Requests
5
Problems with Workload Generators

• Only as good as our understanding of the traffic
• Traffic may change over time
• generators must too
• May not be representative
• e.g., are file size distributions from IBM.com
  similar to mine?
• May be ignoring important factors
• e.g., browser behavior, WAN conditions, modem
  connectivity
• Still, useful for diagnosing and treating
  problems

6
What Server Workload Generators Exist?

• Many. In order of publication
• WebStone (SGI)
• SPECweb96 (SPEC)
• Scalable Client (Rice Univ.)
• SURGE (Boston Univ.)
• httperf (HP Labs)
• SPECweb99 (SPEC)
• TPC-W (TPC)
• WaspClient (IBM)
• WAGON (IBM)
• Not to mention those for proxies (e.g. polygraph)
• Focus of this talk SPECweb99

7
Why SPECweb99?

• Has become the de-facto standard used in
  Industry
• 141 submissions in 3 years on the SPEC web site
• Hardware Compaq, Dell, Fujitsu, HP, IBM, Sun
• OSes AIX, HPUX, Linux, Solaris, Windows NT
• Servers Apache, IIS, Netscape, Tux, Zeus
• Used within corporations for performance,
  testing, and marketing
• E.g., within IBM, used by AIX, Linux, and 390
  groups
• Begs the question how realistic is it?

8
Server Workload Characterization

• Over the years, many observations have been made
  about Web server behavior
• Request methods
• Response codes
• Document Popularity
• Document Sizes
• Transfer Sizes
• Protocol use
• Inter-arrival times
• How well does SPECweb99 capture these
  characteristics?

9
History SPECweb96

• SPEC Systems Performance Evaluation Consortium
• Non-profit group with many benchmarks (CPU, FS)
• Pay for membership, get source code
• First attempt to get somewhat representative
• Based on logs from NCSA, HP, Hal Computers
• 4 classes of files
• Poisson distribution within each class

10
SPECweb96 (cont)

• Notion of scaling versus load
• number of directories in data set size doubles as
  expected throughput quadruples (sqrt(throughput/5)
  10)
• requests spread evenly across all application
  directories
• Process based WG
• Clients talk to master via RPC's
• Does only GETS, no keep-alive
• www.spec.org/osg/web96

11
Evolution SPECweb99

• In response to people "gaming" benchmark, now
  includes rules
• IP maximum segment lifetime (MSL) must be at
  least 60 seconds
• Link-layer maximum transmission unit (MTU) must
  not be larger than 1460 bytes (Ethernet frame
  size)
• Dynamic content may not be cached
• not clear that this is followed
• Servers must log requests.
• W3C common log format is sufficient but not
  mandatory.
• Resulting workload must be within 10 of target.
• Error rate must be below 1.
• Metric has changed
• now "number of simultaneous conforming
  connections rate of a connection must be
  greater than 320 Kbps

12
SPECweb99 (cont)

• Directory size has changed
• (25 (400000/122000) simultaneous conns) /
  5.0)
• Improved HTTP 1.0/1.1 support
• Keep-alive requests (client closes after N
  requests)
• Cookies
• Back-end notion of user demographics
• Used for ad rotation
• Request includes user_id and last_ad
• Request breakdown
• 70.00 static GET
• 12.45 dynamic GET
• 12.60 dynamic GET with custom ad rotation
• 04.80 dynamic POST
• 00.15 dynamic GET calling CGI code

13
SPECweb99 (cont)

• Other breakdowns
• 30 HTTP 1.0 with no keep-alive or persistence
• 70 HTTP 1.1 with keep-alive to "model"
  persistence
• still has 4 classes of file size with Poisson
  distribution
• supports Zipf popularity
• Client implementation details
• Master-client communication uses sockets
• Code includes sample Perl code for CGI
• Client configurable to use threads or processes
• Much more info on setup, debugging, tuning
• All results posted to web page,
• including configuration back end code
• www.spec.org/osg/web99

14
Methodology

• Take a log from a large-scale SPECweb99 run
• Take a number of available server logs
• For each characteristic discussed in the
  literature
• Show what SPECweb99 does
• Compare to results from the literature
• Compare to results from a set of sample server
  logs
• Render judgment on how well SPECweb99 does

15
Sample Logs for Illustration
Well use statistics generated from these logs as
examples.
16
Talk Overview

• Workload Generators
• SPECweb99
• Methodology
• Results
• Summary and Conclusions

17
Request Methods

• AW96, AW00, PQ00, KR01 majority are GETs, few
  POSTs
• SPECweb99 No HEAD request, too many POSTS

18
Response Codes

• AW96, AW00, PQ00, KR01 Most are 200s, next
  304s
• SPECweb99 doesnt capture anything but 200 OK

19
Resource Popularity

• p(r) C/ralpha (alpha 1 true Zipf others
  Zipf-like")
• Consistent with CBC95, AW96, CB96, PQ00, KR01
• SPECweb99 does a good job here with alpha 1

20
Resource (File) Sizes

• Lognormal body, consistent with results from
  AW96, CB96, KR01.
• SPECweb99 curve is sparse, 4 distinct regions

21
Tails of the File Size

• AW96, CB96 sizes have Pareto tail Downey01
  Sizes are lognormal.
• SPECweb99 tail only goes to 900 KB (vs 10 MB for
  others)

22
Response (Transfer) Sizes

• Lognormal body, consistent with CBC95, AW96,
  CB96, KR01
• SPECweb99 doesnt capture zero-byte transfers
  (304s)

23
Transfer Sizes w/o 304s

• When 304s removed, SPECweb99 much closer

24
Tails of the Transfer Size

• SPECweb99 tail is neither lognormal nor pareto
• Again, max transfer is only 900 KB

25
Inter-Arrival Times

• Literature gives exponential distr. for session
  arrivals
• KR01 Request inter-arrivals are pareto
• Here we look at request inter-arrivals

26
Tails of Inter-Arrival Times

• SPECweb99 has pareto tail
• Not all others do, but may be due to truncation
• (e.g. log duration of only one day)

27
HTTP Version

• Over time, more and more requests are served
  using 1.1
• But SPECweb99 is much higher than any other log
• Literature doesnt look at this, so no judgments

28
Summary and Conclusions

• SPECweb99 has a mixed record depending on
  characteristic
• Methods OK
• Response codes bad
• Document popularity good
• File sizes OK to bad
• Transfer sizes bad
• Inter-arrival times good
• Main problems are
• Needs to capture conditional GETs with IMS for
  304s
• Better file size distribution (smoother, larger)

29
Future Work

• Several possibilities for future work
• Compare logs with SURGE
• More detail on HTTP 1.1 (requires better workload
  characterization, e.g. packet traces)
• Dynamic content (e.g., TPC-W) (again, requires
  workload characterization)
• Latter 2 will not be easy due to privacy,
  competitive concerns

30
Probability

• Graph shows 3 distributions with average 2.
• Note average ? median in some cases !
• Different distributions have different weight
  in tail.

31
Important Distributions

• Some Frequently-Seen Distributions
• Normal
• (avg. sigma, variance mu)
• Lognormal
• (x gt 0 sigma gt 0)
• Exponential
• (x gt 0)
• Pareto
• (x gt k, shape a, scale k)

32
Probability Refresher

• Lots of variability in workloads
• Use probability distributions to express
• Want to consider many factors
• Some terminology/jargon
• Mean average of samples
• Median half are bigger, half are smaller
• Percentiles dump samples into N bins
• (median is 50th percentile number)
• Heavy-tailed
• As x-gtinfinity

33
Session Inter-Arrivals

• Inter-arrival time between successive requests
• Think time"
• difference between user requests vs. ALL requests
• partly depends on definition of boundary
• CB96 variability across multiple timescales,
  "self-similarity", average load very different
  from peak or heavy load
• SCJO01 log-normal, 90 less than 1 minute.
• AW96 independent and exponentially distributed
• KR01 session arrivals follow poisson
  distribution, but requests follow pareto with
  a1.5

34
Protocol Support

• IBM.com 2001 logs
• Show roughly 53 of client requests are 1.1
• KA01 study
• 92 of servers claim to support 1.1 (as of Sep
  00)
• Only 31 actually do most fail to comply with
  spec
• SCJO01 show
• Avg 6.5 requests per persistent connection
• 65 have 2 connections per page, rest more.
• 40-50 of objects downloaded by persistent
  connections

Appears that we are in the middle of a slow
transition to 1.1
35
WebStone

• The original workload generator from SGI in 1995
• Process based workload generator, implemented in
  C
• Clients talk to master via sockets
• Configurable client machines, client
  processes, run time
• Measured several metrics avg max connect time,
  response time, throughput rate (bits/sec),
  pages, files
• 1.0 only does GETS, CGI support added in 2.0
• Static requests, 5 different file sizes

www.mindcraft.com/webstone
36
SURGE

• Scalable URL Reference GEnerator
• Barford Crovella at Boston University CS Dept.
• Much more worried about representativeness,
  captures
• server file size distributions,
• request size distribution,
• relative file popularity
• embedded file references
• temporal locality of reference
• idle periods ("think times") of users
• Process/thread based WG

37
SURGE (cont)

• Notion of user-equivalent
• statistical model of a user
• active off time (between URLS),
• inactive off time (between pages)
• Captures various levels of burstiness
• Not validated, shows that load generated is
  different than SpecWeb96 and has more burstiness
  in terms of CPU and active connections
• www.cs.wisc.edu/pb

38
S-Client

• Almost all workload generators are closed-loop
• client submits a request, waits for server, maybe
  thinks for some time, repeat as necessary
• Problem with the closed-loop approach
• client can't generate requests faster than the
  server can respond
• limits the generated load to the capacity of the
  server
• in the real world, arrivals dont depend on
  server state
• i.e., real users have no idea about load on the
  server when they click on a site, although
  successive clicks may have this property
• in particular, can't overload the server
• s-client tries to be open-loop
• by generating connections at a particular rate
• independent of server load/capacity

39
S-Client (cont)

• How is s-client open-loop?
• connecting asynchronously at a particular rate
• using non-blocking connect() socket call
• Connect complete within a particular time?
• if yes, continue normally.
• if not, socket is closed and new connect
  initiated.
• Other details
• uses single-address space event-driven model like
  Flash
• calls select() on large numbers of file
  descriptors
• can generate large loads
• Problems
• client capacity is still limited by active FD's
• arrival is a TCP connect, not an HTTP request
• www.cs.rice.edu/CS/Systems/Web-measurement

40
TPC-W

• Transaction Processing Council (TPC-W)
• More known for database workloads like TPC-D
• Metrics include dollars/transaction (unlike SPEC)
• Provides specification, not source
• Meant to capture a large e-commerce site
• Models online bookstore
• web serving, searching, browsing, shopping carts
• online transaction processing (OLTP)
• decision support (DSS)
• secure purchasing (SSL), best sellers, new
  products
• customer registration, administrative updates
• Has notion of scaling per user
• 5 MB of DB tables per user
• 1 KB per shopping item, 25 KB per item in static
  images

41
TPC-W (cont)

• Remote browser emulator (RBE)
• emulates a single user
• send HTTP request, parse, wait for thinking,
  repeat
• Metrics
• WIPS shopping
• WIPSb browsing
• WIPSo ordering
• Setups tend to be very large
• multiple image servers, application servers, load
  balancer
• DB back end (typically SMP)
• Example IBM 12-way SMP w/DB2, 9 PCs w/IIS 1M
• www.tpc.org/tpcw
