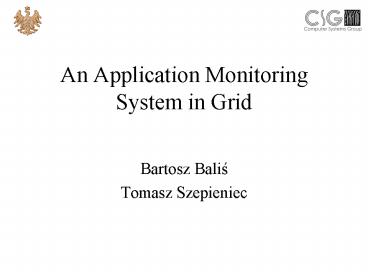

An Application Monitoring System in Grid

• Bartosz Balis
• Tomasz Szepieniec

2
AGENDA

• PART I Monitoring introduction (B. Balis)
• PART II Concepts and problems in Grid
  application monitoring (T. Szepieniec)

3
PART I - OUTLINE

• Application Monitoring
• OMIS
• Grid Monitoring System OCM-G
• Instrumentation

4
Application monitoring

• Monitor obtain information on or manipulate
  target application
• e.g. read status of applications processes,
  suspend application, read / write memory, etc.
• Monitoring module needed by tools
• Debuggers
• Performance analyzers
• Visualizers
• ...

5
Monitoring integrated module

• Monitoring module integrated with GUI
• Usual case

6
Monitoring autonomous system

• Separate monitoring system
• Tool / Monitor interface OMIS

7
Monitoring system benefits

• Modularity
• GUI development separated from monitoring module
  development
• Single monitoring system
• multiple tools do not conflict each other
• coordination of access to shared objects
• enables tool interoperability

8
Interoperability

• Multiple tools
• Common monitoring system
• Interoperability
• cooperation
• e.g. debugger visualizer

9
OMIS

• Universal tool-mon.sys. interface
• Target system view
• hierarchical set of objects
• nodes, processes, threads
• grid additional objects sites
• objects identified by tokens, e.g. n_1, p_1, etc.
• Three types of services
• information services
• manipulation services
• event services

10
OMIS services

• Information services
• obtain information on target system
• e.g. node_get_info obtain information on nodes
  in the target system
• Manipulation services
• perform manipulations on the target system
• e.g. thread_stop stop specified threads
• Event services
• detect events in the target system
• e.g. thread_started_libcall detect infocations
  of specified functions

11
OMIS requests

• Services can be combined into monitoring requests
• Two types of requests
• Unconditional requests
• to be executed immediately
• executed only once
• Conditional requests
• to execute actions whenever event occurs
• actions can be executed multiple time

12
OMIS unconditional requests

• thread_stop(t_1)

Actions
Operands
stop thread t_1
13
OMIS conditional requests
thread_started_libcall(t_1, MPI_Send)
counter_inc(c_1)
Event
Operands
Actions
whenever thread t_1 invokes MPI_Send, increment
counter c_1
14
Grid-enabled OMIS-compliant Monitoring System
OCM-G

• Scalable
• distributed
• decentralized
• Efficient
• local buffers
• ? Three types of components
• local monitors (LM)
• service managers (SM)
• application monitors (AM)

15
Service Managers and Local Monitors

• Service Managers
• one or more in the system
• request distribution
• reply collection
• Local Monitors
• one per node
• handle local objects
• actual execution of requests

16
Application monitors

• Embedded in applications
• Handle some actions locally
• buffering data
• filtering of instrumentation
• monitoring requests
• E.g. REQ read variable a, REP value of a
• asynchronous
• no OS mechanisms involvedion

17
PART II OUTLINE

• Concepts and problems in Grid application
  monitoring
• OCM-G as Grid service
• OCM-G component discovery
• Handling Multiple Applications
• OMIS message routing
• Application start-up

18
OCM-G as Grid service

• Permanently running in Grid
• Global service
• multiple applications
• multiple users
• based on Globus users
• multiple tools

19
OCM-G component discovery

• Use cases
• Assemble individual parts into a single
  monitoring system
• Enabling attachment of application processes and
  tools
• External mechanisms based on
• local file system
• MDS
• R-GMA
• ...

20
Handling Multiple Applications

• Create virtual monitoring system
• One SM becomes MainSM for each application
• which one?
• Expansion and localization mechanism works in
  virtual mode

21
OMIS message routing

• Two options
• route via Main SM (option 1)
• SM communicate directly(option 2)

Where localization info should be stored and how
updated?
22
Application start-up requirements

• Application started as usual (e.g. PORTAL,
  globusrun)
• Independent of communication protocol the
  application uses
• Use GRAM to place application processes where
  OCM-G is enabled

23
Application start-up HOWTO

• Monitoring parameters are put in command line
• Initial OMIS requests can also be put in command
  line (e.g. breakpoints)
• Obligatory starting parameters
• application token chosen apriori
• MainSM token should be known apriori
• (we work on how to avoid this)

24
Conclusion

• OMIS as communication protocol
• Autonomous application monitoring system
• OCM-G use Globus services
• Normal application startup can be achieved
• Some problems are still to be addressed...
