Static Semantics

1

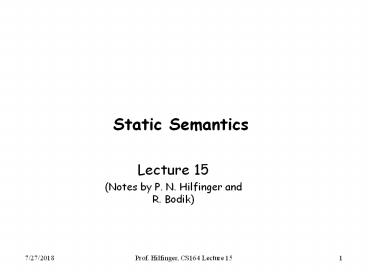

Static Semantics

• Lecture 15
• (Notes by P. N. Hilfinger and R. Bodik)

2
Current Status

• Lexical analysis
• Produces tokens
• Detects eliminates illegal tokens
• Parsing
• Produces trees
• Detects eliminates ill-formed parse trees
• Static semantic analysis ?we are here
• Produces decorated tree with additional
  information attached
• Detects eliminates remaining static errors

3
Static vs. Dynamic

• We use the term static to describe properties
  that the compiler can determine without
  considering any particular execution.
• E.g., in
• def f(x) x 1
• Both uses of x refer to same variable
• Dynamic properties are those that depend on
  particular executions in general. E.g., will
  x x/y cause an arithmetic exception.

4
Static vs. Dynamic, contd.

• Actually, distinction is not that simple. E.g.,
  after
• x 3
• y x 2
• compiler could deduce that x and y are Ints
• But languages often designed to require that we
  treat variables only according to explicitly
  declared types, because deductions are difficult
  or impossible in general.

5
Typical Tasks of the Semantic Analyzer

• Find the declaration that defines each identifier
  instance
• Determine the static types of expressions
• Perform re-organizations of the AST that were
  inconvenient in parser, or required semantic
  information
• Detect errors and fix to allow further processing

6
Typical Semantic Errors Java, C

• Multiple declarations a variable should be
  declared (in the same region) at most once
• Undeclared variable a variable should not be
  used before being declared.
• Type mismatch type of the left-hand side of an
  assignment should match the type of the
  right-hand side.
• Wrong arguments methods should be called with
  the right number and types of arguments.
• Definite-assignment check (Java) conservative
  check that simple variables assigned to before
  use.

7
Output from Static Semantic Analysis

• Input is AST output is an annotated tree.

x 3 def f (x) return xy y Int y 2
?


def
type_decl
x
y
y
f
Int
3
2
return
?
1
2
4
4
Int
Int
1 x, Any, 0 2 f, Any-gtAny, 0 3 x, Any,
1 4 y, Int, 0
x

3
Any
y
x
3
4
Ids decorated with declarations.
Expressions annotated with (static) types.
8
Output from Static Semantic Analysis (II)

• Analysis has added objects well call symbol
  entries to hold information about instances of
  identifiers.
• In this example, 1 x, Any, 0 denotes an entry
  for something named x occurring at the outer
  lexical level (level 0) and having static type
  Any.
• For other expressions, we annotate with static
  type information.

9
Output from Static Semantic Analysis (III)

• Symbol entries for classes (or modules, packages,
  namespaces and the like) must contain equivalent
  of a dictionary mapping names of members to
  symbol entries.
• So given an expression such as x.clear (), we
• find symbol entry for x
• find type (class) of x from its entry, and
• find clear in dictionary of entry associated with
  xs type.

10
Binding names to symbol entries Scoping

• Scope of a declaration section of text where it
  applies
• Declarative region section of text that bounds
  scopes of declarations (well say region for
  short)
• In most languages, the same name can be declared
  multiple times
• if its declarations occur in different
  declarative regions, and/or
• involve different kinds of names.

11
Scoping example

• Java can use same name for
• a class,
• field of the class,
• a method of the class, and
• a local variable of the method
• legal Java program
• class Test
• int Test
• Test( ) double Test

12
Scoping general rules

• The scope rules of a language
• determine which declaration of a named object
  corresponds to each use of the object.
• Scoping rules map uses of objects to their
  declarations (or symbol entries).
• C and Java use static scoping
• mapping from uses to declarations is made at
  compile time.
• C uses Algol scope rules
• a use of variable x matches the declaration with
  the most closely enclosing scope.
• a deeply nested variable x hides x declared in an
  outer region.
• in Java
• inner regions cannot define variables defined in
  outer regions

13
Scoping Options Declarative Regions

• In Java, each function has one or more
  declarative regions
• one for the function body,
• and possibly additional regions in the function
• for each for loop and
• each nested block (delimited by curly braces)
• In Pyth, each function has one per function
  (possibly plus more for nested functions)

14
Example (assume C rules)

• double y, k // y and k global variables
• void f(int y) // y also used as a parameter
• y k // Uses global k and parameter y
• int k 0 // k is now local variable
• while (k) // refers to 2nd decl
  of k
• int k 1 // another local var, in a
  loop (not ok in Java)
• the outermost region includes decls of "f, k
  and y
• function f itself has two (nested) regions
• The outer region for f includes parameter y and
  local variable k .
• The innermost region is for the body of the while
  loop, and includes the variable k that is
  initialized to 1.

global k hidden starting here
15
Scoping Options overloading

• Java and C (but not in Pascal, C, or Pyth)
• can use the same name for more than one method
• as long as the number and/or types of parameters
  are unique.
• int add(int a, int b)
• float add(float a, float b)

16
Scoping options Use before declaration?

• Can names be used before they are defined?
• Java, C a method or field name can be used
  before the definition appears not true for a
  variable, whose scope starts at its declaration
• In Pyth, almost anything can be used before
  declaration, where syntactically possible

17
Scoping Options Dynamic scoping

• Not all languages use static scoping.
• Original Lisp, APL, and Snobol use dynamic
  scoping.
• Dynamic scoping
• A use of a variable that has no corresponding
  declaration in the same function corresponds to
  the declaration in the most-recently-called still
  active function.
• With this rule, difficult for compiler to
  determine much about identifiers

18
Example

• For example, consider the following code
• void main() f1() f2()
• void f1() int x 10 g()
• void f2() String x "hello" f3()g()
• void f3() double x 30.5
• void g() print(x)
• With static scoping, illegal.
• With dynamic scoping, prints 10 and hello

19
So How do we Annotate with Declarations?

• Idea is to recursively navigate the AST, in
  effect executing the program in simplified
  fashion, extracting information that isnt data
  dependent.
• You saw it in CS61A (sort of).

20
Environment Diagrams and Symbol Entries

• In Scheme, a program like
• (set! x 7)
• (define (f x) (let ((y ( x 39)) ( x y)))
• (f 3)
• when executed would eventually give you
  something like this when computing ( x y)

X 7 f
y 42
current environment
x 3
global environment
21
Environment Diagrams to Symbol Entries

• Abstracting from this particular execution,

X 7 f
y 42
current environment
x 3
we take away the values and replace with
static info
current environment
1. X Any 2. f Any-gtAny
4. y Any
3. x Any
and were left with symbol entries and a
data structure (a kind of symbol table) for
looking them up.
22
Annotating Pyth with Symbol Entries

• Process requires several passes (traversals of
  AST). A rough outline
• Create symbol entries for all classes and record
  in global environment, plus entries for all class
  members stored in the classs entries.
• For each declarative region,
• Create a new environment box for each declaration
  immediately inside the region.
• Use it to annotate all uses, and recursively do
  step 2 for all inner declarative regions.

23
Type Checking

• the job of the type-checking phase is to
• Determine the type of each expression in the
  program
• (each node in the AST that corresponds to an
  expression)
• Find type errors
• The type rules of a language define
• how to determine expression types, and
• what is considered to be an error.
• The type rules specify, for every operator
  (including assignment),
• what types the operands can have, and
• what is the type of the result.

24
Type Errors

• The type checker must also
• find type errors having to do with the context of
  expressions,
• e.g., the context of some operators must be
  boolean,
• type errors having to do with method calls.
• Examples of the context errors
• the condition of an if not boolean (Java)
• type of returned value not functions return type

• Examples of method errors
• calling something that is not a method
• calling a method with the wrong number of
  arguments
• calling a method with arguments of the wrong
  types
