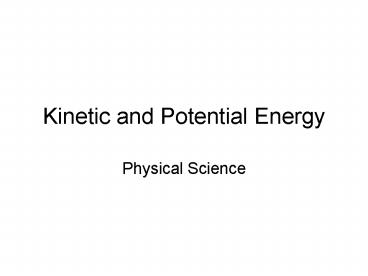

Kinetic and Potential Energy

1
Kinetic and Potential Energy

• Physical Science

2
What is energy?

• The ability to do work or cause change

3
How do we measure energy?

• We measure energy in joules.

4
Who is Joule?

• James Prescott Joule was from Great Britain
  (1818-1889). At the age of 16, he studied with
  the British chemist John Dalton. He began his
  independent research in a laboratory built at
  home where he hoped to replace steam engines by
  electric motors.
• He was also an inventor. He invented electrical
  welding and the displacement pump.
• The Joule, the unit of energy, was named in his
  honor.

5
(No Transcript)
6
Mechanical Energy

• The energy you measure when you observe the
  motion and position of an object.
• There are two types of mechanical energy kinetic
  and potential.

7
Kinetic Energy

• The energy an object has because it is in motion
• Examples are a moving rocket, a runner, etc.

8
Potential Energy

• The energy an object has because of its position.
• Examples are a stretched guitar string, a right
  spring of a wind-up toy, a high diver, etc.

9
Gravitational Potential Energy

• The energy an object has due to its height above
  the ground.

10
Other forms of energy

• Chemical energy
• Thermal energy
• Electric energy
• Light energy
• Nuclear energy

11
Chemical Energy

• Measures the effects of chemical reactions
• Example the reactions that occur when gasoline
  burns to provide the energy for cars and buses.

12
Thermal Energy

• Heat energy
• Examples thermal energy can be detected in the
  engine of a running automobile as the temperature
  of its moving parts increases.

13
Electric Energy

• Comes from the flow of electrons
• Examples we use electric energy to operate
  lights and appliances

14
Light Energy

• Comes from the sun
• Examples plants convert light energy from the
  sun to chemical energy for their growth. Earth
  absorbs sunlight and releases thermal energy for
  a warm environment.

15
Nuclear Energy

• Involves changes within the smallest particles of
  matter
• Some communities rely on nuclear energy to meet
  their energy needs.

16
Conservation of Energy

• The law of conservation of energy states that
  energy can change from one form to another, but
  the total amount of energy is conserved.

17
How do you calculate Kinetic Energy?

• The formula is KE (1/2)mv2
• For example A car with the mass of 200
  kilograms moving at 2 meters per second would
  have this kinetic energy
• KE (1/2)200 x 4
• KE 400 Joules

18
How do you calculate gravitational potential
energy?

• The formula is GPE mgh
• For example If you dropped a 5 gram water
  balloon from 2 meters above the earth, the GPE
  would be
• GPE 5 x 9.8 x 2
• GPE 98 Joules
