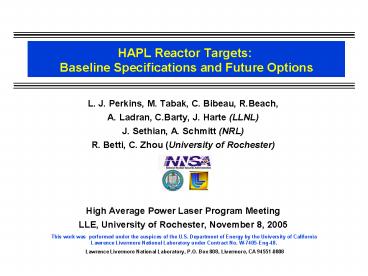

HAPL Reactor Targets: Baseline Specifications and Future Options

1
HAPL Reactor Targets Baseline Specifications
and Future Options

• L. J. Perkins, M. Tabak, C. Bibeau, R.Beach,
• A. Ladran, C.Barty, J. Harte (LLNL)
• J. Sethian, A. Schmitt (NRL)
• R. Betti, C. Zhou (University of Rochester)
• High Average Power Laser Program Meeting
• LLE, University of Rochester, November 8, 2005

2
350MJ-Class HAPL Baseline Target Nov 05
IFARs _at_ 2/3r031, CRs33, Vmax2.9e7cm/s,
?abl3.6 _at_ 2/3r0, ?fuel1.21 _at_ max KE
http//aries.ucsd.edu/HAPL/DOCS/
3
HAPL Baseline Target Output (Threat) Spectra and
Energy Accounting at 100ns
http//aries.ucsd.edu/HAPL/DOCS/
4
Target Gain Curves
KrF a90.6, b0.138 DPSSL at 3? a67.8,
b0.210
http//aries.ucsd.edu/HAPL/DOCS/
5
NIF Achieves Ignition in ca. 2010 Are we on a
Path to Attractive Inertial Fusion Energy ?
(1) Get the driver energy down and target gains
up ?Reduced capital cost and complexity
(2) Avoid 4-Pi illumination geometries?
?Compact chambers ?Simple beam geometries,
buildings
(3) Can we employ thick liquid walls??? ?
Lifetime walls, no refueling outages ? No
advanced material programs or
radiation test facilities needed ? Shallow
disposal of Class-C wastes
(4) Advanced energy conversion and fuels (no
steam cycles)?
? Advanced targets!!
6
How To Make Fusion Look More Like Fission
7
How To Make Fusion Look More Like Fission
Westinghouse AP600 ALWR (600MWe)
GE PRISM ALMR (300MWe)
1m liq. LiBeF
HYLIFE HI-IFE (1000MWe)
Westinghouse AP1300 ALWR (1300MWe)
8
Candidate Advanced Targets for Laser IFE
Compatible with non-4Pi illumination and liquid
walls ??
9
Shock Ignition High Gain and Good Stability at
Low Drive Energy
Issues - High intensity in shock
- Will in work in I.D?
(to scale)
10
Can Advanced Targets Lead to Smaller, Less
Complex Reactor Configurations?
11
Advanced Targets Critical RD Issues
12
HAPL Direct Drive Target Draft Laser/Target
Specs Nov 05
Sources J.Perkins HAPL w/shop presentations UCLA
(June 2004), PPPL (Oct 2004) D.Eimeral
Configuring the NIF for Direct Drive
UCRL-ID-120758 LLNL (1995) R.McCrory NIF
Direct-Drive Ignition Plan plus briefing VGs
(April 1999) LLE Reviews 98 p67, 79 p121, 84
181. S.Skupsky(LLE) pvte comm. (May 2005)
NIF indirect drive specs 12nm (CH), 33nm
(Be/Cu), 0.5mm (inner ice lgt10)
http//aries.ucsd.edu/HAPL/DOCS/
