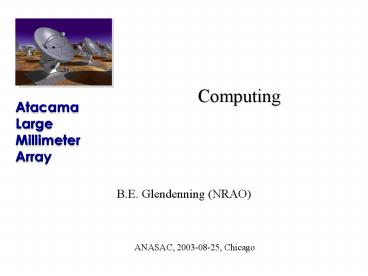

Computing

1
Computing

• B.E. Glendenning (NRAO)

2
Outline

1. Context
2. Management
3. PDR results
4. Software Overview / Architecture
5. Science testing plans
6. AIPS
7. Pipeline

3
ALMA Context

• Timeline Interim operations 2007.5, Regular
  operations 2012.0
• Computing is one of 9 Integrated Product Teams
• 35M / 552M (Computing/Total) 6.3
• FTE-y ratio 230/1515 15

4
Scope

• Computing
• Software development
• Necessary operational computer equipment
• System/network administration (operations phases)
• Subsystems proposal preparation, monitoring,
  dynamic scheduling, equipment control and
  calibration, correlator control and processing,
  archiving, automated pipeline processing, offline
  processing
• Not embedded software (hardware groups),
  algorithm development (Science)
• Activities management, requirements, analysis,
  common software, software engineering,
  integration and test

5
Scope (2)

• Scope Observing preparation and support through
  archival access to automatically produced
  (pipeline) images

6
Development Groups

• 50/50 Europe/North America
• 10 Institutes, 13 Sites!
• Range HIA/Victoria 0.5FTE, NRAO/AOC 15
• Communications difficult, more formal processes
• Access to world expertise

7
Buy vs. Build

• Want to be parsimonious with development funds
• Want system sufficiently modern that it will
  suffice for the construction period and some time
  thereafter (CORBA, XML, Java, C, Python)
• Many open tools/frameworks (ACE/TAO, omniOrb, GNU
  tools, etc)
• After search, ALMA Common Software (ACS) code
  base adopted from accelerator community
• Simplified CORBA framework, useful services
• Astronomy-domain adopted code bases
• Calibration, imaging AIPS
• Archive NGAST
• Atmosphere ATM

8
Strategies

• ACS
• provide a common technical way of working
• Continuous scientific input through Subsystem
  Scientists
• Synchronized 6-month releases
• A common pace for the project
• Check requirements completion
• Yearly design/planning reviews
• React to surprises
• Retain some construction budget to allow for
  discoveries made during interim operations period

9
Management Planning

• Computing Plan (framework) and 15 subsystem
  agreements prepared
• Computing Management Plan approved by JAO
• Subsystem agreements approved by Computing IPT
• Management model
• Agreement contracts followed by subsystem
  scientists (scope) and software management
  (schedule, cost)
• Initial PDR, yearly CDRs and release planning
• Synchronized 6-month releases across all
  subsystems
• SSR requirements mapped to releases for progress
  tracking

10
Management Planning (2)

• Readiness reviews, acceptance tests, and delivery
  to interim operations in 2007
• Data flow items get a second development period
  during interim operations
• review requirements after first experience with
  operations
• Not subject to current agreements institutional
  responsibility could shift

11
Preliminary Design Review

• March 18-20, Tucson
• Panel
• R. Doxsey (CHAIR) (STScI, Head HST Mission
  Office)
• P. Quinn (ESO, Head of Data Management and
  Operations Division)
• N. Radziwill (NRAO, Head of GBT Software
  Development)
• J. Richer (Cambridge, ALMA/UK Project Scientist,
  Science Advisory Committee)
• D. Sramek (NRAO, ALMA Systems Engineering IPT
  Lead)
• S. Wampler (NSO, Software Architect)
• A. Wootten (NRAO, ALMA/North America Project
  Scientist)

12
Preliminary Design Review (2)

• Well prepared PDR at or ahead of where similar
  projects have been at this stage
• The ALMA Project needs to develop an
  understanding of operations, and the Computing
  IPT needs to fold this in to their planning and
  priorities. This might result in reprioritization
  of SSR requirements
• ALMA project needs to define clearly the steps
  necessary for getting to, and implementing,
  Interim Operations and the consequent
  requirements for computing support

13
Preliminary Design Review (3)

• The interaction with AIPS requires careful
  management. Operational (Pipeline) requirements
  on AIPS need further development.
• Testing effort seems satisfactory management
  will need to follow-up to ensure subsystem unit
  tests are in fact carried out

14
Software Scope

• From the cradle
• Proposal Preparation
• Proposal Review
• Program Preparation
• Dynamic Scheduling of Programs
• Observation
• Calibration Imaging
• Data Delivery Archiving
• Afterlife
• Archival Research VO Compliance

15
And it has to look easy

• 1.0-R1 The ALMA software shall offer an easy to
  use interface to any user and should not assume
  detailed knowledge of millimeter astronomy and of
  the ALMA hardware.
• 1.0-R4 The general user shall be offered fully
  supported, standard observing modes to achieve
  the project goals, expressed in terms of science
  parameters rather than technical quantities.
  Observing modes shall allow automatic fine tuning
  of observing parameters to adapt to small changes
  in observing conditions.
• Which means that what is simple for the user will
  be complex for the software developer.
• Architecture should relieve developer of
  unnecessary complexity
• Separation of functional from technical concerns
• But the expert must be able to exercise full
  control

16
Observatory tasks

• Administration of projects
• Monitoring and quality control
• Scheduling of maintenance
• Scheduling of personnel
• Security and access control

17
The numbers

• Average/peak data rates of 6/60 Mbyte/s
• Raw (uv) data ?, image data ? of the total
• Assumes
• Baseline correlator, 10 s integration time, 5000
  channels
• Can tradeoff integration time vs. channels
• Implies 180 Tbyte/y to archive
• Archive access rates could be 5 higher (cf. HST)
• Feedback from calibration to operations
• 0.5 s from observation to result (pointing,
  focus, phase noise)
• Science data processing must keep pace (on
  average) with data acquisition

18
Meta-Requirements

• Standard Observing Modes wont be standard for
  a long time
• e.g., OTF mosaics, phase calibration at submm ?
• Instrument likely to change grow
• Atacama Compact Array (ACA)
• Second-generation correlator
• Could drastically increase data rate (possible
  even with baseline correlator, might be demanded
  for OTF mosaics)
• Computer hardware will continue to evolve
• Development spread across 2 continents
  cultures

19
What do these requirements imply for the
architecture of the software?

• Must facilitate development of new observing
  modes (learning by doing)
• Must allow scaling to new hardware, higher data
  rates
• Must enable distributed development
• Modular
• Standard
• Encourage doing the same thing either a) in the
  same way everywhere or b) only once.

20
(No Transcript)
21
Functional Aspects

• Executive, Archive, ACS are global all other
  subsystems interact with them.
• ACS common software a foundational role
• Executive start, stop, monitor an oversight
  role
• Archive object persistence, configuration data,
  long-term science data a structural support
  role
• Instrument operations
• Control, correlator, quick-look pipeline,
  calibration pipeline real-time
• Scheduling (near real-time)
• External subsystems
• Observation preparation and planning
• Science data reduction pipeline (not necessarily
  online)

22
(No Transcript)
23
Scheduling Block Execution
24
ALMA Software User Test Plan Status

• Software test plans being developed by SSR
  subsystem scientists and subsystem leads.
• Test plan components
• Use Cases descriptions of operational modes and
  what external dependencies exist. Designed to
  exercise subsystem interfaces, functionality,
  user interfaces.
• Test Cases Use Case subset designed to test
  specific functions.
• Testing timeline (when tests run in relation to
  Releases, CDRs).
• Test Definitions - specifies which test case will
  be run, what the test focus is, and whether the
  test is automated or involves users.
• Test Reports (e.g., user reports, audit updates,
  summary).
• Test Plan drafts for all subsystems to be
  completed by Oct 1.

25
ALMA Software User Test Plan Status

• Software test plan guidelines
• June 5, 2003 Test Plan approved by Comp mgt
  leads.
• June 11, 2003 Test Plan presented to SSR. (ALMA
  sitescape, SSR draft documents).
• Use Case development
• July 9, 2003 Use Case guidelines, html
  templates, examples put on the web
  (www.aoc.nrao.edu/dshepher/alma/usecases)
  presented to SSR.
• Aug 2003 Detailed Use Cases being written for
  all Subsystems.
• Test Plan development
• Sept 2003 Draft test plans to be completed.
• Oct 1, 2003 Test plans problems
  identified/reconciled, resources identified
• Nov 2003 First User test scheduled (for
  Observing Tool subsystem).

26
ALMA Software User Test Plan Status

• Use Cases written to-date
• Observing Preparation Subsystem
• OT.UC.SingleFieldSetup.html Single
  Field, Single Line setup
• OT.UC.MultiFieldMosaicSetup.html Multi-Field
  Mosaic setup
• OT.UC.SurveyFewRegionsSeveralObjects.html Set
  Up to do a Survey of a Few Regions with Several
  Objects.
• OT.UC.SpectralSurvey.html Set Up to do a
  Spectral Line Survey.
• Control Subsystem
• Control.UC.automatic.html Automatic
  Operations Use Case.
• Offline Subsystem
• Offline.UC.SnglFldReduce.html Reduce
  Image Single Field Data
• Offline.UC.MosaicReduce.html Reduce
  Image Multi-Field Mosaic
• Offline.UC.TotPower.html
  Reduce, Image Auto-Correlation Data
• Pipeline Subsystem
• Pipeline.UC.ProcSciData.html Process Science
  Data
• Pipeline.UC.SnglFld.html Science Pipeline
  Process Single Field Data
• Pipeline.UC.Mosaic.html Science Pipeline
  Process Mosaic, no short spacings
• Pipeline.QLDataProc.html Quick-Look Pipeline
  Data Processing
• Pipeline.QLCalMon.html Quick-Look Pipeline
  Monitor Calibration Data
• Pipeline.QLArrayMon.html Quick-Look Pipeline
  Monitor Array Data

27
(No Transcript)
28
(No Transcript)
29
AIPS Evaluation

• AIPS (along with the ESO Next Generation
  Archive System) is a major package used by ALMA
• Both to ensure at least one complete data
  reduction package is available to users and in
  implementing ALMA systems (notably the Pipeline)
• AIPS is a very controversial package (long
  development period, has not received wide
  acceptance)
• ALMA Computing has arranged several evaluations
• Audit of capabilities based on documentation
• AIPS/IRAM test to test suitability for
  millimeter data
• Benchmarking tests
• Technical review of AIPS March 5-7 2003
• Sound technical base, management changes needed

30
AIPS Audit
Explanatory not results!
Work to be done by ALMA
These should be 0 (in 2007)
These should be lt10 of the total
31
(No Transcript)
32
AIPS Audit Results - Summary

• All 58 (Acceptable) / 16 (Inadequate) / 16
  (Unavailable) / 10 (TBD)
• Critical 66 / 14 / 12 / 8
• Important 52 / 19 / 19 / 10
• Desirable 35 / 17 / 33 / 15
• 14 of requirements have had differing grades
  assigned by auditors

33
AIPS/IRAM Tests

• Phase 1 Can AIPS Reduce real mm wave data?
• Yes, but schedule was very extended
• Partly underestimated effort, mostly priority
  setting
• ALMA/NRAO and EVLA now directly manages AIPS
• And for the next 12 months ALMA has complete
  control of priorities
• Phase 2 Can new users process similar but new
  data?
• Generally yes, but it is too hard
• Phase 3 Performance (described next)

34
AIPS Benchmark Status

• Four requirements related to AIPS performance

• 2.1.1 R4 Performance of the Package shall be
  quantifiable and commensurate with data
  processing requirements of ALMA and scientific
  needs of users. Benchmarks shall be made for a
  fiducial set of reduction tasks on specified test
  data.
• 2.2.2 R1.1 GUI window updates shall be lt 0.1s
  on same host.
• 2.3.2 R4 Package must be able to handle,
  efficiently gracefully, datasets larger than
  main memory of host system.
• 2.7.2 R3 Display plot update speed shall not
  be a bottleneck. Speed shall be benchmarked and
  should be commensurate with comparable plotting
  packages.
• ASAC AIPS must be within factor of 2 of
  comparable pkgs.

35
AIPS Benchmark Strategy

• Finish AIPS/IRAM Phase 3 (performance) test
• Set up automated, web-accessible, performance
  regression tests of AIPS against AIPS, Gildas,
  and Miriad
• Start simple, then extend to more complex data
• Systematically work through performance problems
  in importance order
• Resolution of some issues will require scientific
  input (e.g., when is an inexact polarization
  calculation OK)
• Decide in Summer 2004 (CDR2) if AIPS
  performance issues have arisen from lack of
  attention or for fundamental technical reasons
  (fatal flaw)

36
Full AIPS/AIPS/Gildas/Miriad Comparison not
possible

• Different processing capabilities (polarization)
  and data formats
• Standard ALMA-TI AIPS PdBI
  MIRIAD VLA Export
• Package FITS FITS format format
  format format
• GILDAS
• MIRIAD
• AIPS
• AIPS

• Compare AIPS with GILDAS on one dataset in
  ALMA-TI FITS format
• Compare AIPS with MIRIAD AIPS on another
  dataset in FITS format

37
AIPS/IRAM Phase 3(ALMA-sized data, single
field spectroscopic)

• GILDAS/CLIC AIPS A/G Comments
• Filler 1873 10939 5.8
• Init (write header info) 385 n/a
• Fill model/corr data cols. 2140 n/a
• PhCor (Check Ph-corr data) 889
  3484 3.9 (AIPS Glish)
• RF (Bandpass cal) 5572 2298 0.4
• Phase (Phase cal) 3164 1111 0.4
• Flux (Absolute flux cal) 1900
  2093 1.2 (AIPS Glish)
• Amp (Amplitude cal) 2242 614 0.3
• Table (Split out calib src data) 1200
  5150 4.3
• Image 332 750 2.3
• Total 17600s 28600s 1.6
• Caveats DRAFT results, bug in AIPS bandpass
  calibration requires too much memory (1.7GB
  AIPS vs. 1.0GB Gildas)
• Gildas executables copied, not compiled an
  benchmark machine
• Several AIPS values still be amenable to
  significant improvement

38
AIPS Benchmark Status

• SSR has identified 2 initial benchmark datasets
• Pseudo GG Tau PdBI data of 25 March. Original
  observation expanded to 64 antennas with GILDAS
  simulator source structure converted to point
  source. 3 1 mm continuum spectral line
  emission. Data in ALMA-TI FITS format (same data
  used during AIPS re-use Phase III test).
• Ensure continuous comparisons in time with AIPS
  Ph III re-use test
• Compare core functions (fill, calibrate, image)
  on ALMA-size dataset
• Exercise mm-specific processing steps
• Polarized continuum data VLA polarized
  continuum emission in grav lens 0957561, 6cm
  continuum, 1 spectral window. Snapshot
  observation extended in time with AIPS
  simulator to increase run-time. Data in Std FITS
  format.
• Exercise full polarization calibration,
  self-calibration, non-point source imaging
  (polarization processing can only be compared
  with MIRIAD/AIPS).

Results to be published on web for each AIPS
stable release.
39
Calibrater Performance Improvements vs. Time
40
Calibration Performance vs. AIPS
41
Calibrater Still TODO
42
Imager Performance

• Imaging Performance Improvements

Imaging performance Improved by factor of 1.8
for 2048 pixels. Improved by factor of 4.4 for
4096 pixels. AIPS/AIPS ratio now 1.6 for 2048
pixels 1.8 for 4096 pix. Now dominated by more
general polarization processing in AIPS? This
is I Multi-polarization should be relatively
faster in AIPS, but needs to be demonstrated
Execution Tiime (sec)
Image Size (NxN pixels)
43
AIPS Benchmark Status

• Dataset expansion
• SSR will identify datasets in the following
  areas
• Spectral line, polarized emission. Multi-config
  dataset if possible
• Multi-field interferometric mosaic
• Large, simulated dataset, includes atmospheric
  opacity variations and phase noise
• Single-dish interferometer combination in uv
  plane (no SD reduction now (MIRIAD/AIPS do not
  process SD data, GILDAS only processes
  IRAM-format SD data cannot convert to FITS).
• NOTE Glish-Based GUIs will be replaced with JAVA
  GUIs once ACS/Corba framework conversion is
  complete. ? benchmark comparisons affecting GUI
  and plotting interface will be delayed until JAVA
  GUIs ready to test.

44
Pipeline

• Three current development tracks
• Paperwork assemble use cases, write test plans,
  develop heuristics decision trees
• Implement top-level interfaces required by the
  rest of the system (e.g., to start a stub
  pipeline when ordered to by the scheduling
  subsystem)
• Technology development / prototype pipeline
• VLA GRB observations
• Bind AIPS engines to ALMA technology (Python,
  CORBA (i.e., ACS)
• Gain experience for possible package-independent
  execution framework
• To be used by at least AIPS
• Allow pipeline computations to be performed by
  different packages
• Possible relevance for VO
