Context Specific Middleware Specialization Techniques for Optimizing Product-line Architectures

1

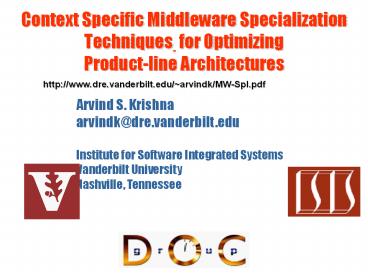

Context Specific Middleware Specialization
Techniques for Optimizing Product-line
Architectures
http//www.dre.vanderbilt.edu/arvindk/MW-Spl.pdf
Arvind S. Krishna arvindk_at_dre.vanderbilt.edu Inst
itute for Software Integrated Systems Vanderbilt
University Nashville, Tennessee
2
Presentation Road Map

• Technology Context
• Research Challenges
• Middleware Specialization Techniques
• Feature Oriented Customizer (FOCUS) for
  Middleware
• Applying FOCUS to PLAs Middleware A Case
  Study
• Concluding Remarks Future Work

3
Motivation
Air Frame
FLIR
FLIR
GPS
GPS

• Legacy distributed real-time embedded (DRE)
  systems have historically been
• Stovepiped
• Proprietary
• Brittle non-adaptive
• Expensive
• Vulnerable

4
Motivation
Air Frame
FLIR
AP
HUD
GPS
Nav
IFF
Domain-specific Services
Common Middleware Services

• Middleware factors out many reusable
  general-purpose domain-specific services from
  traditional DRE application responsibility
• Essential for product-line architectures (PLAs)

5
Motivation
Air Frame
FLIR
AP
HUD
GPS
Nav
IFF
Domain-specific Services
Common Middleware Services

• Middleware factors out many reusable
  general-purpose domain-specific services from
  traditional DRE application responsibility
• Essential for product-line architectures (PLAs)
• However, standards-based, general-purpose,
  layered middleware is not yet adequate for the
  most demanding mission-critical PLA based DRE
  systems

6
Motivation
Air Frame
FLIR
AP
HUD
GPS
Nav
IFF

• Middleware factors out many reusable
  general-purpose domain-specific services from
  traditional DRE application responsibility
• Essential for product-line architectures (PLAs)
• However, standards-based, general-purpose, layers
  middleware is not yet adequate for the most
  demanding mission-critical PLA based DRE
  systems

My research optimizes middleware for PLA-based
DRE systems
7
Presentation Road Map

• Technology Context
• Research Challenges
• Middleware Specialization Techniques
• Feature Oriented Customizer (FOCUS) for
  Middleware
• Applying FOCUS to PLAs Middleware A Case
  Study
• Concluding Remarks Future Work

8
Overview of Research Challenges

• Resolving the tension between
• Generality ? Middleware is designed to be
  independent of particular application
  requirements

• Specificity ? PLAs are driven by the functional
  QoS requirements for each product variant

Product-line Variant
Customized Middleware Stack
Standards-based, General-purpose, Layered
Middleware Architecture
9
Overview of Research Challenges

• Middleware Functionality Specialization
• Specifications impose certain middleware
  functionality
• Need to work on machines with different
  endianess Not required for homogenous PLAs
• How can specification imposed generality be
  specialized to improve QoS?

• Framework Specialization
• Middleware architecture define hooks
• Plug protocol implementations PLAs however
  require one alternative
• How can middleware frameworks be specialized to
  remove hooks?

• Deployment Specialization
• Middleware implementations run on different
  hardware/OS/compiler platforms PLAs are deployed
  on specific platforms
• How can we leverage platform characteristics to
  improve QoS?

• Specialization Automation
• Mature middleware implementations for PLAs, e.g.,
  ACETAO (www.dre.vanderbilt.edu) have over
  million lines of code hand crafting
  specializations for production middleware not
  feasible

10
Presentation Road Map

• Technology Context
• Research Challenges
• Middleware Specialization Techniques
• Feature Oriented Customizer (FOCUS) for
  Middleware
• Applying FOCUS to PLAs Middleware A Case
  Study
• Concluding Remarks Future Work

11
Overview of FOCUS

• Middleware Instrumentation Phase
• Middleware developers
• Capture specialization transformations via FOCUS
  specialization language (FSL)
• Annotate middleware source code with
  specialization directives
• Create a domain-specific language (DSL) to
  capture middleware component variability

• Middleware Specialization Phase
• PLA application developer
• Analyses determines the type of specializations
  applicable
• FOCUS transformation engine selects the
  appropriate transformations uses the
  annotations to automate specializations

FOCUS addresses specialization challenges by
building specialization language, tool, process
to capture and automate middleware specializations
12
FOCUS Motivation

• FOCUS design motivated by template
  code-generation approaches Jostraca
  (www.jostraca.org) and Java Emitter Templates
  (www.eclipse.org)
• Both have code generation directives in the form
  of meta-data, e.g. lt_at_ jet package"hello"
  class"GreetingTemplate" gt Hello, World

• FOCUS approach augments template-based approaches
  by
• Enhancing directives Enables placing meta-data
  within code directly
• Supporting Code Evolution FOCUS allows
  specializations and code to evolve in parallel
  minimizing skew
• Minimizing accidental complexity FOCUS allows
  ease of specialization specification via XML,
  does not require understanding of complicated
  specialization language syntax

• Transformational approaches Stratego-XT
  (www.program-transformations.org/stratego), DMS
  (www.semdesigns.com) support a broader range of
  specializations to be specified in abstract and
  concrete language syntax
• The goal of this work isnt on specialization
  languages per se, but instead to quantify the
  improvements that come from applying various
  types of specializations to middleware

13
FOCUS Goals
Shield middleware developers from tool maturity
issues
Extensible, easy to use minimize accidental
complexities in developing specializations
Specialized code should not incur
performance/foot-print overhead due to the
specialization
Toolkit based on COTS components and technologies
Should not be bothered about actual
specialization details
Work across different middleware implementations
in Java, C, etc
Support middleware specialization with evolution
Generated code should work across different
compilers, platforms, etc. Should not rely on
external libraries
14
FOCUS Dynamics

• PLA application developer selects the features to
  be specialized
• Perl-based FOCUS transformation engine selects
  the appropriate specialization file from the
  repository executes the specialization

Feature Selection
FOCUS Customization Engine Transforms annotations
Source-to-Source Transformations
15
Presentation Road Map

• Technology Context
• Research Challenges
• Middleware Specialization Techniques
• Feature Oriented Customizer (FOCUS) for
  Middleware
• Applying FOCUS to PLAs Middleware A Case
  Study
• Concluding Remarks Future Work

16
Bold Stroke PLA Scenario

• Example System
• Basic Single Processor (BasicSP) distributed
  real-time embedded (DRE) application scenario
  based on Boeing Bold Stroke
• Timer Component triggers periodic refresh rates

• GPS Component generates periodic position
  updates
• Airframe Component processes input from the GPS
  component feeds to Navigation display
• Navigation Display displays GPS position
  updates

Representative DRE application rate based
Events ? Control information Operation ? simple
data
ACE_wrappers/TAO/CIAO/DaNCE/examples/BasicSP
CoSMIC/examples/BasicSP
17
Identifying Ahead of Time Known System Invariance
Specification Invariance
Single method interfaces Sends same operation on
wire
2
Framework Invariance
Deployment Platform Invariance
Protocol A specific protocol used
Do not support native exceptions
3
1
A specific Reactor used
18
Framework Specialization
The resolution of this challenge illustrates how
middleware frameworks can be specialized

• Invariance
• Middleware components such as Reactor, protocol,
  components remain same for a PLA scenario

• Reactor Pattern
• Reactor pattern separates the event detection
  from the demultiplexing
• Allows a single-thread to do both activities
• Multiple Reactor implementations need only one!

• Reactor Specialization
• Remove indirection, e.g., Reactor_Impl base class
  completely (all virtual methods concrete)
• No changes to component interface. Does not break
  compatibility

This specialization is an example of Aspect
Weaving specialization, where crosscutting
middleware features are customized
19
Capturing Specialization in FSL (1/2)

• FOCUS uses an XML DTD to create a DSL for
  capturing specializations
• Use Reactor specialization as an example to bring
  out FSL language features
• Tags used to represent different transformations
• ltsubstitutegt ? Substitution capability
• ltsearchgt .. lt/searchgt ltreplacegt lt/replacegt
  Capability to search replace (supports regular
  expressions within tags)
• ltremovegt ? Remove code within the tag (supports
  regular expressions)

ltsubstitutegt ltsearchgtACE_Reactor_Impllt/searchgt
ltreplacegtACE_Select_Reactor_Impllt/replacegt lt/subst
itutegt
Removes indirection in the Reactor framework
Once indirections is removed, virtualness can be
eliminated
ltremovegtvirtuallt/removegt
These tags do not require any annotations to the
middleware source code
20
Capturing Specialization in FSL (2/2)

• ltaddgt ? Add code based on a hook
• lthookgt Annotated point within middleware where
  code needs to be woven
• ltdatagt Code to be woven at that point

Bring in concrete Reactor declarations into the
base Reactor component
ltaddgt lthookgtREACTOR_SPL_INCLUDE_HOOKlt/hookgt ltdatagt
include "ace/Select_Reactor.h"lt/datagt lt/addgt

• ltcomment-regiongt ? Comment a region out between
  hooks
• ltstart-hookgt ltend-hookgt Annotations that define
• where to start stop copy

Eliminate code that creates a vanilla Reactor
component
ltcommentgt ltstart-hookgt TAO_REACTOR_SPL_COMMENT_HO
OK_START lt/start-hookgt ltend-hookgt
TAO_REACTOR_SPL_COMMENT_HOOK_END
lt/end-hookgt lt/commentgt

• Annotations help identify join points relieve
  FOCUS from implementing a full fledged language
  parser
• FOCUS is language agnostic, i.e., ltdatagt can be
  written in any language

21
Instrumenting Middleware Implementation

• Middleware Annotations
• Middleware developer annotates middleware with
  hooks
• Hooks represented as meta-comments, i.e.,
  opaque to compilers

ACE_Reactor_Impl TAO_Advanced_Resource_Factory
allocate_reactor_impl (void) const
ACE_Reactor_Impl impl 0 //_at__at_
TAO_REACTOR_SPL_COMMENT_HOOK_START switch
(this-gtreactor_type_)
//_at__at_ TAO_REACTOR_SPL_COMMENT_HOOK_END
lt?xml version'1.0'?gt lttransformgt 11
ltmodule"TAO/tao"gt 12 ltfile name"advanced_resou
rce.cpp"gt 13 ltcommentgt 14
ltstart-hookgtTAO_REACTOR_SPL_COMMENT_HOOK_START
lt/start-hookgt 15 ltend-hookgtTAO_REACTOR_SPL
_COMMENT_HOOK_END lt/end-hookgt 16
lt/commentgt 17 lt/filegt 18 lt/modulegt 23 ....
lt/transformgt
22
FOCUS Specialization Phase
Annotated middleware source
Transformed middleware source
//File Reactor.h //_at__at_ REACTOR_SPL_INCLUDE_HOOK /
/ Code woven by FOCUS include
"ace/Select_Reactor.h" // END Code woven by
FOCUS class Reactor public int
run_reactor_event_loop () // Other public
methods .... private // Code woven by FOCUS
ACE_Select_Reactor reactor_impl_ // End Code
woven by FOCUS // ......
//File Reactor.h //_at__at_ REACTOR_SPL_INCLUDE_HOOK cl
ass Reactor public virtual int
run_reactor_event_loop () // Other public
methods .... private ACE_Reactor_Impl
reactor_impl_ // ......
include concrete header file
Removed virtual keyword
Replaced ACE_Reactor_Impl with ACE_Select_Reactor

• These specializations dont affect framework
  business logic, just its structure
• Existing framework is still available when
  developers need OO capabilities

23
Aspect Weaving Specialization Results

• Experiment
• Client/server communicate by sending a simple
  long
• End-to-end latency measures for
• General-purpose optimized TAO and
• Reactor, Protocol frameworks specialized with
  FOCUS compared

• Average Measures
• Reactor 4.5
• Protocol 5

Jitter better specialization does not compromise
predictability
Worst case measures improve by 50 µsecs

• Result Synopsis
• Average latency measures improve by 5 for both
  protocol and reactor specializations

Specialization also applied to other frameworks
in TAO Messaging, Wait Strategies

• Jitter improves though not considerably

• 99 values closer to average and worst-case
  values are better indicating better predictability

24
Scenario Invariance Specialization
Resolution of this challenge illustrates how
specification imposed functionality can be
specialized

• Invariance
• The same operation is invoked on a given
  connection

Normal layered path

• Specialize Middleware Paths
• Create middleware fast paths based on different
  invariants

Optimized Fast path processing

• Request Processing Fast Paths
• Normal layered path ?Uses general-purpose
  optimization for request lookup
• Optimized fast path ? Bypasses middleware layers
  to directly perform operation invocation

This specializations is an example of Memoization
Layer-folding specialization, where a
pre-computed result is cached and used to bypass
middleware layers
25
Automating Dispatch Resolution Specialization

• Automating Specialization via FOCUS
• On a per connection basis determine the target
  dispatcher
• For subsequent requests, directly use the
  dispatcher to process requests

FSLs add capability leveraged
Normal path the dispatch is cached in the process

• Consequences
• Specialization compliant with CORBA
• POA Current not maintained
• Default_Servant and Servant_Manager POA policies
  not honored with this optimization
• Rarely used with DRE applications

ltaddgt lthookgtTAO_DISPATCH_OPT_ADD_HOOKlt/hookgt
ltdatagt 1. if (__dispatch_resolved__)
2. 3 //First invocation normal path
4 __dispatch_resolved_ 0 5
6 else 7 // All invocations go
through --- Optimized path 8
this-gtrequest_disaptcher__.dispatch () 9
ltdatagt lt/addgt
FOCUS enables specializations to be specified in
the corresponding language syntax
Directly use cached dispatcher
26
Results for Layer-folding Specialization
Average end-to-end measures improved by 16
Average path measures improved by 40

• Experiment
• End-to-end latency measures for
• General-purpose optimized TAO with active
  demultiplexing and perfect hashing
• Specialized TAO with layer folding specialization
  enabled

Worst case path measure improved by 20
Dispersion improves by a factor of 1.5 for both
cases
Worst case end-to-end latency improved by 14

• Path specialized latency measures
• Path defined as code-path when a request is
  received until the upcall is dispatched on the
  skeleton

Specialization applied at the server side this
optimization can be applied at the client side as
well
27
Deployment Platform Specializations
The resolution of this challenge illustrates how
deployment generality can be resolved to improve
QoS

• Invariance
• Endianess of the platforms remains the same for
  the PLA scenario

• Deployment Platform Generality
• Platform characteristics affect QoS
• TANGO ?Timesys linux gcc
• ACE ?vxWorks Greenhills compiler
• Certain versions of vxWorks do not support
  exceptions

• Specialize Middleware for Deployment platform
• Run benchmark tests and programs automatically
  using autoconf before ORB initialization to
  determine right hardware, OS and compiler
  characteristics

This specialization is a variation of Constant
Propagation where the constant (platform
characteristic) is used to tailor the middleware
28
Automating Platform Specializations

• Deployment platform specialization
• Exception support
• Autoconfs AC_COMPILE_IF_ELSE macro to check if
  compiler supports native exception
• Loop unrolling optimization
• Autoconfs AC_RUN_IF_ELSE macros to compile and
  run benchmark to quantify memcpy performance
  improvements

Variable that will be checked to set a
compilation flag
ACE_CACHE_CHECK(if ACE memcpy needs loop
unrolling, ace_cv_memcpy_loop_unroll, AC_RUN_I
FELSE(AC_LANG_SOURCE( /// . Program that
will run the benchmark to //// determine if an
optimization is better
Directive to run the benchmark
Provide the actual source language that will be
compiled and run
This approach can be applied to automatically
discover OS specific system calls and compiler
settings that maximize QoS
29
Results for Autoconf Specialization
Average latency improves 17

• Deployment platform specialization
• Exception support
• Loop unrolling optimization
• During ORB configuration, autoconf used to use
  emulated exceptions and un-roll loops for memcpy

Predictability improved over general purpose
middleware
Worst-case measures improve by 50 µs
Other types of optimization include sendfile
optimization on Unix and Linux platforms to avoid
copy between TCP and application buffers
30
Specialization Catalog

• Client Side Specialization
• Request Header Caching
• Pre-creating Requests
• Target Location
• Avoid demarshaling checks

• Server Side Specialization
• Specialize Request Processing
• Avoid aligning data types while marshaling

• ORB Component Specialization
• Multiple types of Reactor
• Pluggable protocol framework

www.dre.vanderbilt.edu/arvindk/MW-Spl.pdf
31
Cumulative Specialization Results
Average end-to-end measures improved by 43
Worst-case measures improved by 45
Jitter results twice as better as general-purpose
optimized TAO
End-to-end client side throughput improved by
65. Results are notable as base line used is
already optimized general-purpose TAO
implementation
32
FOCUS Strengths Drawbacks

• Strengths
• FOCUS provides a lightweight, zero (run-time)
  overhead approach for customizing middleware
• FOCUS is designed to work across different
  languages (Java, C)
• XML-based approach to capture rules
• Easy language extension, ability to add new
  features easily
• If/when C aspect technologies mature, can
  transform them into aspect rules via XSLT
  transforms
• Execute transformations via scripting
• Perl regular expression capability really mature
  for our transformation
• Ease of automation integrate with other quality
  assurance techniques

• Drawbacks
• Does not provide full-fledged language parser,
  i.e., join points need to be identified via
  annotations or via regular expressions
• Static compile-time specialization Requires
  recompilation of source code
• Aspect C, DMS use this approach
• The need to synchronize annotations with
  specialization files Modification of source code
  requires change to specialization files
• Ameliorated with QA techniques by having
  continuous builds Limitation exists even with
  aspects
• Correctness of transformations have to be
  validated externally unlike AspectJ

FOCUS soon available in the latest ACETAO
distribution in ACE_wrappers/bin directory.
Temporary location www.dre.vanderbilt.edu/arvind
k/FOCUS
33
Presentation Road Map

• Technology Context
• Research Challenges
• Middleware Specialization Techniques
• Feature Oriented Customizer (FOCUS) for
  Middleware
• Applying FOCUS to PLAs Middleware A Case
  Study
• Concluding Remarks Future Work

34
Concluding Remarks (1/2)

• Implications on QoS
• Specializations applied such that no
  dependencies/conflicts exists
• As more specializations are developed it is
  necessary to document dependencies between
  specializations

• Implications on ORB maturity
• Optimizations improve QoS over and above
  general-purpose optimizations
• Other ORBs, e.g., JacORB, do not use such
  optimizations performance gains in this case
  would be more
• Preliminary results Daugherty on ZEN show that
  speed up was better compared to TAO

TAO uses active demultiplexing and perfect
hashing for O(1) demux time
Daugherty Gary Daugherty, A Proposal for the
Specialization of HA/DRE Systems, ACM PEPM 04
35
Concluding Remarks (2/2)

• Implications on Schedulability
• Specializations help high priority tasks finish
  ahead of their time to complete
• Tasks with priority 50 finish early, increasing
  time available for scheduling priorities with 35
  and 10
• Specializations can benefit both hard real-time
  and soft and softer real-time tasks

Specializations increase slack in the system

• Implications on Adaptability
• Specializations do not consider any form of
  recovery if invariance assumptions fail
• Adaptation requires loading general-purpose code,
  add checks along request processing path
  increases jitter for DRE systems

• Implications on PLA Scenario
• All our specializations improve path latencies
  considerably than end-to-end latency More the
  specialized code path is traversed, greater is
  QoS improvement

36
Future Work

• Middleware implementations accommodate
  variability by using patterns
• Greater benefits can be accrued by applying
  specialization approaches to other middleware
  frameworks locking, buffering and concurrency
  strategies in middleware.

http//www.cs.wustl.edu/schmidt/POSA/

• Future research will also examine applicability
  of specializations to Component based middleware
  implementations

37
Questions
38
FOCUS Instrumentation Phase (3/3)

• Transformation preserves the hooks, enables
  multiple specializations to use the same hook
• Minimizes clutter in middleware source code

ACE_Reactor_Impl TAO_Advanced_Resource_Factory
allocate_reactor_impl (void) const
ACE_Reactor_Impl impl 0 //_at__at_
TAO_REACTOR_SPL_COMMENT_HOOK_START switch
(this-gtreactor_type_)
//_at__at_ TAO_REACTOR_SPL_COMMENT_HOOK_END
ltaddgt lthookgtTAO_REACTOR_SPL_COMMENT_HOOK_ENDlt/ho
okgt ltdatagt ACE_NEW_RETURN (impl,
ACE_Select_REACTOR ((ACE_Sig_Handler)0,

(ACE_Timer_Queue)0,
0,
(ACE_Select_Reactor_Notify)0,

this-gtreactor_mask_signals_),
0)
Weave code that creates Select_Reactor instead of
a normal Reactor

• Hook names need not have any meaning
• Differs from Javadoc tag approach
• A drawback of this approach is the need to
  synchronize tags with specialization files
• However, same actor (i.e., middleware developer)
  maintains both entities

39
FOCUS Specialization Language (FSL)

• ltcopy-from-sourcegt ? Copy code from a specific
  point to a specific point between different files
• ltstart-hookgt ? hook from where to start copying
  ltend-hookgt ? hook to stop copying ltdest-hookgt ?
  destination where you want the code to be placed
• Aids copying derived class specializations to
  base class

ltcopy-from-sourcegt ltsourcegtSelect_Reactor.hlt/sou
rcegt ltcopy-hook-startgtACE_REACTOR_SPL_COPY_HOOK_
START lt/copy-hook-startgt ltcopy-hook-endgtACE_REAC
TOR_SPL_COPY_HOOK_END lt/copy-hook-endgt
ltdest-hookgtACE_REACTOR_SPL_METHODS_ADD_HOOK
lt/dest-hookgt lt/copy-from-sourcegt
Copies additional methods from the derived
class onto base class

• Processing of the specialization tags is done in
  the following order ltremovegt, ltsubstitutegt,
  ltcommentgt, ltaddgt, ltcopy-from-sourcegt
• Order can be configured to support different
  parsing mechanisms
• Enables middleware developers to define enforce
  an ordering of how the individual transformations
  will be carried out

40
FOCUS Termination Criteria

• Termination Criteria (Hypothesis)
• We will use TAO mature real-time ORB as our gold
  standard
• Greatest benefits will be accrued for scenarios
  that can turn on all/most of the optimizations
• Performance improvements estimated 30 40
  improvement in performance
• Turning on just one/two optimizations might
  improve performance by 10 15 improvement

• TAO baseline
• General-purpose optimized TAO ORB
• Active demultiplexing and perfect hashing for
  O(1) request demultiplexing
• Buffer caching and direct collocation
  optimization
• Most optimized configuration for different ORB
  components

• Experiment Setup
• A single threaded client and server simple long
  exchanged
• Pentium III 850 Mhz processor, running Linux
  Timesys 2.4.7 kernel, 512 MB of main memory, TAO
  version 1.4.7 compiled with gcc 3.2.3
• Timers at the client and within ORB used to
  collect data

41
FOCUS Instrumentation Phase (1/3)

• Specialization transformations
• Middleware developers use FSL to define
  transformations
• Portion of XML file for specializing TAO Reactor
  implementation
• Lines 1 2 module, package, file to
  specialize
• Lines 3 8 add necessary forward declaration at
  a hook in middleware
• Lines 13 16 comment out unspecialized code
  within the markers

Similar to listing, package AOP defines class
directive
lt?xml version'1.0'?gt lttransformgt 1 ltmodule
name"ace"gt 2 ltfile name"Select_Reactor_Base.h"
gt 3 ltaddgt 4 lthookgtREACTOR_SPL_INCLUDE_HOOKlt
/hookgt 5 ltdatagtclass ACE_Sig_Handlerlt/datagt 6
ltdatagtclass ACE_Sig_Actionlt/datagt 7
ltdatagtclass ACE_Sig_Setlt/datagt 8 lt/addgt 9
lt/filegt 10 lt/modulegt 11 ltmodule"TAO/tao"gt 12
ltfile name"advanced_resource.cpp"gt 13
ltcommentgt 14 ltstart-hookgtTAO_REACTOR_SPL_COMMEN
T_HOOK_START lt/start-hookgt 15
ltend-hookgtTAO_REACTOR_SPL_COMMENT_HOOK_END
lt/end-hookgt 16 lt/commentgt 17 lt/filegt 18
lt/modulegt 23 .... lt/transformgt
Mimics AOP code weaving at join-points. AOP uses
regex to identify points
AOP around () advice can be employed incurs
run-time overhead though

• Annotations help identify join points relieve
  FOCUS from implementing a full fledged language
  parser
• FOCUS is language agnostic, i.e., ltdatagt can be
  written in any language

42
Challenge Overview (1/2)

• Model Driven Development (MDD) approaches capture
  PLA characteristics
• Functional Type of protocol, concurrency
  strategy
• QoS end-to-end latencies, jitter, throughput

• Middleware still general-purpose, i.e., provides
  code for supporting all applications
• Ahead of time system information is not used to
  customize the middleware

43
Challenge Overview (2/2)

• Middleware Specialization Challenge
• How can the middleware be tailored for the
  specific PLA architecture modeled?
• How can middleware level optimizations identified
  and automated based on PLA system characteristics?

Research addresses this specialization challenge
via Domain Specific Language, tools and process
for specializing middleware for PLA
44
Feature-Oriented CUStomizer (FOCUS) Goals

• Requirements for middleware specialization
  framework
• Generated code should work across different
  compilers, platforms, etc.
• Should not rely on external libraries Aspect J
• Specialized code should not incur
  performance/foot-print overhead due to the
  specialization
• AspectJ Zhang results revealed that performance
  suffered from overhead of aspect libraries
• Shield from tool maturity issues
• AspectC does not work with TAO recently made
  to work with ACE
• Toolkit based on COTS components and technologies
  that are also open-source
• Work across different middleware implementations
  in Java, C, etc.
• Support specialization with evolution, i.e.,
  open-source models

FOCUS Goals Build specialization language, tool,
process to automate middleware specializations
across different platforms
Zhang Resolving Feature Convolution in
Middleware, OOPSLA Conference, Vancouver, 2004
