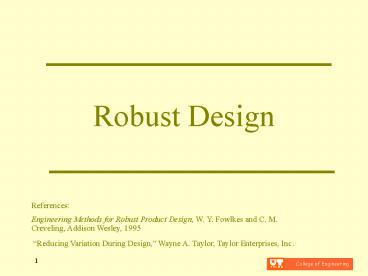

Robust Design

1
Robust Design

References Engineering Methods for Robust
Product Design, W. Y. Fowlkes and C. M.
Creveling, Addison Wesley, 1995 Reducing
Variation During Design, Wayne A. Taylor, Taylor
Enterprises, Inc.
2
Robust Dictionary Definition

• 1 a having or exhibiting strength or vigorous
  health b having or showing vigor, strength, or
  firmness lta robust debategt lta robust faithgt c
  strongly formed or constructed STURDY lta robust
  plasticgt
• Source Merriam-Webster On-Line, 1999

3
Robust Design

• A disciplined engineering process that seeks to
  find the best expression of a product design
• Best means the design is the low-cost solution
  to the product design specifications
• Costs manufacturing cost, life-cycle, losses to
  society
• High-quality products minimize costs by
  performing consistently

4
System Diagram (P-Diagram)
5
P-Diagram

• Input Signal
• energy, material, or information to the system
  that causes a response in the product or process
• Output Response/Quality Characteristic
• Output of the system some attribute that is
  measurable and comparable to design specs

6
P-Diagram

• Control Parameter
• Design factors specified by the design engineers
• Noise
• Uncontrollable factors that cause variation in
  the performance of the product or process

7
Robust Design

• A product or process is said to be robust when it
  is insensitive to the effects of sources of
  variability, even though the sources themselves
  have not been eliminated.
• Noise is the cause of the variability

8
Noise

• Three types of noise factors
• External noise factors
• Unit-to-unit noise factors
• Deterioration noise factors

9
Noise

• External Noise Factors variability that comes
  from outside the product
• Temperature/humidity in which product is used
• Any unintended input of energy (heat, vibration,
  radiation)
• Dust in the environment
• Human error, including misuse

10
Noise

• Unit-to-Unit Noise result of never being able
  to make any two items exactly the same
• Manufacturing process variations
• Process nonuniformity
• Process drift
• Material property variations

11
Noise

• Deterioration Noise internal noise factor
• Aging during use or storage
• Compression set or creep of a washer
• Loss of plasticizer in an auto dashboard
• Weathering of paint on a house

12
Robust Design

• Minimize the effect of noise on the performance
  of the design
• Eliminate the actual source of the noise
• Eliminate the products sensitivity to the source
  of the noise
• Eliminating the source is costly, time-consuming

13
Robust Design

• The objective of the design team is to develop a
  product that functions as intended under a wide
  range of conditions for the duration of its
  design life
• Robust Design is a process to obtain product
  performance that is minimally affected by noise

14
Robust Design Processes

• Concept Design
• Define a system that functions under an initial
  set of nominal conditions
• Parameter Design
• Optimize the concept design identify control
  factor set points that make the system least
  sensitive to noise
• Tolerance Design
• Specify allowable deviations in parameter values
  loosen tolerances where possible and tighten
  where necessary

15
(No Transcript)
16
VARIATIONS
17
Transmission of Variation

• Reducing variation
• identify key input variables affecting output
• establish controls on these inputs
• establish targets (nominals)
• establish tolerances (windows)

18
Robust Design Methods

• Reducing variation by the careful selection of
  targets for inputs (without necessarily
  tightening tolerances!)
• (Collectively) the different methods of selecting
  optimal targets for inputs
• Taguchi Methods
• Response Surface Approach
• Robust Tolerance Analysis

19
Robust Design Methods

• Robust Tolerance Analysis
• Run a designed experiment to model the outputs
  average, then use the statistical approach to
  tolerance analysis to predict the outputs
  variation
• Requires estimates of the amounts that the inputs
  will vary during long-term manufacturing

20
Robust Design Methods

• Response Surface Approach
• Run response surface studies to model the average
  and variation of the outputs separately
• Use results to select targets for the inputs that
  minimize the variation while centering the
  average on the target
• Requires that the variation during the study be
  representative of long-term manufacturing

21
Robust Design Methods

• Taguchi Methods
• Run a designed experiment to get a rough
  understanding of the effects of the input targets
  on the average and variation
• Use results to select targets for the inputs that
  minimize the variation while centering the
  average on the target
• Similar to dual response approach, expect during
  study, inputs adjusted by small amounts to mimic
  long-term manufacturing variation

22
Two-Step Optimization
23
Approaches of Experimentation

• Build-test-fix
• One-factor-at-a-time (the classical approach)
• Designed experiments (DOE)

24
Approaches to Experimentation

• Build-test-fix
• the tinkerers approach
• pound it to fit, paint it to match
• impossible to know if true optimum achieved
• you quit when it works!
• consistently slow
• requires intuition, luck, rework
• reoptimization and continual fire-fighting

25
Approaches to Experimentation

• One-factor-at-a-time
• procedure (2 level example)
• run all factors at one condition
• repeat, changing condition of one factor
• continuing to hold that factor at that condition,
  rerun with another factor at its second condition
• repeat until all factors at their optimum
  conditions
• slow, expensive many tests
• can miss interactions!

26
One-Factor-At-A-Time
Process Yield f(temperature, pressure)
Max yield 50 at 78?C, 130 psi?
27
One-Factor-At-A-Time
A better view of the maximum yield!
Process Yield f(temperature, pressure)
28
Designed Experiments

• Design of Experiments (DOE)
• A statistics-based approach to designed
  experiments
• A methodology to achieve a predictive knowledge
  of a complex, multi-variable process with the
  fewest trials possible
• An optimization of the experimental process itself

29
Major Approaches to DOE

• Factorial Design
• Taguchi Method
• Response Surface Design

30
DOE - Factorial Designs

• Full factorial
• simplest design to create, but extremely
  inefficient
• each factor tested at each condition of the
  factor
• number of tests, N N yx
• where y number of conditions, x number of
  factors
• example 8 factors, 2 conditions each,
• N 28 256 tests
• results analyzed with ANOVA
• cost resources, time, materials,

31
DOE - Factorial Designs - 23
32
DOE - Factorial Designs

• Fractional factorial
• less than full
• condition combinations are chosen to provide
  sufficient information to determine the factor
  effect
• more efficient, but risk missing interactions

33
DOE - Taguchi Method

• Taguchi designs created before desktop computers
  were common
• pre-created, cataloged designs intended to
  quickly find a set of conditions that meet the
  criteria of success
• previous slide an example of an L8 template
• Designs cannot support response surface models
  and are limited to only predicting at the points
  where data was taken

34
DOE - Response Surface RSM

• Goal develop a model that describes a continuous
  curve, or surface, that connects the measured
  data taken at strategically important places in
  the experimental window

35
DOE - Response Surface RSM

• RSM uses a least-squares curve-fit (regression
  analysis) to
• calculate a system model (what is the process?)
• test its validity (does it fit?)
• analyze the model (how does it behave?)

Bond f(temperature, pressure, duration) Y a0
a1T a2P a3D a11T2 a22P2 a33D2
a12TP a13TD a23PD
36
Summary

• How inputs behave and how inputs effect output is
  key to reducing variation.
• Robust design considers variation reduction while
  setting targets - not by arbitrarily reducing
  tolerances
• Start with low-cost tolerances - then selectively
  tighten to meet specifications

37
END

38
Reducing Variation During Design (an example)

• Design problem
• Customer need pump with flow rate between 9 and
  11 ml/min
• Specification pump with nominal flow rate of 10
  ml/min 1 ml/min
• Pump concept
• piston with two valves to control direction of
  flow

39
Pump Design Parameters

• Flow rate through pump, F
• Piston travel (stroke), L
• Motor speed, S
• Piston radius, R
• Amount of backflow through valve, B

40
Pump System Diagram
41
Control Variation by Design

• Reduce variation in output (flow rate F) by
  establishing requirements for inputs (R, L, B, S)
• Requires knowing how inputs behave and how the
  inputs effect the output

42
Variation Transmission Analysis
Pump flow rate
(Eq. 1)
(Knowledge of functional relationship replaces
the screening experiment often required to
determine key input variables)
43
Analysis
Average flow rate, ?F
(Eq. 2)
44
Analysis
?F, standard deviation of the flow rate, F
(Eq. 3)
45
Table 1 Data from Manufacturing and Suppliers
46
Table 2 Process Tolerancesfor Inputs
Max. Std. Dev. from Table 1 Tolerances 1.5 Std
Dev Mean targets for R, L from experience S
calculated (Eq. 1)
47
Determining Flow Rate Variation

• Use process tolerances (Table 2) to determine
  process tolerance for flow rate F
• calculate using Eqs. 2 and 3
• Use six-sigma product tolerance
• Use worst-case Cp and Cpk
• Want six-sigma product tolerance to fit between
  specification limits (equivalent to Cpk exceeding
  1.5)

48
lt 1.5
49
Reduce Flow Rate Variation Through Robustness

• Many different combinations of input targets
  result in a 10 ml/min flow rate
• Robust pump design can be obtained by determining
  targets of inputs maximizing the minimum Cpk
• Optimal set of targets for inputs are
• R 0.1735, L 0.4125, S 16.96 rpm
• (results on next slide)

50
lt 1.5
51
Tightening Tolerances

• Which tolerances to tighten?
• By how much?
• Start by investigating effects of tightening
  different tolerances

52
Table 3 Flow Rate Processes After Tightening
Tolerances
53
Tightening Tolerances

• (refer to Table 3)
• Largest effects achieved by tightening tolerances
  on the motor (S)and the valve (B)
• Cost to achieve tighter tolerances
• Motor current 5 motor ? 20 motor
• Valve current 1 valve ? 2 valve

54
Tightening Tolerances

• Targets reoptimized after change in tolerances
• New set of targets
• R 0.1520
• L 0.4236
• S 22.04 rpm
• Resulting flow rate variation on next slide

55
gt 1.5
