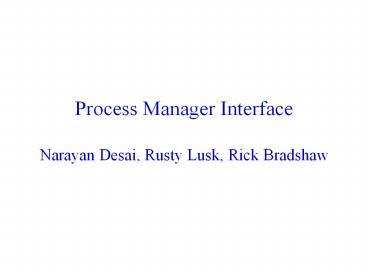

Process Manager Interface Narayan Desai, Rusty Lusk, Rick Bradshaw

1
Process Manager Interface Narayan Desai, Rusty
Lusk, Rick Bradshaw
2
Outline

• PM Functionality
• PM Syntax
• PM Commands
• PM Datatypes
• PM Events
• PM Examples
• PM BNF
• PM Schema

3
Process Manager Functionality

• Starts process groups, with specification of
  environments of application processes, either
  collectively or on a process-by-process basis
• Executable
• Arguments
• Environment variables
• User
• Resource limits
• Hosts for each process
• Working directory
• Queries the state of a running process group,
  returning some startup parameters
• Delivers signals to all processes in a process
  group
• Terminates a process group
• After process group exit, can wait on the group
  to collect exit codes and output.

4
Process Manager Syntax

• The Process Manager uses the less restricted
  syntax style presented elsewhere
• Each message to it does three things
• Describes a process group specification to be
  matched or created
• Conveys a command, with arguments
• Specifies an object to be returned

5
Process Manager Commands

• CreateProcessGroup
• Takes as input a ProcessGroupSpecification object
• Returns a PGID
• GetProcessGroup
• Takes as input a ProcessGroup object which is
  matched against
• Returns a ProcessGroups container object
  containing requested fields from matched process
  group instances
• SignalProcessGroup
• Takes as input a Process Group object which is
  matched against
• Takes as argument a signal name and the scope of
  the signal (top-level processes or also forkees)
• Returns requested fields from the process groups
  signaled

6
Process Manager Commands (cont.)

• KillProcessGroup
• Terminates matching process groups
• Best effort to really kill processes, which may
  require repeated signalling
• Returns the process groups matched
• WaitProcessGroup
• Returns exit code information and stream output
  from matching completed process groups
• Purges such information from the Process Manager
  state

7
Process Manager Datatypes

• ProcessGroupSpecification
• Used as input to CreateProcessGroup
• ProcessGroup
• Used as matching description and returned
  description in other commands

8
Process Manager Events

• Generated when a process group is successfully
  started
• ltEventgt
•   ltComponentgtprocess-managerlt/Componentgt
•   ltMessagegtProcessStartlt/Messagegt
•   ltDatagt29lt/Datagt
• lt/Eventgt
• Generated when a process group terminates
• ltEventgt
•   ltComponentgtprocess-managerlt/Componentgt
•   ltMessagegtProcessEndlt/Messagegt
•   ltDatagt29lt/Datagt
• lt/Eventgt

9
Process Manager Examples - 1

• ltCreateProcessGroupgt
•   ltProcessGroupSpecificationgt
•      ltUsergtdesailt/Usergt
•      ltSizegt8lt/Sizegt
•      ltExecutablegt/bin/falselt/Executablegt
•      ltCWDgt/tmplt/CWDgt
•      ltDiversionsgt
•        ltDiversiongt
•           ltRangegt6-7lt/Rangegt
•           ltExecutablegt/bin/truelt/Executablegt
•           ltEnvironmentgt
•             ltVariablegt
•               ltNamegtLD_LIBRARY_PATHlt/Namegt
•               ltValuegt/local/liblt/Valuegt
•             lt/Variablegt
•           lt/Environmentgt
•           ltArgumentsgt

10
Process Manager Examples - 2

•              ltArgumentgt-vlt/Argumentgt
•           lt/Argumentsgt
•       lt/Diversiongt
•     lt/Diversionsgt
•     ltHostSpecificationgt
•       ltModegtUnorderedlt/Modegt
•       ltValuegtccn1
•                     ccn2
•                     ccn3
•                     ccn4
•                     ccn5
•                     ccn6
•                     ccn7
•                     ccn8
•        lt/Valuegt
•     lt/HostSpecificationgt
•   lt/ProcessGroupSpecificationgt
• lt/CreateProcessGroupgt

11
Process Manager Examples - 3

• ltGetProcessGroupgt
•   ltProcessGroupgt
•     ltPGIDgt29lt/PGIDgt
•     ltProcessesgt
•       ltProcessgt
•          ltHost match'false'/gt
•       lt/Processgt
•     lt/Processesgt
•   lt/ProcessGroupgt
• lt/GetProcessGroupgt

12
Process Manager Examples - 4

• ProcessGroupsgt
•   ltProcessGroupgt
•      ltPGIDgt29lt/PGIDgt
•      ltProcessesgt
•         ltProcessgt
•            ltHostgtccn1lt/Hostgt
•         lt/Processgt
•         ltProcessgt
•            ltHostgtccn2lt/Hostgt
•         lt/Processgt
•         ltProcessgt
•            ltHostgtccn3lt/Hostgt
•         lt/Processgt
•         ltProcessgt
•            ltHostgtccn4lt/Hostgt
•         lt/Processgt
•         ltProcessgt
•            ltHostgtccn5lt/Hostgt
•         lt/Processgt

13
Process Manager Examples - 5

• ltGetProcessGroupgt
•   ltProcessGroupgt
•      ltPGIDgt29lt/PGIDgt
•      ltStatus match'false'/gt
•   lt/ProcessGroupgt
• lt/GetProcessGroupgt
• ltProcessGroupsgt
•   ltProcessGroupgt
•      ltPGIDgt29lt/PGIDgt
•      ltStatusgtFinishedlt/Statusgt
•   lt/ProcessGroupgt
• lt/ProcessGroupsgt

14
Process Manager Examples - 6

• ltWaitProcessGroupgt
•   ltProcessGroupgt
•      ltPGIDgt29lt/PGIDgt
•      ltExitStatusgt
•        ltStatusgt
•            ltCode negate'true'gt0lt/Codegt
•            ltHost match'false'/gt
•        lt/Statusgt
•      lt/ExitStatusgt
•      ltOutputgt
•        ltStreamgt
•           ltName op're'gt stdout stderr lt/namegt
•           ltValue match'false'/gt
•        lt/Streamgt
•      lt/Outputgt
•    lt/ProcessGroupgt
• lt/WaitProcessGroupgt

15
Process Manager Examples - 7

• ltProcessGroupsgt
•   ltProcessGroupgt
•     ltPGIDgt29lt/PGIDgt
•     ltExitStatusgt
•       ltStatusgt
•         ltHostgtccn2lt/Hostgt
•         ltCodegt1lt/Codelt/Hostgt
•       lt/Statusgt
•       ltStatusgt
•         ltHostgtccn6lt/Hostgt
•         ltCodegt255lt/Codegt
•       lt/Statusgt
•    lt/ExitStatusgt
•    ltOutputgt
•       ltStreamgt
•         ltNamegtstdoutlt/Namegt

16
Process Manager Examples - 8

•         ltValuegtprocess 0 on ccn1
• process 1 on ccn2
• process 2 on ccn3
• process 3 on ccn4
• process 4 on ccn5
• process 5 on ccn6
• process 6 on ccn7
• process 7 on ccn8
• lt/Valuegt
•       lt/Streamgt
•       ltStreamgt
•         ltNamegtstderrlt/Namegt
•         ltValue/gt
•       lt/Streamgt
•     lt/Outputgt
•   lt/ProcessGroupgt
• lt/ProcessGroupsgt

17
Process Manager BNF - 1

• InMsg CreateCommand Query
• CreateCommand ltCreateProcessGroupgt
  PGSpecification
•
  lt/CreateProcessGroupgt
• PGSpecification ltProcessGroupSpecificationgt
  PGSattrs
•
  lt/ProcessGroupSpecificationgt
• PGSattrs PGSattr PGSattr PGSattrs
• PGSattr ltFieldNamegtFieldValuelt/FieldNam
  egt
• Query ltArgCmd Argumentsgt ProcessGroup
  lt/ArgCmdgt
•                   ltCommandgt ProcessGroup
  lt/Commandgt
• Command KillProcessGroup GetProcessGroup
  WaitProcessGroup
• ArgCmd SignalProcessGroup
• Arguments Argument Argument
  Arguments
• Argument identifieridentifier
• ProcessGroup ltProcessGroupgt Fields
  lt/ProcessGroupgt
• Fields Field Field Fields
•                   MultiField MultiField
  Fields

18
Process Manager BNF - 2

• Field ltFieldNamegt FieldValue
  lt/FieldNamegt
• FieldName PGIDUserSizeExecutable
• FieldValue identifier
• MultiField ltFieldGroupgt MFields
  lt/FieldGroupgt
• MFields MField MField MFields
• MField ltMFName QualifiersgtMFValuelt/MF
  Namegt
• Qualifiers Qualifier Qualifiers
• Qualifier BooleanKeyBooleanValue
•                        StringKeyStringValue
• BooleanKey 'negate' 'match' 'return'
• BooleanValue 'true' 'false'
• StringKey 'op'
• StringValue 'eq' 'ne' 'lt' 'gt'
  'le' 'ge' 'range' 're'
• MFName HostSpec Environment Diversions
• MFValue identifier

19
Process Manager Schema - 1

• ltxsdschema xmlnsxsd"http//www.w3.org/2001/XMLS
  chema" xmllang"en"gt
•   ltxsdannotationgt
•     ltxsddocumentationgt
•       Process Manager component schema
•       SciDAC SSS project, 2004
•       Andrew Lusk alusk_at_mcs.anl.gov
•       Narayan Desai desai_at_mcs.anl.gov
•     lt/xsddocumentationgt
•   lt/xsdannotationgt
• ltxsdsimpleType name'BooleanType'gt
•     ltxsdrestriction base'xsdstring'gt
•       ltxsdpattern value'truefalse'/gt
•     lt/xsdrestrictiongt
•   lt/xsdsimpleTypegt
• ltxsdsimpleType name'IntegerOps'gt
•     ltxsdrestriction base'xsdstring'gt
•       ltxsdpattern value'eqltgtrangere'/gt

20
Process Manager Schema - 2

• ltxsdsimpleType name'Signals'gt
•     ltxsdrestriction base'xsdstring'gt
•       ltxsdpattern
•       value'ABRTALRMBUSCHLDCLDCONTFPEHUPI
  LLINTIOIOTKILLPIPEPOLLPROFPWRQUITSEGVST
  OPSYSTERMTRAPTSTPTTINTTOUURGUSR1USR2VTAL
  RMWINCHXCPUXFSZ'/gt
•     lt/xsdrestrictiongt
•   lt/xsdsimpleTypegt
• ltxsdattributeGroup name'BaseLRSQuery'gt
•     ltxsdattribute name'match'
  type'BooleanType'/gt
•     ltxsdattribute name'negate'
  type'BooleanType'/gt
•     ltxsdattribute name'return'
  type'BooleanType'/gt
•   lt/xsdattributeGroupgt
• ltxsdcomplexType name'IntegerQueryAttribute'gt
•     ltxsdsimpleContentgt
•       ltxsdextension base'xsdinteger'gt
•         ltxsdattributeGroup ref'BaseLRSQuery'/gt
•         ltxsdattribute name'op'
  type'IntegerOps'/gt
•       lt/xsdextensiongt

21
Process Manager Schema - 3

•       ltxsdextension base'xsdstring'gt
•         ltxsdattributeGroup ref'BaseLRSQuery'/gt
•         ltxsdattribute name'op'
  type'IntegerOps'/gt
•       lt/xsdextensiongt
•     lt/xsdsimpleContentgt
•   lt/xsdcomplexTypegt
• ltxsdcomplexType name'ProcessQueryType'gt
•     ltxsdsequencegt
•       ltxsdelement name'Host' type'StringQueryAt
  tribute' minOccurs'0'/gt
•       ltxsdelement name'PID' type'StringQueryAtt
  ribute' minOccurs'0'/gt
•       ltxsdelement name'Session'
  type'StringQueryAttribute' minOccurs'0'/gt
•     lt/xsdsequencegt
•   lt/xsdcomplexTypegt
• ltxsdcomplexType name'ProcessSet'gt
•     ltxsdchoice minOccurs'1'gt
•       ltxsdelement name'Process'
  type'ProcessQueryType'/gt
•     lt/xsdchoicegt

22
Process Manager Schema - 4

•       ltxsdelement name'Size' type'IntegerQueryA
  ttribute' minOccurs'0'/gt
•       ltxsdelement name'User' type'StringQueryAt
  tribute' minOccurs'0'/gt
•       ltxsdelement name'Status'
  type'StringQueryAttribute' minOccurs'0'/gt
•       ltxsdelement name'Processes'
  type'ProcessSet' minOccurs'0'/gt
•     lt/xsdsequencegt
•   lt/xsdcomplexTypegt
• ltxsdcomplexType name'PGQuery'gt
•     ltxsdchoice minOccurs'1' maxOccurs'unbounded
  'gt
•       ltxsdelement name'ProcessGroup'
  type'ProcessGroupQuery'/gt
•     lt/xsdchoicegt
•   lt/xsdcomplexTypegt
• ltxsdelement name'GetProcessGroup'
  type'PGQuery'/gt
•   ltxsdelement name'KillProcessGroup'
  type'PGQuery'/gt
•   ltxsdelement name'WaitProcessGroup'
  type'PGQuery'/gt
• ltxsdelement name'SignalProcessGroup'gt
•     ltxsdcomplexTypegt

23
