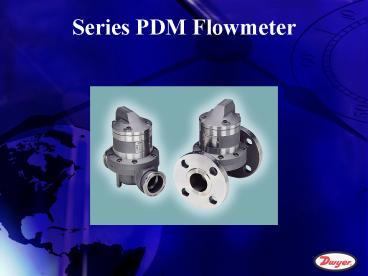

Series PDM Flowmeter

1
Series PDM Flowmeter
2
Series PDM Flowmeter
Overview
Series PDM Flowmeters provide high levels of
accuracy and repeatability for a wide range of
liquids from low viscosity Solvents and
chemicals to viscous oils, greases and food
bases. Low pressure drop allows for economical
pump selection or gravity flow applications.
3
Series PDM Flowmeter
Types of Positive Displacement Meters
Nutating Disc Rotating Valve Oscillating
Piston Oval Gear Rotating Lobe Birotor Rotating
Impeller
4
Series PDM Flowmeter
Principle of Operation
The Series PDM Flowmeter uses the oscillating
piston principle where the passage of liquid
causes a piston to oscillate smoothly in a
circular motion within the measuring chamber.
Each piston cycle passes a known volume of liquid
from the inlet to the outlet port, magnets in the
piston activate the reed switch and the solid
state sensor to provide pulse outputs for remote
flow, measurement and process control.
5
Series PDM Flowmeter
Principle of Operation
The diagram below shows the transition of fluid
from the Inlet Port through the measuring chamber
and then out the Outlet Port.
6
Series PDM Flowmeter
Features

• 316L Stainless steel, Aluminium
• or UPVC construction
• Accuracy 0.5 rate
• Has no stagnate chambers
• Measures High and Low viscosity
• liquids to 1,000,000cp
• No requirement for flow conditioning
• High Pressure models to 350 Bar
• Insensitive to mounting orientation

7
Series PDM Flowmeter
Benefits

• Up to 70 cost saving for an installation
  requiring a stainless steel flowmeter
• Has only one moving part giving extended trouble
  free working life
• Installation flexibility in vertical or
  horizontal pipes, no need for straight pipe runs
  or conditioned flow

8
Series PDM Flowmeter
Benefits

• No modifications are needed when measuring high
  viscosity liquids
• Can be cleaned in place using chemicals or
  controlled steam pressure/temperature
• Extremely compact and comparatively light weight
• Limited spare parts needed to support the product

9
Series PDM Flowmeter
Outputs

• Reed Switch Output - Provides a voltage free
  contact closure. The reed switch is classed as a
  "simple device" and can be used in hazardous
  areas when connected via an approved
  intrinsically safe barrier.
• Square Wave Output - An open collector pulse
  output produced by a solid state Hall effect
  device. This 3-wire device requires 5-24 vdc
  excitation voltage and produces a high resolution
  square wave output.

10
Series PDM Flowmeter
Aluminium Models

• Sizes
• 15 mm (1/2"), 20 mm (3/4"), 25 mm (1"),
• 40 mm (11/2"), 50 mm (2")
• Material
• Aluminium body and manifold, Peek piston and
  bearing
• Flow Ranges
• 10-500 lph (2.6-130 usgph)
• 100-1500 lph (26-396 usgph)
• 120-3000 lph (32-790 usgph)
• 250-8000 lph (56-2115 usgph)
• 700-20,000 lph (185-5280 usgph)

11
Series PDM Flowmeter
Aluminium Models

• Process Connections
• Threaded BSPP/NPT female, Flanged
  ANSI/DIN standards
• Pressure Rating
• 20-80 Bar (standard)
• Temperature Rating
• -40 to 150C

12
Series PDM Flowmeter
Aluminium Models

• Outputs
• Reed switch, NPN Open Collector
• Options
• Exd. and I.S. operation
• Integral or remote high speed preset batch
  controller
• Integral or remote battery power flow rate
  totaliser with scaled output, analog and flow
  alarm outputs

13
Series PDM Flowmeter
Stainless Steel Models

• Sizes
• 15 mm (1/2"), 20 mm (3/4"), 25 mm (1"),
• 40 mm (11/2"), 50 mm (2")
• Material
• 316L SS body and manifold, peek piston and
  bearing
• Flow Ranges
• 10-500 lph (2.6-130 usgph)
• 100-1500 lph (26-396 usgph)
• 120-3000 lph (32-790 usgph)
• 250-8000 lph (56-2115 usgph)
• 700-20,000 lph (185-5280 usgph)

14
Series PDM Flowmeter
Stainless Steel Models

• Process Connections
• Threaded BSPP/NPT female, Flanged
  ANSI/DIN standards
• Pressure Rating
• 38-100 Bar (standard)
• Temperature Rating
• -4 to 150C

15
Series PDM Flowmeter
Stainless Steel Models

• Outputs
• Reed switch, NPN Open Collector
• Options
• Exd. and I.S. operation
• Integral or remote high speed preset batch
  controller
• Integral or remote battery power flow rate
  totaliser with scaled output, analog and flow
  alarm outputs

16
Series PDM Flowmeter
High Pressure Stainless Steel Models

• Sizes
• 15 mm (1/2"), 20 mm (3/4"), 25 mm (1"),
• 40 mm (11/2")
• Material
• 316L SS body and manifold, peek piston and
  bearing
• Flow Ranges
• 10-500 lph (2.6-130 usgph)
• 100-1500 lph (26-396 usgph)
• 120-3000 lph (32-790 usgph)
• 250-8000 lph (56-2115 usgph)

17
Series PDM Flowmeter
High Pressure Stainless Steel Models

• Process Connections
• Threaded BSPP/NPT female, Flanged
  ANSI/DIN standards
• Pressure Rating
• Up to 350 Bar Max.
• Temperature Rating
• -4 to 120C

18
Series PDM Flowmeter
High Pressure Stainless Steel Models

• Outputs
• Reed switch, NPN Open Collector
• Options
• Exd. and I.S. operation
• Integral or remote high speed preset batch
  controller
• Integral or remote battery power flow rate
  totaliser with scaled output, analog and flow
  alarm outputs

19
Series PDM Flowmeter
Hygienic Stainless Steel Models

• Sizes
• 15 mm (1/2"), 20 mm (3/4"), 25 mm (1"),
• 40 mm (11/2"), 50 mm (2")
• Material
• 316L SS body and manifold, peek piston and
  bearing
• Flow Ranges
• 10-500 lph (2.6-130 usgph)
• 100-1500 lph (26-396 usgph)
• 120-3000 lph (32-790 usgph)
• 250-8000 lph (56-2115 usgph)
• 700-20,000 lph (185-5280 usgph)

20
Series PDM Flowmeter
Hygienic Stainless Steel Models

• Process Connections
• Threaded BSPP/NPT female, Tri-clover
  hygienic BS/DIN standards
• Pressure Rating
• 50-100 Bar standard
• Temperature Rating
• -4 to 150C

21
Series PDM Flowmeter
Hygienic Stainless Steel Models

• Outputs
• Reed switch, NPN Open Collector
• Options
• Exd. and I.S. operation
• Integral or remote high speed preset batch
  controller
• Integral or remote battery power flow rate
  totaliser with scaled output, analog and flow
  alarm outputs

22
Series PDM Flowmeter
PVC Models

• Sizes
• 25 mm (1")
• Material
• UPVC body and manifold, carbon filled Teflon
  piston
• and bearing
• Flow Ranges
• 120-3000 lph (32-790 usgph)

23
Series PDM Flowmeter
PVC Models

• Process Connections
• Threaded BSPP/NPT female
• Pressure Rating
• 4 Bar
• Temperature Rating
• 40C
• Outputs
• Reed switch, NPN Open Collector
• Options
• I.S. operation

24
Series PDM Flowmeter
Applications

• Chemical Manufacturing or handling, specifically
  solvents or acids
• Pharmaceutical, specifically medical and cosmetic
  liquids
• Pet Food manufacturing, stock feed and poultry
  plants injecting food supplements and colourings

25
Series PDM Flowmeter
Applications

• Container filling machines and bottling equipment
  manufacturers
• Industries requiring in-line cleaning,
  confectionery, food and beverage
• Petroleum refineries, petroleum distribution,
  lube oil and grease dispensing
• Hydraulics and hydraulic driven injection systems
• Paper manufacturing and related printing ink
  applications

26
Series PDM Flowmeter
Competition

• McNaught M Series
• 0.5 Accuracy
• Sizes from 8 mm (1/4") to 50 mm (2")
• Flow Ranges from 30 to 300 LPM (below 5CPS),
• 15 to 350 LPM (above 5CPS)
• Maximum viscosity 1000 Centipoise
• Maximum Pressure 55 Bar (SS version)

27
Series PDM Flowmeter
Competition

• Badger
• VAF
• Liquid Controls
• Aquametro
• Oval

28
Series PDM Flowmeter
Summary

• 0.5 Accuracy
• Viscous Fluids
• High Pressure options
• Explosion Proof/I.S. available
• Rate Totaliser can be integral to unit
• Sizes from 15 mm to 50 mm
• Broad Application across many
• markets
