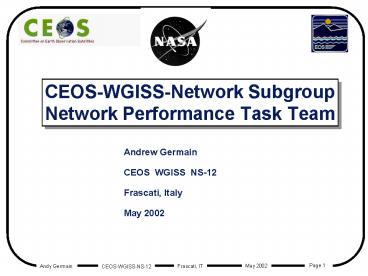

CEOS-WGISS-Network Subgroup Network Performance Task Team

1
CEOS-WGISS-Network SubgroupNetwork Performance
Task Team
Andrew Germain CEOS WGISS NS-12 Frascati,
Italy May 2002
2
Network Performance Testing Highlights

• Daily results now online
• http//corn.eos.nasa.gov/performance/Net_Health/CE
  OS_list.html
• Includes results from Norway, NASDA, and Thailand
• Connectivity continues to improve
• European networks upgraded connectivity to US
  Geant, Surfnet
• Abilene and CANet3 providing International
  Transit NY lt--gt Chicago
• AMPATH Connected to Brazil and Argentina
• Australia AARnet connected to Abilene (PNW)
• Testing Changes
• Restarted testing to Israel, JRC, Russia (CAO),
  KNMI, EUMETSAT
• All UNEP hosts deactivated (Norway test source
  stopped in April)
• Looking for a replacement European host
• Testing from NASDA temporarily stopped 17 January
  '02
• Hope to resume after reconfiguration
• New Performance Tool Web100
• Use with Iperf or others -- simplifies analysis

3
Virtual CEOSnet - April 2002
Nairobi Bangkok SJCR Beijing
KNMI
Norway
Israel
UNInet
CAO
NASDA
RBnet
Moscow
UNEP
MAFF
NorduNet
Rostelecom
IRE-RAS
Geneva
CCRS
Tokyo XP
Trans PAC
IMNet
APAN
NYC
Swisscom
Milan
ESRIN
GARR
GEANT
DFN
DLR
SInet
NY
DFN
EDC
AIT
GISTDA
UNINET
RAL
UUNet
(Thailand)
MSFC/UAH
LA
Oxford
RFD
MAX
UCL
Abilene
UMD
GSFC
PAO (Philipines)
DC
JRC
PNW
CSIRO (Australia)
Sprintlint (Paris)
MIA
Miami
Test Nodes
France Telecom
INPE (Brazil)
Active
ANSP

Inactive
EUmetsat
CONAE (Argentina)
CNES
Source
4
CEOS GOIN Performance Test Sites
UNEP
RAL,UCL, Oxford
EUMETSAT
IRE-RAS
CAO
CCRS
DLR
KNMI
JRC
ESRIN
UNEP
GSFC
NASDA
ISRAEL
AIT, GISTDA
NAMRIA
ISRO
UNEP
UNEP
UNEP
UKM
INPE
CONAE
CSIRO
CEOS Sink
GOIN Sink
Sink Source
5
Site Update Argentina

• CONAE
• 3 different routes since October '01
• Currently via GBLX from Miami
• BH range 500-1600 kbps
• Retina Research Network
• Now also testing via Abilene / AMPATH to Retina
  test node
• Performance is window size limited -- steady at
  1.4 mbps

6
Site Update Australia

• CSIRO New Route
• now via Abilene / PNW / AARnet
• Testing down from 28 Feb '02 until 13 April '02
• BHM now 1.6 mbps, but peaks to 6 mbps

7
Site Updates - Brazil

• INPE (Sao Paolo) Upgrade to AMPATH
• NASA dedicated 64kbps circuit (IDN) discontinued
  Jan '01
• IDN node down since 2 July 01
• HSB Route via Abilene --gt AMPATH (Mia) --gt ANSP
• Performance 500-1700 kbps (median 1100)

8
Site Updates - Canada

• CCRS (Ottawa) Small improvements
• Route via Abilene, StarTap (Chicago), CANet3,
  Onet
• Peaks over 6 mbps -- BH Median 5 mbps (prev 5
  peaks, 4.4 BHM)
• Also testing to Univ. Toronto via similar route
  -- median 19 mbps!

9
Site Update - Germany

• Germany
• DLR (Oberpfaffenhofen) Test host unresponsive
  since July '99
• Route via Geant, DFN
• Eumetsat (Darmstadt)
• Performance testing started running -- during
  meeting there!
• Route via KPNQwest to Darmstadt
• Performance BHMedian 500 kbps, typical
  nighttime 1.3 mbps

10
Site Updates - Israel

• Tel Aviv University
• Testing resumed April '02
• Performance 0.5-3.0 mbps (was 0.2 - 1.7 mbps in
  '00)
• Route via Abilene peering with ILAN in Chicago
• ILAN circuit being removed -- will share common
  Geant Connection

11
Site Updates Italy

• ESRIN - Frascati Performance stable
• Datasink stopped Jan '01 -- restarted June 28
• BHM from GSFC stable at 800 kbps (but had dropped
  to 400 in Jan)
• Typical daily range 300-1400 kbps (was 100-1500
  kbps in Jan)
• Route stable via MAX, Abilene to NY, Geant, GARR
• From Norway 350 kbps -1.1 mbps via UNInet,
  Nordunet, Geant, GARR
• Testing from NASDA (until Jan '02) 190-730 kbps

12
Site Updates Italy (2)

• JRC - Ispra Testing restarted Feb '01
• BH Median about 700 kbps (was 500 Kbps until
  June, but 1000 in '00)
• Average daily peak is about 800 kbps (but was
  1700 in '00)
• Route AlterNet all the way from DC.
• From NASDA (until Jan '02) steady 350 kbps

13
Site Updates Japan

• NASDA EOC - Hatoyama
• NASA-NASDA removed private E1 and installed
  private 3 mbps ATM service in Feb '00 -- for
  mission support only.
• Performance stable - typically 1.6 mbps (window
  limited)
• Route via STAR TAP (Chicago) / TransPAC / IMnet
  for US Science data
• NASDA source and sink at EOC down since 17 Jan
  '02
• Performance was stable - typically 1.2 Mbps
  (740-1290 kbps)
• Limited by NASDA circuit to Tokyo XP
• Testing to NASDA from Thailand
• GISTDA via APAN / IMnet -- typ 825 kbps
  (460-1410)
• AIT via SInet / IMnet - 800 kbps typ. (400-1360)
• NASDA testing to several CEOS sites is available
  on the Web site
• Also down for reconfiguration

14
Site Updates Japan (2)

• GSFC to Tokyo-XP via Chicago / TransPac / APAN
• 9-19 mbps (median 14)
• 1 mbps from GISTDA

15
Site Update - Netherlands

• KNMI
• Testing resumed 30 Jan '02 after upgrades
• Route from GSFC via Abilene to SurfNet in Chicago
  (was NY)
• Median Performance 40 mbps!

16
Site Updates - Russia

• IRE-RAS - Moscow Last Tested Oct - Dec 00
• Route is via Internet -- Rostelecom in NY
• Performance was BHM 75 kbps, Daily range 13 -
  30 kbps
• CAO - Moscow SAGE III Project
• Dual Routes since Nov '01
• NASA dedicated circuit very steady 150kbps
• via NY to Rostelecom/RBnet -- 1.1 mbps typ
  (600-1300)

17
Site Updates Thailand

• AIT via Abilene-TransPac-APAN- AI3
• 50- 650 kbps, BHM 400
• Testing from NASDA until Jan '02 400-1500 kbps,
  BHM 1050
• GISTDA (NRCT) Multiple Routes
• July '01 34-1900 kbps, BHM 80
• Aug-Sept '01 270-4300 kbps, BHM 1400
• Oct '01 - Mar '02 13-400 kbps, BHM 44
• via Commodity Route UUNet-Teleglobe-Inet
• 3-18 Apr '02 360-1470 kbps, BHM 620
• Testing from NASDA until Jan '02 700-1500 kbps,
  BHM 1100
• RFD via commodity Internet Host down since 12
  April '02
• 14-110 kbps, BHM 50
• UNINET via Abilene peering in LA Datasink since
  since Nov '01
• 200 kbps - 2.2 mbps, BHM 400 kbps
• serious daily congestion

18
Site Updates Thailand
19
Site Updates UK

• From GSFC via Abilene to JAnet in NY
• JAnet core (London) Stable at 28 mbps since 6
  Nov '01
• Was 10 mbps until 19 Aug '01
• NY peering reconfigured again
• UCL 3.9 mbps typ (2.8-4.9) -- steady!
• Private E1 removed in '01
• Oxford 4.8 mbps typ (3.7-5.3) -- also steady!
• RAL 14.0 mbps typ (6.6-19.9)
• From UNEP Norway to JAnet core
• UNInet to Nordunet to Geant to Janet
• Performance 2.7 - 4.3 mbps
• Was steady at 600-1200 kbps until 17 Nov '01

20
Site Updates UK
21
Site Updates UNEP

• Norway test host deactivated April '02
• Route from GSFC via Abilene Nordunet, UNInet
  since December '00
• Performance from GSFC 1.1-2.9 mbps
• Geneva test host deactivated October '01
• Route from GSFC as of 30-Jun-01 to UNEP Norway,
  then via satellite
• Performance from GSFC 50-115 kbps
• Was 700-1300 kbps until June '01
• From Norway vai single UNEP satellite hop. Also
  50-115 kbps
• via satellite from Norway
• Beijing Still running!
• Performance from GSFC 30 - 160 kbps since
  10-March-01
• Similar performance from Norway
• Nairobi test host deactivated April '02
• Performance testing stopped 9 '00 -- performance
  was 75-500 kbps
• Bangkok test host deactivated November '01
• Performance from GSFC 32-100 kbps since Aug '01
• Similar results from Norway
• Costa Rica test host deactivated November '01
• Performance 40-100 kbps since 30-June-01

22
Site Updates UNEP
23
CEOS Results Summary
24
Web 100

• New Network Performance tool
• Available from http//www.web100.org
• Runs on a linux box -- Web100 kernel
• Allows Applications to access network metrics
• Runs with modified version of Iperf
• Reports network metrics for tests run
• Makes inferences about bottlenecks Sender,
  network, or receiver
• Also has GUI for real time monitoring
• Or can use API to access metrics directly
