Background for cell propulsion

1

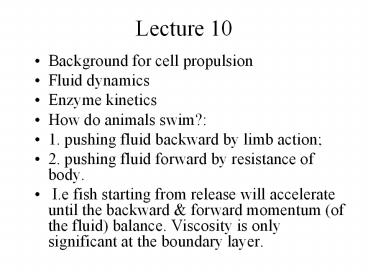

Lecture 10

• Background for cell propulsion
• Fluid dynamics
• Enzyme kinetics
• How do animals swim?
• 1. pushing fluid backward by limb action
• 2. pushing fluid forward by resistance of body.
• I.e fish starting from release will accelerate
  until the backward forward momentum (of the
  fluid) balance. Viscosity is only significant at
  the boundary layer.

2
Cell Propulsion

• Small scale phenomenon slow velocities driven by
  surface forces pressure and viscous stress.
  Fluid resistance is significant, and balances
  propulsive force.
• Motion of a body depends on the ratio of viscous
  and inertial effects Reynolds number Small
  for cells, large for almost all animals. Cellular
  world is ruled by friction.

3

• Reynolds number quantifies the relative
  magnitudes of frictional and inertial forces

4
(No Transcript)
5
Cellular Motors

• Molecular motors must move (swim) in fluids,
  where most of the work is dissipated
• What forces must they overcome?
• Where do the motors get their fuel?
• How do they exhaust spent fuel?
• What is the efficiency?

6
Creature R
Bacteria 10-4
Spermatozoa 10-2
Flying Insects Birds 104 105
7
Oscillatory muscles
Stretch activation
Synchronous
Asynchronous
8
Stretch- activated currents
9
Sliding filamentds
10
Myosin

• 5.3 pN for each myosin molecule
• 100 molecules per filament.
• Each filament has c.s.a. of 1.8 X 10 15 m2 in
  the relaxed muscle.

11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
Strain in solids and fluids
A
f
d
17
Sample fluid properties
When f gt fcrit- inertial forces dominate
18
Swimming is it worth it?

• Cilium with velocity, v, length, d, time scale
• Diffusion time scale
• Swimming time, ts should be lt tD

19
Viscous flow

• Newtonian fluids are isotropic
• What is a viscous fluid?
• When flt fcrit

Shear
Planar geometry
20

• I.e., 1 mm cilium, D 10-5 cm2/sec,
• so vgt 103 mm /sec
• stirring and swimming is not energetically
  favorable for nutrition.

21
(No Transcript)
22
(No Transcript)
23
Comparative motors
24
(No Transcript)
25
Rotary Cellular Motors

• The rotary mechanism of ATP synthase , Stock D,
  Gibbons C, Arechaga I, Leslie AGW, Walker
  JECURRENT OPINION IN STRUCTURAL BIOLOGY ,10 (6)
  672-679 DEC 2000
•
• 2. ATP synthase - A marvellous rotary engine of
  the cell, Yoshida M, Muneyuki E, Hisabori
  TNATURE REVIEWS MOLECULAR CELL BIOLOGY 2 (9)
  669-677 SEP 2001
•
• 3. The gamma subunit in chloroplast F-1-ATPase
  can rotate in a unidirectional and
  counter-clockwise manner Hisabori T, Kondoh A,
  Yoshida M FEBS LETTERS 463 (1-2) 35-38 DEC 10
  1999
•
• 4. Constructing nanomechanical devices powered by
  biomolecular motors.C. Montemagno, G Bachand,
  Nanotechnology 10 225-2312, 1999.

26
(No Transcript)
27
(No Transcript)
28
F1 ATPase A rotary motor

• Can either make or break ATP, hence is reversible
• Torque of 40 pN-nM work in 1/3 rev. is 80 pn-nM
  (40 2p/3) equivalent to free energy from ATP
  hydrolysis
• Can see rotation by attaching an actin filament

29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
Elasticity

• Nano versus macro elasticity
• Behaviour relative to kT Stretch a rubber band
  and a string of paper clips.
• Significant for The nanometer-scale monomers of a
  macromolecule, but not for a string of paper
  clips. The retracting force exerted by a
  stretched rubber band is entropic. It increases
  disorder.
• Do most polymers have persistence lengths longer
  than their total (contour) length?

35

• When Lgtgt x, the chain has many bends and is
  always crumpled in solution the FJC model
  applies, with each link approximated as 2 x, and
  perfectly flexible joints.
• To count all possible curved states in a
  smooth-bending rod in solution- its a WLC-
  supercoiling is possible.

36

• Promoters have different abilities to uncoil
• Twisting DNA torsional buckling
  instability
• Unwinding and causes local denaturation
• Many motors are needed RNA plymerase, DNA
  polymerase 100 nucleotides/sec.
• Forces (pN) can stop transcription

37
Mechano - regulation

• Growth, proliferation, protein synthesis, gene
  expression, homeostasis.
• Transduction process- how?
• Single cells do not provide enough material.
• MTC can perturb 30,000 cells and is limited.
• MTS is more versatile- more cells, longer
  periods, varied waveforms..

38
(No Transcript)
39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43
Markov Chains

• A dynamic model describing random movement over
  time of some activity
• Future state can be predicted based on current
  probability and the transition matrix

44
(No Transcript)
45
Transition Probabilities
Todays Game Outcome
Win Lose
Win 3/4 1/2
Lose 1/4 1/2
Sum 1 1
Need a P for Todays game
Tomorrows Game Outcome
46
Grades Transition Matrix
This Semester
Grade Tendencies
To predict future Start with now What are the
grade probabilities for this semester?
Next Semester
47
Markov Chain
Intial Probability Set independently
48
Computing Markov Chains
A is the transition probability A .75 .5
.25 .5 P is starting Probability P.1
.9 for i 120 P(,i1)AP(,i) end
49
(No Transcript)
