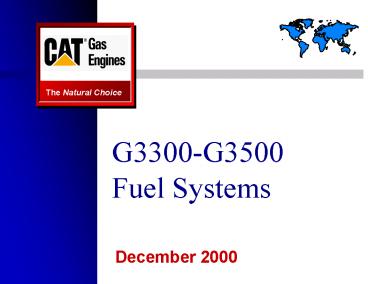

G3300-G3500 Fuel Systems
December 2000

2
gas
Carbureted Fuel Systems G3500 - G3300

• gas shut-off valve
• gas pressure regulator
• load adjustment valve
• carburetor

The Natural Choice
3
Gas Shut-off Valve

• Provides positive shut-off of fuel supply
• Located at fuel supply connection

gas shut-off valve

The Natural Choice
4

• Gas Shut-off Valve

5
Gas Pressure Regulator
balance line

• Maintains a fixed pressure difference between
  carburetor air inlet and carburetor fuel supply

gas pressure regulator

The Natural Choice
6

• Gas Pressure Regulator

7
Mixture Adjustment Valve

• Adjusts air/fuel ratio at full load
• Located on or near carburetor

mixture adjustment valve

The Natural Choice
8

• Mixture Adjustment Valve

9
Carburetor
carburetor

• Mixes volume of fuel per volume of air
• Effective for a limited range of LHV's
• Requires a constant fuel supply pressure

10

• Carburetor

11

• Fuel System Operation

12

high pressure gas fuel system
13

low pressure gas fuel system
14
Fuel System Operation

• Air supplied to carburetorturbo compressor
  provides boost for more power
• Fuel supplied to carburetorgas shut-off valve,
  regulator, balance line
• Air/fuel mixture supplied to cylindercarburetor,
  throttle
• Combustion cycle in cylindervalves, spark plug,
  piston
• Exhaust routed through turbochargerturbine uses
  exhaust energy to drive compressor

The Natural Choice
15

• High vs. Low Pressure Gas

• Locates carburetor (mixer and throttle) after
  turbocharger
• Shorter fuel path means better transient response
• Turbo works less, aftercooler heat rejection is
  lower

high pressure gas fuel system layout
16

• High vs. Low Pressure Gas

• Mixer located before turbocharger, throttle after
• Lower fuel pressure meets building code
• Aftercooler is exposed to fuel
• Inlet air temp can affect air/fuel ratio

low pressure gas fuel system layout
17
Air-To-Fuel Heat Exchanger

• Equalizes air and fuel temperatures to maintain
  air/fuel ratio as ambient temperature changes
• Requires low pressure gas

18
Air-To-Fuel Heat Exchanger

• Air to fuel heat exchanger

The Natural Choice
19

• Air/Fuel Ratio Control

air/fuel ratio control

• Active control monitors engine operating
  parameters to maintain desired air/fuel ratio as
  conditions change
• Effective for a limited range of LHV's

20

• Air/Fuel Ratio Control

• Active control reduces variability due to fuel
  and environment
• constant emissions with varying load
• lower emissions
• higher ratings
• Tightly controlled emissions levels allow
  catalyst operation without fouling
  (TA-stoichiometric engines with aftermarket AFRC)

21
Air / Fuel Ratio Control G3500 High Pressure Gas
AFRC

• G3500 high pressure gas system layout

The Natural Choice
22
Air / Fuel Ratio Control G3500 High Pressure Gas
AFRC

• Price list arr. for high pressure gas industrial
  G3516 LE and G3512 LE
• Maintains NOx at constant level from 100-50
  load and across lug range
• Effective for fuels 850-1275 btu/scf(33.4-50.1
  MJ/Nm )
• Electronic governoris integral to system

3

The Natural Choice
23
Optional Fuel Systems

• Vaporized propane
• Low energy biogas
• landfill gas
• digester gas
• Dual gas fuel systems

24

• Optional Fuel Systems
• Fuel System Availability

std standard opt optional ser
special engineering request n/a not available
25
Dual Gas Fuel System

• Dual gas regulators for high pressure gas TA or NA

secondary fuel regulator load adjustment
valve (high energy fuel)
primary fuel regulator (low energy fuel)

The Natural Choice
26
Dual Gas Fuel System

• Provides backup fuel system to allow operation in
  the event of failure of the primary fuel system
• Engine configuration must be compatible for
  operation on either fuel
• Availability of dual gas systems from the factory
  depends on the engine family and fuel types
  please consult an applications engineer for help

27
Dual Gas Fuel System

• High pressure/low pressure system(available on
  G3500 only)

The Natural Choice
28
Dual Gas Fuel System

• Fuel switching equipment must be provided by the
  customer
• Ignition timing changes for different fuel must
  be accommodated
• Engine ratings must be determined for both fuels

29
Fuel System Considerations

• Fuel pressure provided to the regulator must meet
  specifications(see chart or price list
  description)
• Gas pressure regulators require fuel temperatures
  between 150F to -20F
• Fuel filters are required to avoid potential
  engine damage
• particles
• liquids

30
Fuel System Requirements
Gas Supply Pressure
psi
kPa

• G3300
• low pressure gas
• high pressure gas
• G3400
• low pressure gas
• high pressure gas
• G3500
• low pressure gas
• high pressure gas
• low emission (81)
• low emission (111)
• stoichiometric TA
• naturally aspirated
