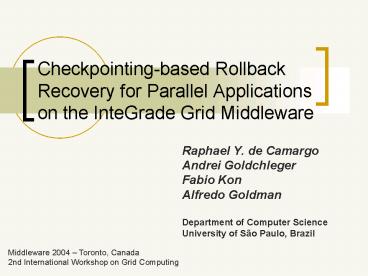

Checkpointing-based Rollback Recovery for Parallel Applications on the InteGrade Grid Middleware

1
Checkpointing-based Rollback Recovery for
Parallel Applications on the InteGrade Grid
Middleware

• Raphael Y. de Camargo
• Andrei Goldchleger
• Fabio Kon
• Alfredo Goldman
• Department of Computer Science
• University of São Paulo, Brazil

Middleware 2004 Toronto, Canada 2nd
International Workshop on Grid Computing
2
Summary

• Introduction
• InteGrade Grid middleware
• BSP Computing Model
• Checkpointing-based Rollback Recovery
• Checkpointing Infrastructure
• Preliminary Experiments
• Conclusions

3
Introduction

• Grid Computing
• Grid computing allows the leveraging and
  integration of computer resources distributed
  across LANs and WANs
• Besides dedicated computing resources, it is also
  possible to use idle computing power from
  commodity workstations (opportunistic computing)

• Challenges
• Environment composed of shared user workstations
  spread across many different LANs.
• Machines may fail, become unaccessible, or may
  switch from idle to busy very rapidly
• Some mechanism for fault-tolerance is a major
  requirement for such a system.

4
InteGrade Grid Middleware

• Objectives
• Use idle computing power of commodity
  workstations (opportunistic computing)
• Allow organizations to increase their available
  computing power without buying extra hardware
• Ensures the quality of service of machine owners
  sharing its computing resources

• Implementation Status
• Basic architecture already implemented
• Uses CORBA distributed object technology for
  communication
• Provides support for execution of sequential, BSP
  and bag-of-tasks applications

5
InterCluster InteGrade Architecture

• GRM (Global Resource Manager)
• Manages the grid resources and schedules
  applications for execution
• ASCT
• Allows the submission and controlling of
  applications on the Grid
• LRM (Local Resource Manager)
• Manages a nodes resources
• Runtime Libraries
• Provide support for running parallel applications

6
BSP Parallel Computing Model

• Computation is performed using a sequence of
  parallel supersteps
• Each superstep is composed of computation and
  communication, with a synchronization barriers in
  the end
• All data from communication is available to other
  processes only in the next superstep
• Two communication Mechanisms
• Direct Remote Memory Access (DRMA)
• Bulk Synchronous Message Passing (BSMP)

7
Checkpointing-based Rollback Recovery

• Checkpointing
• Consists in periodically saving the application
  state into a checkpoint, so that its state can be
  recovered from it
• Checkpointing-based Rollback-Recovery
• Process of reinitializing an application from an
  intermediate execution point after a failure is
  detected

• Two approachs for checkpointing
• System-level
• - The memory space and processor registers from
  an application are saved into the checkpoint.
• Application-level
• - The application is responsible for providing
  the data to be saved and reconstructing its state
  from the checkpoint.

8
Application-level checkpointing

• The application is reponsible for
• Providing which data needs to be saved
• Recovering its state from a previous checkpoint

• Advantages
• Semantic information about data being saved
  Possibility of generating portable checkpoints
• Only the necessary data for recovering
  application state needs to be saved

• Disadvantages
• Need to instrument source-code with
  checkpointing code
• Necessary to have access to application
  source-code
• Cannot generate forced checkpoints

9
Checkpointing of Parallel Applications

• In case of parallel applications we must consider
  the depencies among application processes
  generated by message exchanges

• Global checkpoint is a collection contaning
  checkpoints from every application process. In
  the diagram, the global checkpoint s1 is
  inconsistent while global checkpoint s2 is
  consistent.
• BSP applications consistency can be guaranteed
  by generating the checkpoints after the
  synchronization phases.

10
Checkpointing Infrastructure

• Pre-Compiler
• Instruments a C/C application source-code with
  checkpointing code
• Runtime libraries
• Allows saving the application state into a
  checkpoint and recovering the data from a
  previous checkpoint
• ExecutionMonitor
• Keep information about applications running on
  the grid, allowing the restarting of these
  applications in case of failures.

11
PreCompiler

• Based on OpenC. Permits that we use
  compile-time reflection to instrument an
  application source-code with checkpointing code
• Needs to modify application code in order to save
  the following data
• Execution Stack contains runtime data from the
  active functions in a particular moment during
  application execution
• Position Counter the current position in the
  program
• The Heap contains memory chuncks allocated by
  commands such as malloc and new
• Global variables

12
Saving and Recoveringthe Execution Stack State
Execution Stack
local variables
control information
function parameters
local variables
control information
function parameters

• Execution stack state
• Not directly accessible from application code.
• Saving the execution stack state
• Save a list of the currently active functions
  and the values of their local variables.
• Recovering the execution stack state
• Call the functions in the saved list, declare
  the local variables and recover their values from
  the checkpoint. The remaining code is skipped.
• Position Counter
• Process state will only be saved in certain
  points in the source code, marked by a call to
  some function, such as checkpoint_candidate()

13
Saving Local Vars and Pointers

• Local Variables
• Auxiliary stack keeps the address of local
  variables that are currently in scope.
• Local variable addresses are pushed into the
  stack just after their declaration, and removed
  when the variables leave scope
• During checkpoint generation, the values
  contained in these addresses are saved in the
  checkpoint.

• Pointers
• In the case of pointers, it is necessary first
  to dereference the pointer
• When saving pointer with multiple levels of
  indirection it is necessary to follow the pointer
  graph structure
• Special care is necessary with graphs containing
  cycles and when multiple pointers reference the
  same memory chunk

14
Saving the Heap Memory

• HeapManager
• Mantains a list of currently allocated chunks of
  memory
• Includes the memory address, its size, and a flag
  that indicates if that chunk has already been
  saved during checkpoint generation
• Updated before memory allocation calls such as
  malloc and free for C and new and delete for C.

15
Classes, Structures and BSP Calls

• BSP
• The bsp_begin and bsp_synch standard functions
  are replaced by functions from the checkpointing
  library
• During reinitialization, calls to functions that
  modify the state of the BSP library must be
  reexecuted.
• (e.g., bsp_pushregister)

• Structures
• Saved in the same way as local vars.
• Must follow the pointers present in the
  structure.
• Classes
• Use introspection to add methods for saving and
  restoring the class members.

16
Precompiler Example of Instrumented Code

• int function ()
• int lastFunctionCalled -1
• int localVar 0
• ckp_push_data(lastFunctionCalled,sizeof(int))
• ckp_push_data(localVar, sizeof(int))
• if ( ckpRecovering 1 )
• ckp_get_data(lastFunctionCalled,
  sizeof(int))
• ckp_get_data(localVar, sizeof(int))
• if( lastFunctionCalled 0 )
• goto ckp0
• // Do computations (...)
• ckp0
• lastFunctionCalled 0
• functionA ( )
• // Do computations (...)
• ckp_npop_data(2)
• return localVar

? Original Code ? Modified Code
17
Checkpointing Runtime Library

• Checkpointing Library
• Provides the functionality for mantaining a
  stack of local variables, managing heap state and
  saving the data to a checkpoint
• Provides a timer that applications can set to
  ensure a minimun time between checkpoints
• Checkpoints are currently architecture dependent
  and saved to file in the file system.

• BSP Ckp Library
• Provides specific functionality for
  checkpointing BSP applications
• bsp_begin_ckp( ) registers some addresses
  necessary for checkpointing coordination and
  initializes the timer.
• bsp_synch_ckp( ) Test if the timer has expired
  and if true, signals the others processes to
  generate a new checkpoint.

18
Application ExecutionMonitoring and
Reinitialization

• LRM
• Captures the exit status of running applications
  and sends to the ExecutionMonitor
• If process was explicitally killed by the signals
  SIGTERM or SIGKILL it is restarted
• BSP Applications
• For BSP applications, all the processes in the
  application are reinitialized

• Execution Monitor
• Contains a list of running applications in the
  nodes from its cluster
• Reschedule new executions with the GRM for
  failed processes
• GRM
• Detects when a node or LRM fails and notifies
  the Execution Monitor
• Report nodes failures to the GRM

19
Preliminary Experiments

• Sequence similarity application
• Compares two sequences of characters and finds
  the similarity among them using given criteria.
• Used in bioinformatics to compare sequences of
  DNA.
• Was parallelized using the BSP computing model

tmin nckp ttotal torig ovh
Experiments were performed on a cluster of 10
1.4GHz machines connect by a 100Mbps Fast
Ethernet network.
600s 0 339.7s 339.9s 0
60s 5 347.1s 339.9s 2.1
10s 23 371.9s 339.9s 9.4
20
Conclusions

• We described an checkpointing-based rollback
  recovery mechanism for applications running in
  the InteGrade Grid middleware
• This mechanism will allow a better resource
  utilization in the Grid, since it will be
  possible to migrate processes between nodes
• Premiliminary indicates that checkpointing
  overhead can be low enough to be used on
  long-running BSP parallel applications

21
Ongoing Work

• Improve pre-compiler support for C
• Support for portable checkpoints
• Allows better resource utilization In
  heterogeneous environments
• Robust storage system for checkpoints
• Data saved in a distributed way
• Provide some degree of replication to provide
  fault-tolerance
• Implement a efficient process migration mechanism
  on InteGrade
• Can be used for both fault-tolerance and dynamic
  adaptation

22

Questions ?
