Internet Indirection Infrastructure

1

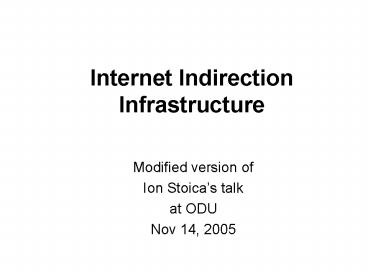

Internet Indirection Infrastructure

• Modified version of
• Ion Stoicas talk
• at ODU
• Nov 14, 2005

2
Motivations

• Todays Internet is built around a unicast
  point-to-point communication abstraction
• Send packet p from host A to host B
• This abstraction allows Internet to be highly
  scalable and efficient, but
• not appropriate for applications that require
  other communications primitives
• Multicast
• Anycast
• Mobility

3
Why?

• Point-to-point communication ? implicitly assumes
  there is one sender and one receiver, and that
  they are placed at fixed and well-known
  locations
• E.g., a host identified by the IP address
  128.32.xxx.xxx is located in Berkeley

4
IP Solutions

• Extend IP to support new communication
  primitives, e.g.,
• Mobile IP
• IP multicast
• IP anycast
• Disadvantages
• Difficult to implement while maintaining
  Internets scalability (e.g., multicast)
• Require community wide consensus -- hard to
  achieve in practice

5
Application Level Solutions

• Implement the required functionality at the
  application level, e.g.,
• Application level multicast (e.g., Narada,
  Overcast, Scattercast)
• Application level mobility
• Disadvantages
• Efficiency hard to achieve
• Redundancy each application implements the same
  functionality over and over again
• No synergy each application implements usually
  only one service services hard to combine

6
Internet Indirection Infrastructure (i3)

• Each packet is associated an identifier id
• To receive a packet with identifier id, receiver
  R maintains a trigger (id, R) into the overlay
  network

Sender
Receiver (R)
7
Service Model

• API
• sendPacket(p)
• insertTrigger(t)
• removeTrigger(t) // optional
• Best-effort service model (like IP)
• Triggers periodically refreshed by end-hosts
• ID length 256 bits

8
Mobility

• Host just needs to update its trigger as it moves
  from one subnet to another

Sender
9
Multicast

• Receivers insert triggers with same identifier
• Can dynamically switch between multicast and
  unicast

id
R1
Receiver (R1)
Sender
id
R2
Receiver (R2)
10
Anycast

• Use longest prefix matching instead of exact
  matching
• Prefix p anycast group identifier
• Suffix si encode application semantics, e.g.,
  location

Receiver (R1)
R1
ps1
R2
ps2
Sender
Receiver (R2)
R3
ps3
Receiver (R3)
11
Service Composition Sender Initiated

• Use a stack of IDs to encode sequence of
  operations to be performed on data path
• Advantages
• Dont need to configure path
• Load balancing and robustness easy to achieve

Transcoder (T)
Receiver (R)
Sender
id
R
idT
T
12
Service Composition Receiver Initiated

• Receiver can also specify the operations to be
  performed on data

Firewall (F)
Receiver (R)
Sender
idF
F
id
idF,R
13
Quick Implementation Overview

• i3 is implemented on top of Chord
• But can easily use CAN, Pastry, Tapestry, etc
• Each trigger t (id, R) is stored on the node
  responsible for id
• Use Chord recursive routing to find best matching
  trigger for packet p (id, data)

14
Routing
15
Routing Table

• Chord uses an m bit circular identifier space
  where 0 follows (2m) -1
• Each identifier ID is mapped on the server with
  the closest identifier that follows ID on the
  identifier circle. This server is called
  successor of ID
• Each server maintains a routing table of size m.
  The ith entry in the routing table of server n
  contains the first server that follows n
  2(i-1)
• A server sends the packet to the closest server
  (finger) in its routing table that precedes ID.
• It takes O(log N) hops to route a packet to the
  server storing the best matching trigger for the
  packet, where N is the number of i3 servers.

16
Routing Example

• R inserts trigger t (37, R) S sends packet p
  (37, data)
• An end-host needs to know only one i3 node to use
  i3
• E.g., S knows node 3, R knows node 35

S
0
2m -1
S
3
20
8..20
7
7
4..7
3
42..3
Chord circle
35
21..35
41
41
36..41
20
37
R
35
R
R
17
Optimization 1 Path Length

• Sender/receiver caches i3 node mapping a specific
  ID
• Subsequent packets are sent via one i3 node

8..20
4..7
42..3
21..35
Sender (S)
36..41
Receiver (R)
18
Optimization 2 Triangular Routing

• Use well-known trigger for initial rendezvous
• Exchange a pair of (private) triggers
  well-located
• Use private triggers to send data traffic

8..20
4..7
42..3
21..35
Sender (S)
36..41
Receiver (R)
19
Examples

• Heterogeneous multicast
• Scalable Multicast
• Load balancing
• Proximity

20
Example 1 Heterogeneous Multicast

• Sender not aware of transformations

S_MPEG/JPEG
send(R1, data)
send(id, data)
Receiver R1 (JPEG)
Sender (MPEG)
id_MPEG/JPEG
S_MPEG/JPEG
send((id_MPEG/JPEG, R1), data)
id
(id_MPEG/JPEG, R1)
21
Example 2 Scalable Multicast

• i3 doesnt provide direct support for scalable
  multicast
• Triggers with same identifier are mapped onto the
  same i3 node
• Solution have end-hosts build an hierarchy of
  trigger of bounded degree

22
Example 2 Scalable Multicast (Discussion)

• Unlike IP multicast, i3
• Implement only small scale replication ? allow
  infrastructure to remain simple, robust, and
  scalable
• Gives end-hosts control on routing ? enable
  end-hosts to
• Achieve scalability, and
• Optimize tree construction to match their needs,
  e.g., delay, bandwidth

23
Example 3 Load Balancing

• Servers insert triggers with IDs that have random
  suffixes
• Clients send packets with IDs that have random
  suffixes

send(1010 0110,data)
S1
1010 0010
S1
A
S2
1010 0101
S2
1010 1010
S3
S3
send(1010 1110,data)
1010 1101
S4
S4
B
24
Example 4 Proximity

• Suffixes of trigger and packet IDs encode the
  server and client locations

S2
S3
S1
send(1000 0011,data)
1000 1010
S2
S3
1000 1101
1000 0010
S1
25
Security Some Attacks
Eavesdropping
R
id
R
S
26
Possible Defense Measures

• End-hosts can use the public triggers to choose a
  pair of private triggers, and then use these
  private triggers to exchange the actual data. To
  keep the private triggers secret, one can use
  public key cryptography to exchange the private
  triggers.
• Instead of inserting the trigger (id, S), the
  server can insert two triggers,
• (id, x) and (x, S) , where x is an
  identifier known only by S .
• An i3 server can easily verify the identity of a
  receiver S by sending a challenge to S the first
  time the trigger is inserted. The challenge
  consists of a random nonce that is expected to be
  returned by the receiver. If the receiver fails
  to answer the challenge the trigger is removed.
• Each server can put a bound on the number of
  triggers that can be inserted by a particular
  end-host.
• When a trigger that doesnt point to an IP
  address is inserted, the server checks whether
  the new trigger doesnt create a loop

27
Traffic Isolation

• Drop triggers being flooded without affecting
  other triggers
• Protect ongoing connections from new connection
  requests
• Protect a service from an attack on another
  services

Transaction server
Victim (V)
28
Traffic Isolation

• Drop triggers being flooded without affecting
  other triggers
• Protect ongoing connections from new connection
  requests
• Protect a service from an attack on another
  services

Transaction server
Victim (V)
Traffic of transaction server protected from
attack on web server
