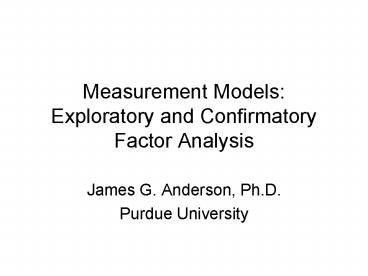

Measurement Models: Exploratory and Confirmatory Factor Analysis

1
Measurement Models Exploratory and Confirmatory
Factor Analysis

• James G. Anderson, Ph.D.
• Purdue University

2
Conceptual Nature of Latent Variables

• Latent variables correspond to some type of
  hypothetical construct
• Requires a specific operational definition
• Indicators of the construct need to be selected
• Data from the indicators must be consistent with
  certain predictions (e.g., moderately correlated
  with one another)

3
Multi-Indicator Approach

• A multiple-indicator approach reduces the overall
  effect of measurement error of any individual
  observed variable on the accuracy of the results
• A distinction is made between observed variables
  (indicators) and underlying latent variables
  (constructs)
• Together the observed variables and the latent
  variables make up the measurement model

4
Principles of Measurement

• Reliability is concerned with random error
• Validity is concerned with random and systematic
  error

5
Measurement Reliability

• Test-Retest
• Alternate Forms
• Split-Half/Internal Consistency
• Inter-rater
• Coefficient
• 0.90 Excellent
• 0.80 Very Good
• 0.70 Adequate
• 0.50 Poor

6
Measurement Validity

• Content ( (whether an indicators items are
  representative of the domain of the construct)
• Criterion-Related (whether a measure relates to
  an external standard against which it can be
  evaluated)
• Concurrent (when scores on the predictor and
  criterion are collected at the same time)
• Predictive (when scores on the predictor and
  criterion are collected at different times)
• Convergent (items that measure the same
  construct are correlated with one another)
• Discriminant (items that measure different
  constructs are not correlated highly with one
  another)

7
Types of Measurement Models

• Exploratory (EFA)
• Confirmatory (CFA)
• Multitrait-Multimethod (MTMM)
• Hierarchical CFA

8
An Exploratory Factor Model
9
EFA Features

• The potential number of factors ranges from one
  up to the number of observed variables
• All of the observed variables in EFA are allowed
  to correlate with every factor
• An EFA solution usually requires rotation to make
  the factors more interpretable. Rotation changes
  the correlations between the factors and the
  indicators so the pattern of values is more
  distinct

10
A Confirmatory Factor Model
11
CFA Features

• The number of factors and the observed variables
  (indicators) that load on each construct (factor
  or latent variable) are specified in advance of
  the analysis
• Generally indicators load on only one construct
  (factor)
• Each indicator is represented as having two
  causes, a single factor that it is suppose to
  measure and all other unique sources of variance
  represented by measurement error

12
CFA Features

• The measurement error terms are independent of
  each other and of the factors
• All associations between factors are unanalyzed

13
A Covariance Structure Model
14
A Structural Model of the Dimensions of Teacher
Stress

• Survey of teacher stress, job satisfaction and
  career commitment
• 710 primary school teachers in the U.K.

15
Methods

• 20-Item survey of teacher stress
• EFA (N355)
• CFA (N375)
• 1-Item overall self-rating of stress
• SEM (N710)

16
Table1 An oblique five factor pattern solution
(N170)
17
Factor Patterns
18
EFA Results

• 5 Factor solution
• 4 Items deleted
• Fit Statistics
• Chi Square 156.94
• df 70
• AGFI 0.906
• RMR 0.053

19
Confirmatory Factor Analysis
20
Covariances between exogenous latent traits
21
CFA Results

• 5 Factor solution
• 2 Items deleted
• Fit Statistics
• Chi Square 171.14
• df 70
• AGFI 0.911
• RMR 0.057

22
Structural Equation Models

• True Null Model - Hypothesizes no significant
  covariances among the observed variables
• Structural Null Model - Hypothesizes no
  significant structural or correlational relations
  among the latent variables
• Non-Recursive Model
• Mediated Model
• Regression Model

23
Non-recursive model
24
Regression Model
25
Comparison of Fit Indices
26
Results

• Two major contributors to teacher stress
• Work load
• Student Misbehavior

27
Confirmatory Factor Analysis with SIMPLIS
