Title: Layout


1

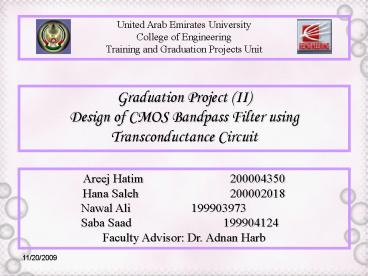

United Arab Emirates UniversityCollege of
EngineeringTraining and Graduation Projects Unit
Graduation Project (II)Design of CMOS Bandpass
Filter using Transconductance Circuit
Areej Hatim 200004350 Hana Saleh 200002018
Nawal Ali 199903973 Saba
Saad
199904124 Faculty Advisor Dr. Adnan Harb
2
Outline
  • Introduction.
  • Analog IC design flow.
  • Transconductance circuit.
  • Modify Transconductance circuit.
  • Common mode feed back.
  • Transconductance circuit characteristics.
  • Biquad Band pass filter.
  • Biquad Band pass filter charactristics.
  • Layout.
  • Project Cost.
  • Cleanroom.
  • Conclusion.

3
(No Transcript)
4
Filter Specifications
  • Frequency bandwidth of 10MHz 80MHz.
  • Transfer function
  • Mid band frequency equal to wo 45MHz 10.
  • The linearity must be better than 41 dB.

5
Analog IC Design Flow
6
(No Transcript)
7
Transconductance (Gm) circuit
  • Transfer function Vout/Vin Gm/sC
  • Unity gain frequency wo Gm/C
  • wo 45 MHz

8
AC simulation
9
Gm circuit Modification
New Gm circuit
Old Gm circuit
10
Small signal equivalent circuit for new Gm
11
Bias Circuit
  • First step

12
  • Second step

13
  • Third step

I2I32I1 I4I5 I1/3
14
Gain vs. Frequency
15
CMFB Circuit
16
(No Transcript)
17
Gm-C circuit characteristics
  • Frequency response.
  • Gain tunability.
  • Linearity.
  • Power consumption.

18
Frequency response vs.Vref
19
  • At T -40oC
  • When Vref (750mV-900mV) the range of Freq.
    7.1MHz to 108MHz.
  • At T 125oC
  • When Vref (860mV-900mV) the range of Freq.
    41.2MHz to 54MHz.
  • The simulation shows that at all temperature, the
    Gm can be tuned to meet wo 45 MHz.

20
Tunability
Gain Vout / Vin
21
Linearity Characteristic
  • Effect of frequency.
  • Effect of reference voltage.
  • Effect of Temperature.
  • Effect of output voltage.

22
Effect of Frequency
23
Effect of Vref
24
Effect of Temperature
25
Effect of output voltage
26
Power consumption
  • P (Vdd Vss)I 5.4mW

Vdd
Vss
27
Biquad Band Pass Filter circuit
28
Bias circuit
29
BBPF circuit characteristics
  • Frequency Response and Tunability
  • Linearity Characteristics
  • Power Consumption

30
Frequency Response Tunability
Vref 0.908 V, Freq. 45MHz, T27oC
31
Value of reference voltage at the mid band
frequency
32
Linearity Characteristics
  • Effect of Frequency
  • 30MHz, 45 10 MHz, 60MHz.
  • Effect of Temperature
  • -40oC, 27oC, 125oC.
  • Effect of output voltage

33
Effect of Frequency
34
Effect of Temperature
35
Effect of Output Voltage
36
Power Consumption
  • Minimize power by using One Bias circuit in the
    BBPF circuit so

37
Layout
  • Used Technology Specifications.
  • Transistors Sizing.
  • Bias Circuit Gm Circuit.
  • Bulk Terminal Connection.
  • Capacitor Calculation.
  • Layout vs. Schematic (LVS).
  • Biquad Band Pass Filter Connection.
  • Design Rule Check (DRC).

38
Used Technology Specifications
39
(No Transcript)
40
Technology Specifications
  • In this technology 1? 0.2µm.
  • The maximum dimension 100 ?

41
Transistor Sizing
42
Bias circuit Transistors Sizing
43
Bias circuit Transistors Sizing
44
Gm Transistors Sizing
45
Gm tansconductance Layout
46
Bias circuit Layout
47
Bulk Terminal Connection
48
(No Transcript)
49
P-MOS
VDD
50
N-MOS
Vss
51
Capacitor Calculations
  • Designed Capacitor Structure.
  • Capacitor sizing calculations

52
Layout vs Schematic (LVS)
Gm LVS
53
Bias Circuit LVS
54
Biquad Band Pass Filter Connection
Gm Circuits
Bias Circuit
Capacitor
55
Design Rule Check (DRC)
  • Width rules.
  • Width of poly wire.
  • Spacing rules.
  • Spacing of two poly wires.
  • Enclosure rules.
  • Enclosure between a wall and a source/ drain
    active.
  • Extension rules.
  • Gate extension

56
Design Rule Check
57
Project Cost
  • Designing Cost
  • Engineer payment 20000 for each engineer.
  • The total 80000.
  • Software (OrCAD) for designing the circuit
  • The cost 9995
  • Software (Electric) for make layout for the
    circuit
  • The cost 49

58
  • Implementation cost
  • Fabrication cost
  • 13800/40 copies of our circuit.
  • Packaging cost
  • The cost 40 per chip.
  • To package the 40 chips, the price will be 4040
    1600
  • Testing Cost
  • DRC (Design Rule Check)
  • The cost 500 .
  • Test and documentation
  • The cost 1800.
  • Total Cost 107,44 which is also known as
    capital cost.

59
Cleanroom
  • Dangers
  • Safety and Protocol

60
Dangers in Cleanroom
61
Safety and Protocol
  • Personal Protective
  • Equipment (PPE)
  • Fire Safety
  • First Aid
  • The NFPA Diamond
  • Gowning
  • Chemical Product
  • Emergency Contact
  • Housekeeping and Cleanroom
    Etiquettey
  • Material Data Safety Sheets (MSDS)
  • Cleanroom Procedures

62
Conclusion
  • What have we gained?
  • Faced problems.
  • This project will be a part of a conference paper.

63
,
