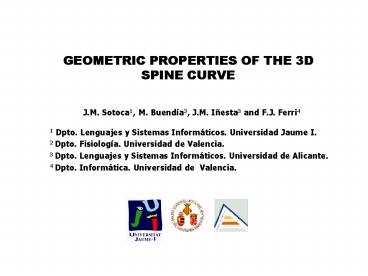

GEOMETRIC PROPERTIES OF THE 3D SPINE CURVE

1
GEOMETRIC PROPERTIES OF THE 3D SPINE CURVE

• J.M. Sotoca1, M. Buendía2, J.M. Iñesta3 and F.J.
  Ferri4
• 1 Dpto. Lenguajes y Sistemas Informáticos.
  Universidad Jaume I.
• 2 Dpto. Fisiología. Universidad de Valencia.
• 3 Dpto. Lenguajes y Sistemas Informáticos.
  Universidad de Alicante.
• 4 Dpto. Informática. Universidad de Valencia.

2
STRUCTURED LIGHTRange retrieval method
alternative to stereo imaging.

• A light source with a known pattern is utilised
  instead of a camera.
• A set of landmarks are created on the objects
  by the light pattern.
• The 3D positions of those landmarks are
  computed.

Pros

• This method allows the surface reconstruction in
  objects without texture.
• Makes it easier to solve the stereo
  correspondence problem.

Cons

• Only valid in controlled environments.
• Sensitive to light condition changes and kinds of
  surfaces.

3
THE INDEXATION PROBLEM

• Its the problem in structured light dual to the
  correspondence problem in stereovision.
• It represents the labelling of the landmarks
  artificially created by the pattern when it is
  projected over the scene.
• Once solved, the range data can be retrieved.
• Different approaches to help the solution colour
  codes, binary patterns, constraints.
• We have introduced a mark in the pattern that
  sets a reference for landmark indexation.

4
EXPERIMENTAL SETTING Simplification by means of
a front plane.
IMAGE 1
IMAGE 2
5
EXPERIMENTAL SETTINGSArbitrary direction of the
optical axis.
This way z is computed as a function only of
distances between pixels, the distance between
both calibration planes, D and the distance of
the camera d2.
6
SURFACES RECONSTRUCTIONApplication over back
humans.

• Elements of the reconstruction

• Back grid image.

• Front grid image.

• Object image with landmarks.

• Object grid image.

• Phases of the reconstruction

• Mask region.

• Skeletonized and the node-seeking algorithms.

• Indexation of images.

• Topography map.

7
MORPHOLOGY OF THE SPINEMedical problem.

• Serious deformities in the human spine are
  present in the 0.3 of the population.
• Study of the thoracic and lumbar regions,
  analysing these pathologies that suppose bigger
  deformity
• Scoliosis, kyphosis and lordosis.
• The detection is thought a clinic visualization
  of the cosmetic deformity. Frequent x-ray
  examinations are necessary.
• The habitual prognosis is realised measuring the
  Cobb angle and the projection of the vertebral
  pedicles.

45?
8
MORPHOLOGY OF THE SPINEScoliosis.

• Characteristics
• A lateral bend of the spine.
• Rotation of the vertebrae bodies.
• Prominence of the ribs and the disfiguring hump.
• The deterioration of the spine occurs quickly, so
  a prevention of the illness is necessary.
• Nomenclature of Ponsetti and Friedman
• Cervical-thoracic.
• Thoracic.
• Thoraco-lumbar.
• Double major.
• Lumbar.

9
MORPHOLOGY OF THE SPINEThe Ponsetti-Friedman
classification.
10
STUDY OF THE FRONT AND SAGITTAL PLANESThoracic
scoliosis. The Cobb angle is 45.0? in the
thoracic region.

• Projection of the spine curve for front X-ray
  image over back surface.
• The lateral asymmetry in the front plane is 41.7?
  in the thoracic region and 19.4? in the lumbar
  region.
• The kyphosis angle is 53.9? and the lordosis
  angle is 47.5?.

11
STUDY OF THE FRONT AND SAGITTAL PLANESThoracic
scoliosis. The Cobb angle is 45.0? in the
thoracic region.

• Projection of the spine curve obtain with
  landmarks over the back surface.
• The lateral asymmetry in the front plane is 47.7?
  in the thoracic region and 32.1? in the lumbar
  region.
• The kyphosis angle is 50.4? and the lordosis
  angle is 51.9?.

12
STUDY OF THE SPINE CURVE IN 3DCurvature and
torsion.

• C(u) pi, pi1 ??3 is a parameterisation of
  the spine curve by mean of a polynomial fitting.
• Px and Pz are the coefficients of the polynomial
  using a threshold in the corresponding
  correlation index, and nx y nz are the degrees of
  the polynomial,
• The curvature ? and the torsion ? can be
  calculated from an arbitrary parametric curve
  through the following expressions

13
STUDY OF THE SPINE CURVE IN 3DThe frenet frame.

• For each point of the curve, a natural local
  reference system called Frenet frame can be
  defined by the following expressions
• where t is the tangent vector of the curve,
  b is the binormal vector and n is the normal
  vector.
• If we consider ? and ? as the angle variations of
  the vectors t and b, respectively, can arrive to
  the following relations for the curvature and the
  torsion
• where s is the arc length of the curve.
  Thus, ? and ? are the angular velocities of t and
  b.
• The curvature gives information about the changes
  in the orientation of the curve and torsion
  provides information about its rotation.

14
EXPERIMENTS AND RESULTS.

• A sample of 76 patients (42 female and 36 male).
• A group of 12 patients, aged from 11 and 18
  years, had an idiopathic scoliosis process.
• The Ponsetti-Friedman classification 4
  thoracic, 2 thoraco-lumbar, 1 lumbar and 5 double
  major curves.
• The correlation index obtained between the
  lateral asymmetry in the spine curve obtain with
  landmarks and the Cobb angle obtain by means of
  front X-ray image was r 0.89.
• The values for the kyphosis and lordosis angles
  for a group of 30 normal subjects were 44.5?11.8
  and 34.1?10.0 degrees for male and 46.1?11.6 and
  39.1?12.6 degrees for female.

15
STUDY OF THE SPINE CURVE IN 3DA normal spine
curve.
16
STUDY OF THE SPINE CURVE IN 3D.
Front plane
Sagittal plane
Thoracic scoliosis. The Cobb angle is 45.0? in
the thoracic region. Left A representation of
the curvature and the torsion. Right The Frenet
frame of Front and Sagittal planes.
17
STUDY OF THE SPINE CURVE IN 3D.
Left A patient with a double major scoliosis
with thoracic Cobb angle of 30? and lumbar Cobb
angle of 30?. Right A patient with a
thoraco-lumbar scoliosis with thoracic Cobb angle
of 24? and lumbar Cobb angle of 12?.
18
CONCLUDING REMARKS.

• A reconstruction of the back human surface has
  been developed using a structured light sheme.
• We compare the spine curve obtain with landmarks
  over the back surface with the projection of the
  spine curve in front X-ray image and have
  obtained a good correlations.
• We get a description of different types of
  deformities in the spine as a function of the
  curvature and torsion. Also, the Frenet frame is
  represented along the spine curve.
