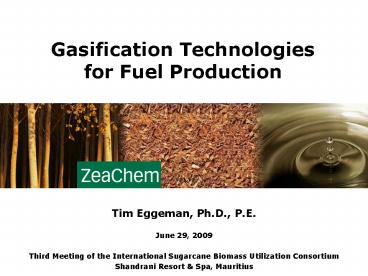

Gasification Technologies for Fuel Production

1
Gasification Technologies for Fuel Production

• Tim Eggeman, Ph.D., P.E.
• June 29, 2009
• Third Meeting of the International Sugarcane
  Biomass Utilization Consortium
• Shandrani Resort Spa, Mauritius

2
Gasification Can Be
Simple
WWII Automobile
3
Fuel Gas Applications Are Simplest
Central Minnesota Ethanol Cooperative 15 Million
gal/yr Corn Dry Mill 15 Million Gasifier Retrofit
4
Another Fuel Gas Application
Retrofit a Pulverized Coal Boiler to Allow
Co-firing Biomass Lahti, Finland 50 MWth
5
Why are Fuel Gas Applications Simple?

• Atmospheric Pressure Operation
• Air Blown
• Low Calorific Gas w/ N2 is OK
• Low Temperature
• High Make of Methane and Tars is OK
• Dry Ashgenerally OK
• Moving Bed is Common

6
Gasifier Flow Patterns
7
Fuel Capacity
Entrained Flow
8
BIGCC Are More Complex
Värnamo, Sweden 18 MWth Input as Wood
9
Repotec Gasifier
CONFIDENTIAL
10
Repotec Güssing 8 MWth
CONFIDENTIAL
Operating Hours Per Year
11
Not All Projects are Successful

• Many Fail to Get Funding
• SIGAME (Eucalyptus BIGCC in Brazil)
• Technical and Management Problems

Paia, Hawaii Bagasse BIGCC Had Problems
with Bagasse Supply/Feed
12
Feedstock Properties
13
Ash Properties
Instantaneous Feed Heating
Slagging Operations
Raw Gas Quenching
Sticky Ash Regime Forbidden Temperature Range
Dry Ash Gasifiers
Agglomerating Gasifiers
Slagging Gasifiers
TInitial Deformation
TFluid
T250
14
Ash Properties
a) Coal Ash From www.ultrasys.com.au/bits.html
b) Biomass Ash From Miles et. al. (1996)
15
Thermodynamics
16
Fuel Footprint
17
Gasification for Chemicals is Most Complex
Biomass
Low Temperature Gasification 800C
Producer Gas (Heat, Steam/Power)
18
Biomass to Liquids (BTL)
Gasification
Fischer-Tropsch
19
Choren
Freiberg Site Blue Stripe Building (Back) Alpha
Plant Red Stripe Building (Center) Beta
Plant Open Space (Center Left) Future Shell FT
Plant
Installation of Entrained Flow Gasifier, Beta
Plant
20
Choren
21
Mixed Alcohol Synthesis
22
Range Fuels
Demonstration Plant in Soperton, GA in Planning
23
Syngas Fermentation
24
Coskata
Working With AlterNRG for Plasma Gasification
25
ZeaChem Technology
25
26
Theoretical Yields
Values in Italics Indicate Chemical Energy Flow
Normalized to Biomass 100 Yield assumes 200
gal(neat)/BDT for 100 Chemical Efficiency
27
Recommendations for ISBUC

• Have Well-Defined Scope
• Start Simple then Build Complexity
• Need a Strong Operating Partner with
• Form a High-Level Business Case Early
• Incremental Economics for Addition of a BIGCC to
  a Typical Mill
• Refine as Progress is Made
• Project Plan
• Sources of Funds
• Location
• Schedule

28
Potassium Content
29
