Robotics Algorithms for the Study of Protein Structure and Motion

1

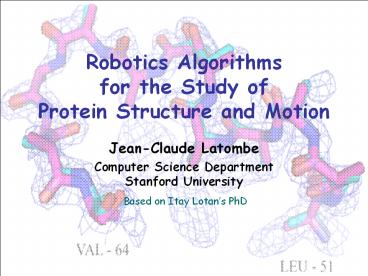

Robotics Algorithms for the Study of Protein
Structure and Motion

• Jean-Claude Latombe
• Computer Science DepartmentStanford University

Based on Itay Lotans PhD
2
Folded (native) state
3
Folded State

• Loops connect ? helices and ? strands

4
Protein Sequence Structure
amino-acid (residue)
5
f-y Kinematic Linkage Model
? Conformational space
6
Molecule ? Robot
7
Why Studying Proteins?

• They perform many vital functions, e.g.
• catalysis of reactions
• storage of energy
• transmission of signals
• building blocks of muscles
• They are linked to key biological problems that
  raise major computational challenges
• mostly due to their large sizes (100s to several
  1000s of atoms), many degrees of kinematic
  freedom, and their huge number (millions)

8
Two problems

• Structure determination from electron density
  maps
• Inverse kinematics techniques
• Itay Lotan, Henry van den Bedem, Ashley Deacon
  (Joint Center for Structural Genomics)
• Energy maintenance during Monte Carlo simulation
• Distance computation techniques
• Itay Lotan, Fabian Schwarzer, and Danny
  Halperin (Tel Aviv University)

9
Structure Determination X-Ray Crystallography
10
Software

• Software systems RESOLVE, TEXTAL, ARP/wARP, MAID
• 1.0Å lt d lt 2.3Å 90 completeness
• 2.3Å d lt 3.0Å 67 completeness (varies
  widely)1

1.0Å
3.0Å
JCSG 43 of data sets ? 2.3Å

• ? Manually completing a model
• Labor intensive, time consuming
• Existing tools are highly interactive

? Model completion is high-throughput bottleneck
1Badger (2003) Acta Cryst. D59
11
The Completion Problem

• Input
• Electron-density map
• Partial structure
• Two anchor residues
• Amino-acid sequence of missing fragment
  (typically 4 15 residues long)
• Output
• Ranked conformations Q of fragment that
• Respect the closure constraint
• Maximize target function T(Q) measuring fit with
  electron-density map
• No atomic clashes

Partial structure(folded)
12
Two-Stage IK Method

• Candidate generations? Closed fragments
• Candidate refinement? Optimize fit with EDM

13
Stage 1 Candidate Generation

1. Generate a random conformation of fragment (only
   one end attached to anchor)
2. Close fragment (i.e., bring other end to second
   anchor) using Cyclic Coordinate Descent (CCD)
   (Wang Chen 91, Canutescu Dunbrack 03)

14
Closure Distance

• Closure Distance

A.A. Canutescu and R.L. Dunbrack Jr.Cyclic
coordinate descent A robotics algorithm for
protein loop closure. Prot. Sci. 12963972,
2003.
Compute bias toward
avoiding steric clashes
15
Exact Inverse Kinematics

• Repeat for each conformation of a closed
  fragment
• Pick 3 amino-acids at random (3 pairs of f-y
  angles)
• Apply exact IK solver to generate all IK
  solutions Coutsias et al, 2004

16
TM0813
GLU-83
GLY-96
17
Stage 2 Candidate Refinement

• Target function T (Q) measuring quality of the
  fit with the EDM
• Minimize T while retaining closure
• Closed conformations lie on a self-motion
  manifold of lower dimension

Null space
1-D manifold
18
Closure and Null Space

• dX J dQ, where J is the 6?n Jacobian matrix (n
  gt 6)
• Null space dQ J dQ 0 has dim n 6
• N orthonormal basis of null space
• dQ NNT ?T(Q)

X
19
Computation of N
SVD of J
S6?6
dX
U6?6
VT6?n
dQ

20
Refinement Procedure

• Repeat until minimum of T is reached
• Compute J and N at current Q
• Compute ?T at current Q(analytical expression of
  ?T linear-time recursive computation Abe et
  al., Comput. Chem., 1984)
• Move by small increment along dQ NNT ?T

( Monte Carlo / simulated annealing protocol to
deal with local minima)
21
TM0813
GLU-83
GLY-96
22
Tests 1 Artificial Gaps

• TM1621 (234 residues) and TM0423 (376 residues),
  SCOP classification a/b
• Complete structures (gold standard) resolved with
  EDM at 1.6Å resolution
• Compute EDM at 2, 2.5, and 2.8Å resolution
• Remove fragments and rebuild

23
TM1621 103 Fragments from TM1621 at 2.5Å
Short Fragments 100 lt 1.0Å aaRMSD
Long Fragments 12 96 lt 1.0Å aaRMSD 15 88 lt
1.0Å aaRMSD
Produced by H. van den Bedem
24
Example TM0423
PDB 1KQ3, 376 res. 2.0Å resolution 12 residue
gap Best 0.3Å aaRMSD
25
Tests 2 True Gaps

• Structure computed by RESOLVE
• Gaps completed independently (gold standard)
• Example TM1742 (271 residues)
• 2.4Å resolution 5 gaps left by RESOLVE

Length Top scorer
4 0.22Å
5 0.78Å
5 0.36Å
7 0.72Å
10 0.43Å
Produced by H. van den Bedem
26
TM1621

• Green manually completed conformation
• Cyan conformation computed by stage 1
• Magenta conformation computed by stage 2
• The aaRMSD improved by 2.4Å to 0.31Å

27
Current/Future Work

• Software actively being used at the JCSG
• What about multi-modal loops?

28

• TM0755 data at 1.8Å
• 8-residue fragment crystallized in 2
  conformations
• Overlapping density Difficult to interpret
  manually

Algorithm successfully identified and built both
conformations
29
Current/Future Work

• Software actively being used at the JCSG
• What about multi-modal loops?
• Fuzziness in EDM can then be exploited
• Use EDM to infer probability measure over the
  conformation space of the loop

30
Amylosucrase
J. Cortés, T. Siméon, M. Renaud-Siméon, and V.
Tran. J. Comp. Chemistry, 25956-967, 2004
31
Energy maintenance during Monte Carlo simulation

• joint work with Itay Lotan, Fabian Schwarzer, and
  Dan Halperin11 Computer Science Department, Tel
  Aviv University

32
Monte Carlo Simulation (MCS)

• Random walk through conformation space
• At each attempted step
• Perturb current conformation at random
• Accept step with probability
• The conformations generated by an arbitrarily
  long MCS are Boltzman distributed, i.e.,
• conformations in V

33
Monte Carlo Simulation (MCS)

• Used to
• sample meaningful distributions of conformations
• generate energetically plausible motion pathways
• A simulation run may consist of millions of steps
  ? energy must be evaluated a large number of
  times
• Problem How to maintain energy efficiently?

34
Energy Function

• E S bonded terms S
  non-bonded terms
  S solvation terms
• Bonded terms - O(n)
• Non-bonded terms - E.g., Van der Waals and
  electrostatic- Depend on distances between pairs
  of atoms - O(n2) ? Expensive to compute
• Solvation terms- May require computing molecular
  surface

35
Non-Bonded Terms

• Energy terms go to 0 when distance increases ?
  Cutoff distance (6 - 12Å)
• vdW forces prevent atoms from bunching up ?
  Only O(n) interacting pairs
  HalperinOvermars 98

Problem How to find interacting pairswithout
enumerating all atom pairs?
36
Grid Method

• Subdivide 3-space into cubic cells
• Compute cell that contains each atom center
• Represent grid as hashtable

37
Grid Method

• T(n) time to build grid
• O(1) time to find interactive pairs for each atom
• T(n) to find all interactive pairs of atoms
  HalperinOvermars, 98
• Asymptotically optimal in worst-case

38
Can we do better on average?

• Few DOFs are changed at each MC step

simulationof 100,000 attempted steps
39
Can we do better on average?

• Few DOFs are changed at each MC step
• Proteins are long chain kinematics

Long sub-chains stay rigid at each step ? Many
interacting pairs of atoms are unchanged ? Many
partial energy sums remain constant
Problem How to find new interacting pairs and
retrieve unchanged partial sums?
40
Two New Data Structures

• ChainTree ? Fast detection of interacting atom
  pairs
• EnergyTree ? Retrieval of unchanged partial
  energy sums

41
ChainTree(Twofold Hierarchy BVs Transforms)
links
42
ChainTree(Twofold Hierarchy BVs Transforms)
joints
43
Updating the ChainTree

• Update path to root
• Recompute transforms that shortcut the DOF
  change
• Recompute BVs that contain the DOF change
• O(k log2(2n/k)) work for k changes

44
Finding Interacting Pairs
??
45
Finding Interacting Pairs
46
Finding Interacting Pairs

• Do not search inside rigid sub-chains (unmarked
  nodes)

47
Finding Interacting Pairs

• Do not search inside rigid sub-chains (unmarked
  nodes)
• Do not test two nodes with no marked node between
  them
• ? New interacting pairs

48
EnergyTree
E(N,N)
E(K.L)
E(M,M)
E(L,L)
E(J,L)
49
EnergyTree
E(N,N)
E(K.L)
E(M,M)
E(L,L)
E(J,L)
50
Complexity

• n total number of DOFs
• k number of DOF changes at each MCS step
• k ltlt n
• Complexity of
• updating ChainTree O(k log2(2n/k))
• finding interacting pairs O(n4/3) but performs
  much better in practice!!!

51
Experimental Setup

• Energy function
• Van der Waals
• Electrostatic
• Attraction between native contacts
• Cutoff at 12Å
• 300,000 steps MCS with Grid and ChainTree
• Steps are the same with both methods
• Early rejection for large vdW terms

52
Results 1-DOF change
12.5
7.8
speedup
5.8
3.5
amino acids
53
Results 5-DOF change
5.9
speedup
4.5
3.4
2.2
54
Two-Pass ChainTree (ChainTree)
1st pass small cutoff distance to detect steric
clashes 2nd pass normal cutoff distance
Tests around native state
gt5
55
Interaction with Solvent

• Implicit solvent model solvent as continuous
  medium, interface is solvent-accessible surface

E. Eyal, D. Halperin. Dynamic Maintenance of
Molecular Surfaces under Conformational Changes.
http//www.give.nl/movie/publications/telaviv/EH0
4.pdf
56
Summary

• Inverse kinematics techniques ? Improve structure
  determination from fuzzy electron density maps
• Collision detection techniques ? Speedup energy
  maintenance during Monte Carlo simulation

57
About Computational Biology

• Computational Biology is more than mimicking
  nature (e.g., performing Molecular Dynamic
  simulation)
• One of its goals is to achieve algorithmic
  efficiency by exploiting properties of molecules,
  e.g.
• Atoms cannot bunch up together
• Forces have relatively short ranges
• Proteins are long kinematic chains
