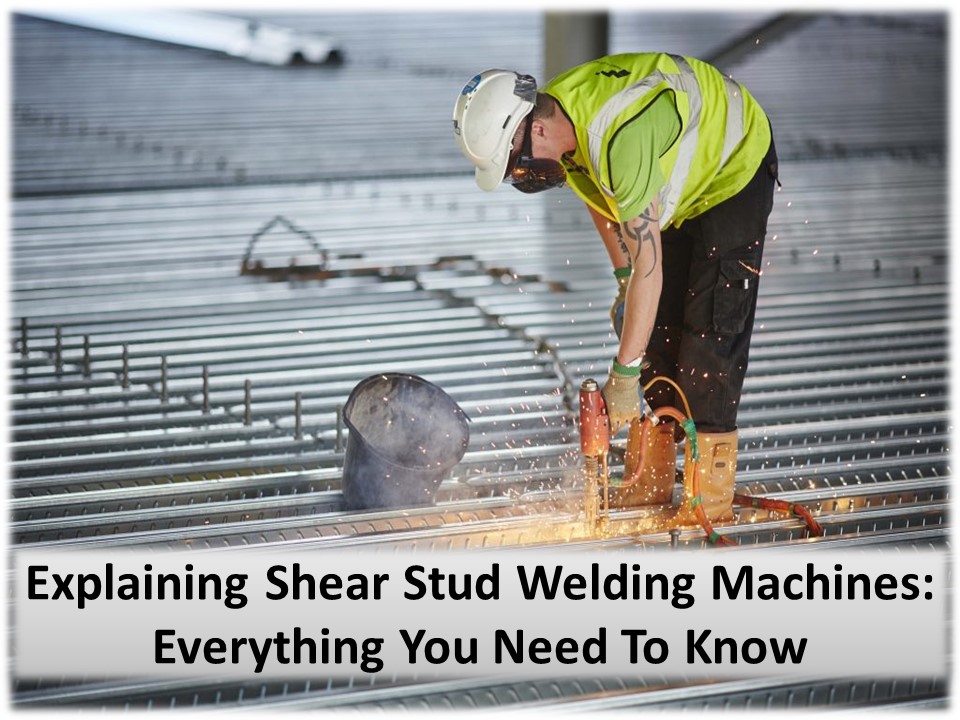

Explaining Shear Stud Welding Machines
Everything You Need To Know
2
What Is Meant By The Term Stud Welding"?

• Stud welding refers to the technique of joining a
  shear stud to another metal item by the use of
  welding. There are a few other names for stud
  welding, including drawn arc stud welding and arc
  welding for short. The words "stud welding" and
  "shear studs" are often used in conjunction with
  the fabrication of composite floors and steel
  frames.

3
Shear Stud Welding Machines An Introduction To
The Machinery

• In a wide variety of construction and structural
  engineering tasks, shear stud welding machines
  are an indispensable tool. These machines have
  been developed expressly for the purpose of
  welding shear studs onto steel structures, which
  guarantees a connection that is both secure and
  dependable. It is vital to have a solid grasp of
  shear stud welding equipment in order to achieve
  structural stability and safety, regardless of
  whether you are working on a high-rise building,
  a bridge, or any other project that involves a
  significant amount of steel.
• One of the fundamental aspects of shear stud
  welding is the process of attaching a shear stud,
  which is normally made of steel, to a base
  material that is also composed of steel. The link
  that was created as a consequence has an
  excellent load-bearing capability and makes it
  possible to transmit forces between various
  structural parts. In situations where composite
  steel-concrete buildings are prominent, this
  welding process is used to a significant degree.

4
Describe The Procedure That Is Used For Shear
Stud Welding

• In most cases, shear studs are installed in situ
  with the assistance of a stud welding gun.
  Heating the end tip of a shear stud (or shear
  connection) is an essential step in the stud
  welding process. This is accomplished by using a
  powerful electric arc that is generated by a
  positive electric current.
• Immediately after the trigger is activated, the
  studs are held in the welding gun at a height
  that has been predetermined above the parent
  material while a pilot arc is discharged. This is
  then followed by the main arc, which produces
  heat at a temperature more than 1400 degrees. As
  a result, the weld end of the stud begins to
  melt, and a puddle of molten material develops on
  the plate. Welding spatter is the name given to
  this molten alloy of metal. In order to complete
  the process of fusing the two components
  together, the shear stud is subsequently forced
  with force into the molten pool that is located
  on the surface of the parent material.
• In spite of the fact that the length of time
  required for each weld procedure is contingent
  upon the nature and dimensions of the shear
  connection, the stud welding process may be
  completed in as low as 0.06 seconds. During the
  welding process, the length of a shear stud will
  be decreased by around 5 millimeters on average.

5
A List Of Factors To Take Into Consideration When
Choosing A Shear Stud Welding Machine

• When it comes to choosing a shear stud welding
  equipment, there are a number of important
  aspects that you need to take into consideration.
  Due to the fact that these aspects may have a
  significant influence on the effectiveness and
  performance of the welding process, it is
  essential that you choose the appropriate
  equipment for your particular requirements.
• First and foremost, it is essential to determine
  the power and capacity of the shear stud welding
  equipment prior to beginning the process. It is
  necessary to ascertain the maximum diameter and
  length of the studs that you will be welding in
  order to accommodate the possibility that various
  projects will need for varying degrees of power.
  By doing so, you will be able to pick a machine
  that is capable of managing the load and
  producing results that are dependable and
  consistent.

6

• However, the welding process itself is also a
  significant consideration to take into account.
  The drawn arc and capacitor discharge welding
  techniques are both viable options for the
  operation of shear stud welding equipment. There
  are distinct qualities and benefits associated
  with each method, despite the fact that both
  approaches are successful.
• The drawn arc welding technique is well suited
  for high-strength connections and applications
  that need heavy-duty work, while the capacitor
  discharge welding technique is more appropriate
  for thinner materials and more rapid welding
  cycles. It will be easier for you to make an
  educated selection if you have a thorough
  understanding of the unique needs of your
  project.
