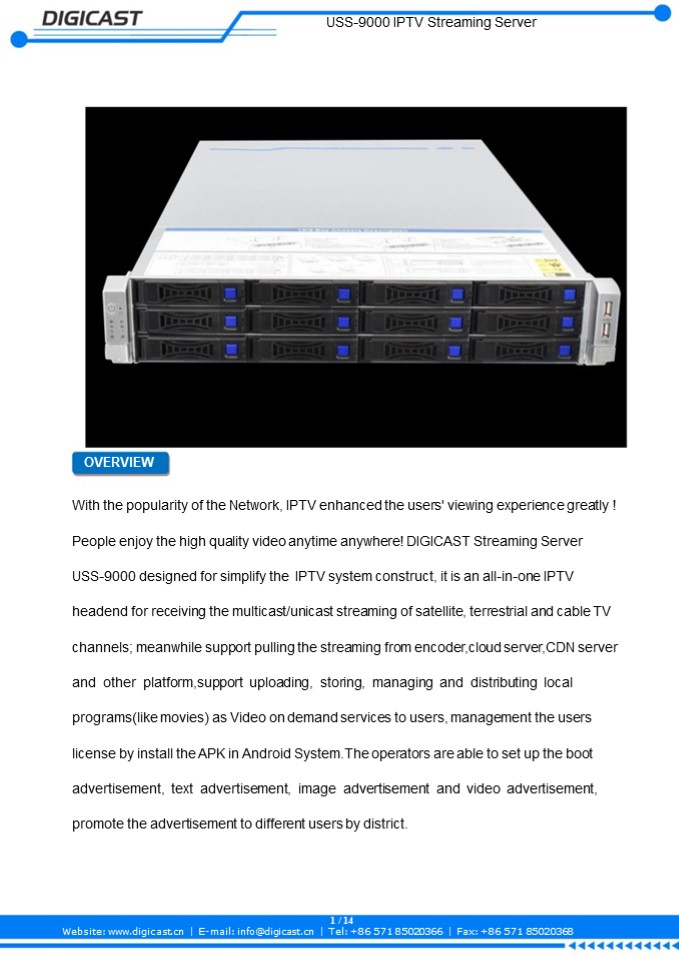

USS-9000 IPTV Streaming Server
OVERVIEW
With the popularity of the Network, IPTV enhanced
the users' viewing experience greatly !People
enjoy the high quality video anytime anywhere!
DIGICAST Streaming ServerUSS-9000 designed for
simplify the IPTV system construct, it is an
all-in-one IPTVheadend for receiving the
multicast/unicast streaming of satellite,
terrestrial and cable TVchannels meanwhile
support pulling the streaming from encoder,cloud
server,CDN serverand other platform,support
uploading, storing, managing and distributing
localprograms(like movies) as Video on demand
services to users, management the userslicense
by install the APK in Android System.The
operators are able to set up the
bootadvertisement, text advertisement, image
advertisement and video advertisement,promote
the advertisement to different users by district.
1 / 14
Website www.digicast.cn E-mail
info_at_digicast.cn Tel [phone] Fax
86 571 85020368
2
USS-9000 IPTV Streaming Server
Moreover,USS-9000 Streaming Server is a
fully customization solution for
differentapplication like villages,hotel,communit
y,school,hospital and so on, the APK UI could
becustomized as per project.Also the USS-9000
Streaming Server hardware capacity
acceptcustomization for some small Commercial
IPTV project which with dozens of,hundreds
ofusers and other ISP large projects in view of
the high-performance and redundant,morecontents
and concurrence.The hardware configuration and
chassis shell form of theproduct can be flexibly
adjusted according to the needs of the project.
DIGICAST Streaming Server is a flexible and high
density all in one solution for variousIPTV
projects !
FEATURES
? Receiving hundreds of live programs
from headend encoders,IRD,cloud server or any
others
IP source(Live capacity can be customized
according to the customers requirements).
? Editing,package,manage the Live Programs
according different users authorization
? The hardware configuration and chassis shell
form of the product can be flexibly adjusted
according to the needs of the project
2 / 14
Website www.digicast.cn E-mail
info_at_digicast.cn Tel [phone] Fax
86 571 85020368
3
USS-9000 IPTV Streaming Server
? USS-9000 Streaming Server all-in-one design
that integrates IPTV, VOD, Billing functionality,
controls all IPTV/VOD streams in real-time
and allows easy authentication.
? The VOD function supported(need extra add VOD
storage hardware)
? High Streaming Capacity running Hardware
Capacity guarantee the system 724365 days
running
IPTV CMS Management Platform
? Content Management system - Enables the
content provider and the operator to easy manage
the Live /VOD Program EditingManagement,delivery
advertisement to different user
? Users Management Platform-- Authentication
and authorization users by APK installed in
their Android System
? Various services of scenarios Scrolling
Caption(like Hotel Weclome words),weather reports
,travel Guide, world time and so on
,Poster/Dining/Scenic Spots /Cate and Shopping
Centers Advertisements PicturesVideo, etc.
3 / 14
Website www.digicast.cn E-mail
info_at_digicast.cn Tel [phone] Fax
86 571 85020368
4
USS-9000 IPTV Streaming Server
? High-performance streaming media engine,
adopting a new generation architecture design
? Support the OEM service, the system UI can be
customized according to the customer s
requirements.
? A variety of application scenarios, software
versions including hotels, communities, hospitals
, etc.
? The video stream adopts an efficient and
secure authentication method, which can verify
each terminal and each access.
? Terminal Users Grouping (Group Management)
Customization Solution for Different
Projects(extra cost,not including in basic
version)? Provide API interface to PMS system
in Hotel TV
? Optical modem collection, 10G SFP module
option
4 / 14
Website www.digicast.cn E-mail
info_at_digicast.cn Tel [phone] Fax
86 571 85020368
5
USS-9000 IPTV Streaming Server
? Fully customized solutions for different
quantity of programs channels,users
? The hardware of server is custom-made
according your live programs
quantity, terminal users quantity,hardware
demand on VOD storage
? APK interface can be customization for
different Scenarios
? Powerful Performance salutatory,
advertisement, live broadcast, program
grouping, TV VOD, program source management
(manual update, batch update)? Value-added
Services for different scenarios project
Ordering Services, Guest Service,Hotel
Introduction,Tour Guide,Laundry etc
? Docking PMS (Cash Register System), guest room
control system
? It supports self-running and 7x24H unattended
continuous operation, and supports web-based
authentication for remote control and operation
monitoring.? Support customized CMS development
and modification or provide system
interface connection
5 / 14
Website www.digicast.cn E-mail
info_at_digicast.cn Tel [phone] Fax
86 571 85020368
6
USS-9000 IPTV Streaming Server
APPLICATION
? It can be used in many fields, such as hotels,
clubs, communities, hospitals, prisons and other
IPTV system
? The operation is convenient, and it can
effectively improve the efficiency
of engineering construction (shortened the
opening time of the system, greatly
reducing construction time and labor costs
6 / 14
Website www.digicast.cn E-mail
info_at_digicast.cn Tel [phone] Fax
86 571 85020368
7
USS-9000 IPTV Streaming Server
More products be involved in our solution
Head-End Equipment For Signal Gathering
Model
Description
DMB-90E
4/8/12/16/20/24 FTA Tuner input
(DVB-S/S2/DVB-C/ATSC/ISDB-T/
IP gateway
DVB-T for option),4MPTS 508SPTS UDP/RTP IP
Output
4/6 Tuner for DVB-C/T/ISDB-T/S/S2/S2X, IP input,
1 MPTS outputover UDP, Unicast / Multicast ,Up
to 6 CAM cards, supporting max. 6channels of TS
(independent/cascading)
DMB-9004CIA IP gateway
DMB-8820E
4/8/12/16/20/24 HDMI input,128MPTS/SPTS UDP/IP
input,4MPTS
encoder
508SPTS UDP/RTP IP Output, 2 ASI input
output
Transmission Equipment
Model
Description
EDFA
1550nm, 32 port21dbm, WDM
Opticaltransmitter
1550nm, 110db, direct modulate support up to
35km
Terminal Users Device
Model
Description
ONU XPON
GEPON 1GE1FEWIFIPOTSCATV
Terminal
CPU H616 Quadcore cortex-A53_at_2.0GHzGPU
Mali-G31 MP2
Android
SDRAM DDR3 2GB
Set Top Box
FLASH eMMc 16GB
WIFI IEEE 802.11n 2.4G/5GHzBT4.0OS Android
10.0
7 / 14
Website www.digicast.cn E-mail
info_at_digicast.cn Tel [phone] Fax
86 571 85020368
8
USS-9000 IPTV Streaming Server
APP main interface
Note The APP UI could be customization as per
needs, below screenshot is for referenceonly.
Community IPTV
The set top box UI could be customized as per
needs.
8 / 14
Website www.digicast.cn E-mail
info_at_digicast.cn Tel [phone] Fax
86 571 85020368
9
USS-9000 IPTV Streaming Server
VOD Channel
Thousands of VOD channels, including Hot
Recommendation, Latest Movies, Animationand so
on, are suitable for all peoples demands.
9 / 14
Website www.digicast.cn E-mail
info_at_digicast.cn Tel [phone] Fax
86 571 85020368
10
USS-9000 IPTV Streaming Server
Hotel IPTV
Welcome page
Hotel IPTV Software Function
? Live TV, Local VOD, Travel Guide, World Time,
Order service, Entertainment and PMS
integrate.(PMS is customized function
according to the customers requirements.)
10 / 14
Website www.digicast.cn E-mail
info_at_digicast.cn Tel [phone] Fax
86 571 85020368
11
USS-9000 IPTV Streaming Server
Live channels
VOD Channels
Thousands of VOD channels, including popular
movies, cartoons and so on, are suitablefor all
peoples demands.
11 / 14
Website www.digicast.cn E-mail
info_at_digicast.cn Tel [phone] Fax
86 571 85020368
12
USS-9000 IPTV Streaming Server
World clock
Hotel Service
12 / 14
Website www.digicast.cn E-mail
info_at_digicast.cn Tel [phone] Fax
86 571 85020368
13
USS-9000 IPTV Streaming Server
Hospital IPTV
13 / 14
Website www.digicast.cn E-mail
info_at_digicast.cn Tel [phone] Fax
86 571 85020368
14
USS-9000 IPTV Streaming Server
Should you have any questions, please dont
hesitate to contact with us.
