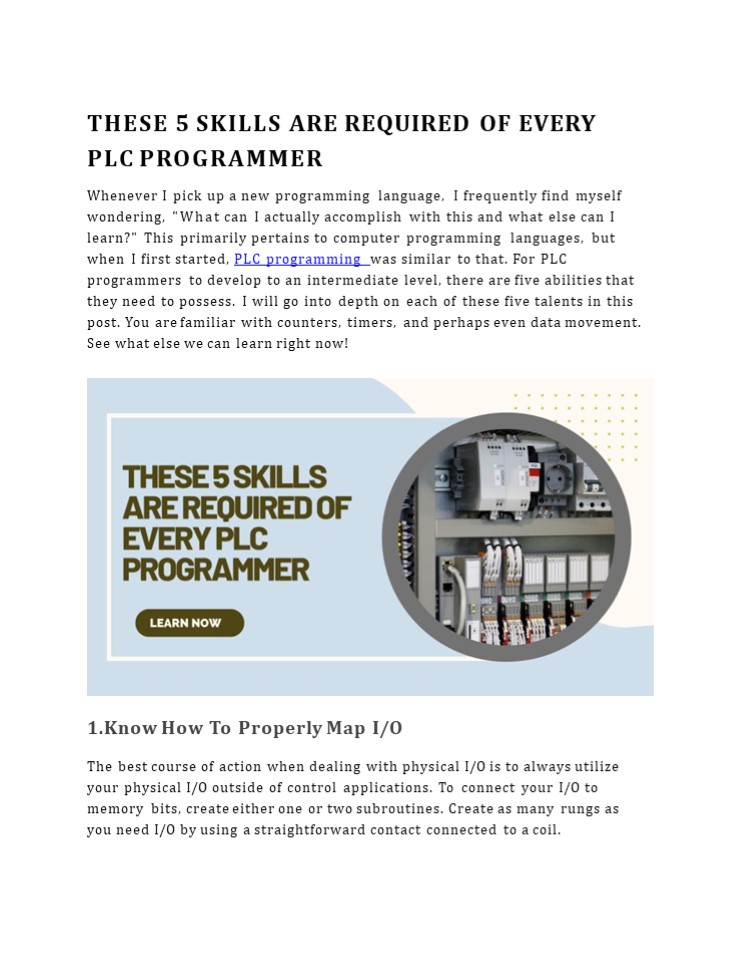

THESE 5 SKILLS ARE REQUIRED OF EVERY PLC PROGRAMMER

1
THESE 5 SKILLS ARE REQUIRED OF EVERY PLC
PROGRAMMER Whenever I pick up a new programming
language, I frequently find myself wondering,
"What can I actually accomplish with this and
what else can I learn?" This primarily pertains
to computer programming languages, but when I
first started, PLC programming was similar to
that. For PLC programmers to develop to an
intermediate level, there are five abilities that
they need to possess. I will go into depth on
each of these five talents in this post. You are
familiar with counters, timers, and perhaps even
data movement. See what else we can learn right
now!
1.Know How To Properly Map I/O The best course of
action when dealing with physical I/O is to
always utilize your physical I/O outside of
control applications. To connect your I/O to
memory bits, create either one or two
subroutines. Create as many rungs as you need
I/O by using a straightforward contact connected
to a coil.
2
Although it can be a little laborious, doing this
will end up saving you money. Depending on the
state your sensor needs to read for the
application, the coils can either be XIO or XIC.
In addition, while replacing, what happens if you
don't have a typically open sensor and
substitute a normally closed one? Simple. Your
program will change the contact when you make
that one change, and it will take effect
immediately. Even if a controller contains an
instruction that will accomplish this for you, I
advise against using it. The visualization of the
rungs can aid in problem- solving and
troubleshooting. 2.Learn Multiple Languages IEC
61131-3 specifies a number of PLC programming
languages in fact, PLCGurus.NET wrote an
article that covers all of the languages in the
standard in some detail. Despite the fact that
ladder logic is the most used programming
language, you will almost certainly encounter
others throughout your PLC career. Additionally,
function block diagrams are frequently used, and
reading one is not too difficult. Similar to
digital logic gates are FBD. If you can
comprehend the inputs and outputs, the block
does the necessary operations to produce an
output that may then be connected to another
input through a chain. The final language I'll
discuss is structured text, which I'm seeing used
more and more. You'll frequently hear
"structured text" or "ST" while working with
Allen Bradley, whereas "structured control
language" or "SCL" is used when dealing with
Siemens. They have certain similarities, even if
they are not the same. These two languages act
as a bridge between computer programmes and PLC
programmes. SCL is comparable to Pascal, whereas
ST resembles other coding languages. Because of
their strength and capacity for complicated
processing, these languages are becoming
increasingly prevalent. When working with
arrays, the FOR and WHILE loops are helpful, and
code may be shortened up by using ST rather than
ladder when looping. I frequently use SCL for
lookup tables and sorting algorithms.
3

• Remember that any language will occasionally have
  advantages and disadvantages. Not all languages
  are advantageous in all circumstances. I've
  found that ladder works well for most control
  schemes, but having various languages in your
  toolbox might be helpful if you want to try a
  more involved solution.
• Acquire Networking and Communication Skills
• There are an increasing number of ways to
  communicate and receive data in the modern
  world. PLCs frequently need to link to other
  devices for controls and diagnostics. The right
  connections must be formed and a common
  networking protocol must be developed for the two
  to communicate. As long as the two devices are
  speaking the same language, most communications
  are reasonably simple to integrate in a system.
• Modbus RTU is one of the oldest protocols and a
  need for all control specialists. Since Modbus
  has been in use for more than 30 years, a vast
  number of devices
• are compatible with it. Even as networking
  technology advances, Modbus is still in use all
  across the world today. I've used Modbus in
  various situations, and it has always been
  helpful to me. Modbus TCP/IP is essentially the
  same thing as Modbus RTU in terms of data, but
  it is wrapped in a TCP protocol.
• Modbus RTU is serial communication.
• Ethernet/IP and Profinet (Siemens) are additional
  protocols that are utilized often (Allen
  Bradley). It is not essential to go into great
  depth with these protocols, even if it is
  beneficial to grasp the inner workings of each of
  them. You will be in good hands as long as you
  understand how to use these protocols in your
  controllers, establish communications with other
  devices, and send messages back and forth.
  Exploring Modbus's finer points is something I
  really encourage since it will help you
  comprehend and appreciate communications much
  better because you will know exactly what
  information is being delivered over the wire.
• Learn PID and Process Control

4
Ethernet/IP and Profinet (Siemens) are additional
protocols that are utilized often (Allen
Bradley). It is not essential to go into great
depth with these protocols, even if it is
beneficial to grasp the inner workings of each of
them. You will be in good hands as long as you
understand how to use these protocols in your
controllers, establish communications with other
devices, and send messages back and forth.
Exploring Modbus's finer points is something I
really encourage since it will help you
comprehend and appreciate communications much
better because you will know exactly what
information is being delivered over the
wire. The majority of controllers use PID loops,
which are essentially the same since they
include numerous adjustable variables like Kp,
Ki, Kd, bias, and sampling time. For the purpose
of creating a good, responsive loop without
overshoot, each of these concepts is
essential. A PID loop is an algorithm that,
without getting into too much detail, attempts
to increase or decrease an analogue output to a
point where a process variable is at a specific
setpoint. PID loops have several uses, including
as heating an oven, creating pressure with a
pump, maintaining the level of water in a tank,
or even controlling a servo to spin the shaft to
the desired setpoint while compensating for
momentum to prevent overshooting. The loop
accounts for process disruptions and makes
adjustments by modifying the output. I suggest
reading this post here if you want to understand
more about PID loops and their specifics. Don't
forget to view the comprehensive YouTube series
created by PLCGurus.NET as well. Fred does a
great job of explaining how to use Studio 5000,
Studio 5000 Emulate, and FactoryTalk View Studio
to model, forecast, and optimise the dynamic
response of a closed-loop process. What a
fantastic series! To get you started, here is the
first video in that collection 5.Understand
Indirect Addressing and Arrays Knowing the value
of indirect addressing is one of many abilities
that will make you stand out as a programmer. I
previously explained that many PLCs have several
languages that can provide your code flexibility.
Ladder logic is
5
the primary use of indirect addressing, but when
combined with it, the number of applications
that may be employed in a ladder-only environment
rapidly grows. I'll try my best to describe how
indirect addressing functions in a PLC as an
added bonus to this essay. Let's start with the
tried-and-true illustration of starting up many
motors sequentially with a time delay in between
them to prevent your panel from exploding from
the inrush current. For four or maybe five
motors, you might have many rungs with the exact
same logic on them. What transpires, though, if
you need to switch on 12 or even 32 lights
simultaneously? Your closest buddy is indirect
addressing, and it only takes about three lines
of code to do the work. This is how it
functions. Another illustration. Take an
address, please. As an example for the
RSLogix500's older AB type processors, let's say
B30/0. A "pointer" must be added to this URL in
order to make it dynamic. Brackets are used in
this process. New address will be B30/N70.
What is the value of the pointer is additional
data that we require. Let's begin at 0 for
simplicity. The scan cycle examines the address
B30/0 or B30/0 and evaluates the logic when
it reads the rung with the indirect address.
