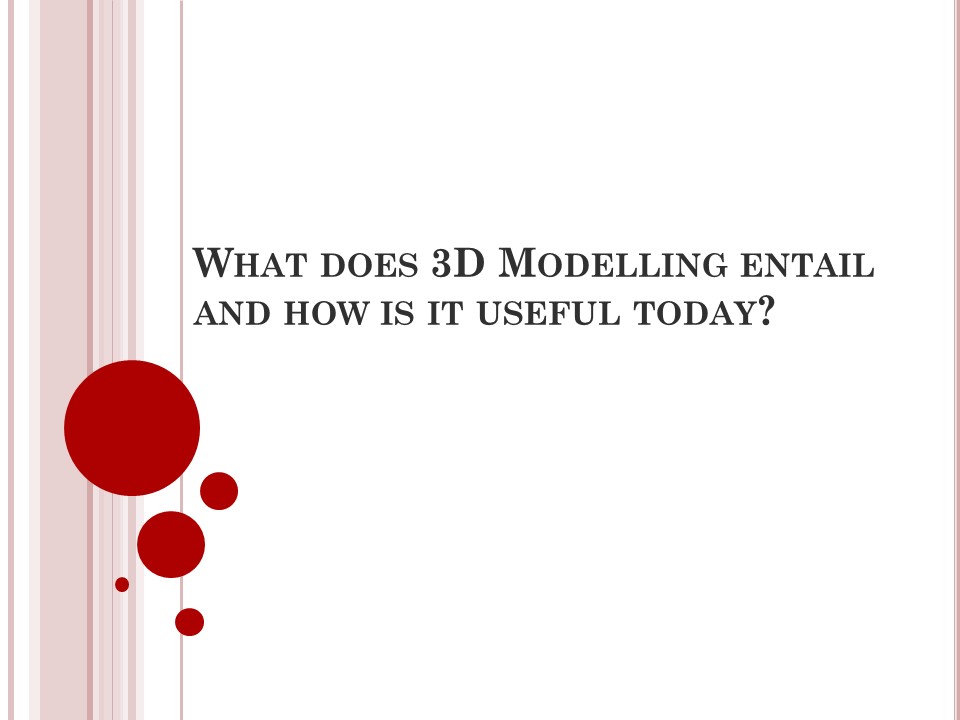

What does 3D Modelling entail and how is it
useful today?
2
A 3D digital representation of any object or
surface can be created using the computer
graphics technology known as 3D modelling. These
3D objects can be manually built or formed
automatically by deforming the mesh or other
vertices. Video games, film, architecture, art,
engineering, and commercial advertising are just
a few of the media that use 3D models.
3
In order to give machine operators feedback on
topics like goal grades and bucket or blade
position, machine control uses a variety of
positioning sensors. The 3D model can be used as
a reference by the machine operators to make sure
the task is being done correctly. With the aid of
GPS technology and machine sensors, employees may
determine their location in relation to the
points of the replica in the field.
4
CAD, which creates a 3D model from survey
data. GPS, which enables architects to specify
exact positions. Light Detection and Ranging
(LiDAR), a technique for distant sensing that
measures various distances using a pulsed
laser. Aerial photogrammetry, a technique that
allows engineers to glean topographical
information from aerial photos acquired by
drones. Point-cloud modelling, in which a model
is built from a collection of three-dimensional
data points created using laser scanning
equipment.
5
ADVANTAGES OF 3D MODELING FOR EARTHWORKS   There
are many benefits to using 3D models for
earthmoving and machine control, including
More effective machine operation Machines run
more effectively because they move exactly in
accordance with the measurements of the 3D model.
You may use 3D modelling to get more done with
your tools in less time.
6
Greater accuracy in the field Machine
operators can more easily follow project plans
because they have access to the same data as
surveyors do.   Better plan accuracy By
finding conflicts, inconsistencies, and other
problems in plans before construction starts, 3D
modelling improves plan correctness and lowers
costs associated with rework.   Lower surveying
expenses 3D modelling eliminates the need for
continual grade verification, resulting in a
decrease in surveying costs. Lower surveying
expenses can help you land more tasks and
generate more money over time.
7
What purposes does 3D modelling serve? SITE
LAYOUT Communication of site plan, including the
positioning of utility and landscape components,
can also be facilitated using 3D models. 2.
POWER CONTROL Machine control is now more
precise, effective, and affordable thanks to 3D
modelling. Machine operators can view the job
site on a screen while seated in the cab,
replacing the need for conventional survey
stakes. Based on measurements from the 3D model,
a system of sensors controls the machine.
8
3. PROGRESS REPORTS AND AS BUILTS In addition to
reporting project progress, 3D models can be used
to create as-builts, which are updated drawings
submitted once a project is complete. Throughout
an assignment, you can collect fresh information
to update your 3D models and depict the site's
current appearance.
