Different types of elevator machines

1

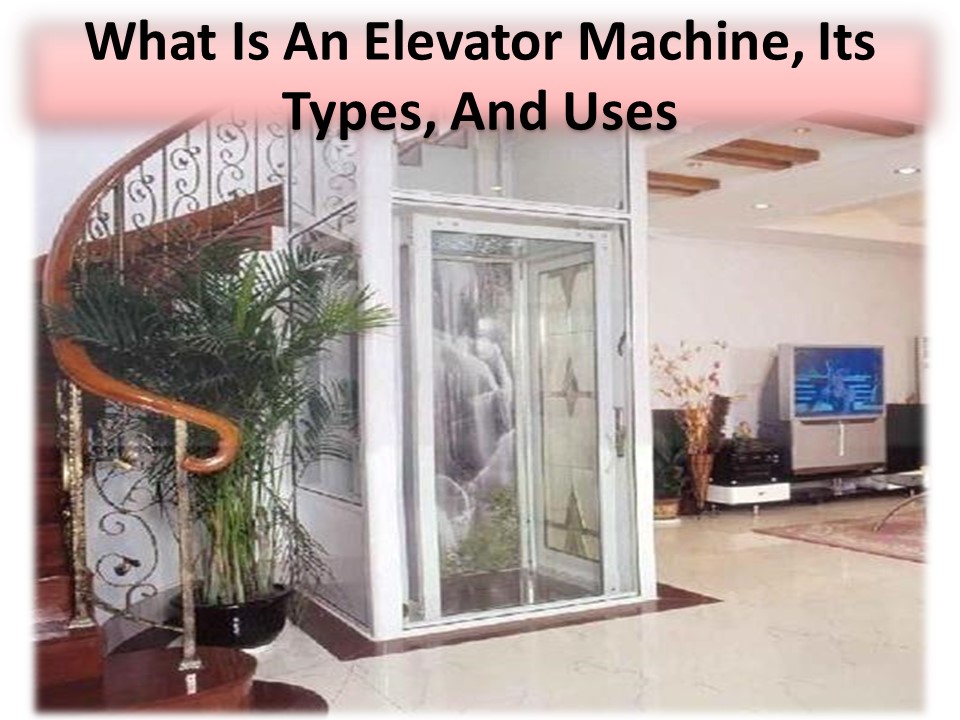

What Is An Elevator Machine, Its Types, And Uses
2

• Nowadays, elevator machine manufacturers have
  made several innovations in constructing the
  elevator to serve various fields. An elevator can
  be termed an electric lift utilized for vertical
  transportation of goods and passengers among the
  floors in buildings using silos or bins. They are
  usually operated with electrical motors that
  drive counterweight system cables for drive
  transactions like a hoist or pump hydraulic fluid
  for lifting a cylindrical piston such as a jack.
• These are used in various areas like
  manufacturing, agriculture, etc. Elevators can be
  categorized into different types depending on our
  needs. Therefore, elevators are commonly used in
  modern multistory constructions, specifically
  wherever the ramps of a wheelchair would not be
  pragmatic. Here, below, the types of elevators
  are briefly discussed.

3
Types Of Elevator Machines

• The different elevators or types include capsule
  lift, building lift, pneumatic elevator,
  hydraulic elevator, freight elevator, passenger
  lift, cable-driven or traction elevator, green
  energy efficient elevators, machine room-less
  elevators and residential elevators, etc.

4
Hydraulic Elevator Machine

• This elevator is power-driven by a piston that
  moves within a cylinder. The piston motion can be
  made by jetting hydraulic oil t the cylinder. The
  piston lifts the lift cab quickly, and an
  electrical valve can control the oil.
• The hydraulic elevator applications involve five
  to six-floor buildings. The working of these
  elevators can be done at a speed of up to 61
  meters or 200 ft for each minute. Entire current
  hydraulic pumps are constructed with a
  solid-state contract or, otherwise, mechanical
  Y-delta starter. For the power supply of an
  electric motor and building, solid-state starters
  are an optimal choice because the windings last
  longer, and there is zero voltage drop over the
  building power supply.
• In a Y-delta type starter, the electric motor can
  be operated by utilizing two contractors at a
  minimal speed after that continues with the full
  speed. Therefore, the hydraulic elevators are
  categorized into four types such as holeless,
  holed, and roped elevators.

5
Pneumatic Elevator Machine

• The pneumatic elevator can be built with an
  external cylinder, and the cylinder is a
  transparent self-supporting cylinder. This
  cylinder consists of modular sections to easily
  fit into one by one. Using the steel material,
  the top of this tube is exclusively designed that
  ensures tight air closing by suction valves and
  inlets. A lift car administers within the
  cylinder, and the head unit on the top cylinder
  surface contains controllers, turbines, and
  valves for controlling the elevator movements.
• Pneumatic elevators are effortless to fit,
  maintain and operate when compared with
  conventional elevators. Because their solid
  design is used in the existing homes. The
  ultimate benefits of using these pneumatic
  elevators include smooth and reliable design,
  energy-efficient, speed and flexibility, and very
  safe to use.

6
Traction Or Cable-Driven Elevator Machine

• The cable-driven or traction elevators are the
  most famous elevators. It is a gearless or geared
  traction-type elevator. It consists of hoisting
  ropes and steel cables that run above a pulley
  attached to the motor. In this type of elevator,
  several hoisting cables and wires are connected
  to the surface of an elevator car, covering
  around it on sheaves at one end, and the other
  end is joined to a counterweight that moves up
  and down on its guide rails.
• The counterweight is half of the passenger's
  weight in the car and equal to the car's weight.
  It means, throughout the lifting process, it
  requires additional power for the extra
  passengers in the car the remaining load is
  maintained with the counterweight. When the
  control system is attached to the lift, it drives
  electric motors in a frontward way, and the
  sheave turns around to move the car lift towards
  upside and stops in the selected floor where the
  count controls the counterweight.

7
Capsule Lift

• The elevator machine manufactures specially
  designed capsule lifts for prestigious buildings,
  known as decoration of a building because they
  enhance the building's beauty. The primary
  features of these elevators include travel
  comfort and ultramodern design offering a large
  panel for viewing. In addition, capsule lifts are
  inexpensive and consistent with minor
  maintenance.

8
Building Lift

• A building moves vertically among the floors of
  the building. These are commonly used in
  complexes, public buildings, multistory
  buildings, and offices. These lifts are essential
  in offering vertical movement, specifically in
  high buildings, for wheelchair and other
  nonchalant building customers. However, some
  types of lists also available for firefighting
  and emigration purposes.

9
Passenger Lift

• In this lift, passengers can travel between the
  flood in the building quickly as it includes a
  lift car that moves vertically in an
  exceptionally equipped lift shift. The control
  system in the lift is customarily designed to
  provide the most economical sharing of passengers
  in an entire building, and the benefits it
  includes are passengers can comfortably travel to
  different floors, fully fixed shaft,
  space-efficient, and no level loadings on the
  building.

10
Freight Elevator

• The elevator machine manufacturers have built the
  fright elevator with significant features like
  the loading capacity of this elevator range from
  2500lbs to 10000lbs. The travel height is up to
  500 feet, and excellent benefits include building
  industrial and commercial applications. Due to
  this flexibility, it is eco-friendly, and the
  door designs can be changed as well.

11
Residential Elevators

• Residential elevators offer multiple to the
  platform and stairlifts. These lifts can be
  easily consolidated in any available home. These
  types of elevators are accessible in different
  styles and effortlessly installed on your home
  walls. The main merit of residential elevators is
  that they can move you securely among floors if
  there were a power failure.

12
Conclusion

• In the above discussion, the overview of an
  elevator and types of elevator machines are
  explained in detail for making you informative
  before contacting any elevator machine
  manufacturers to install the lift in your home,
  commercial or industrial buildings. It's been
  100's of years since the invention of elevators,
  but still, they operate on the same fundamental
  principle. The basic principle has not changed
  over the decades, though some innovations are
  made to meet the people's current requirements,
  offering them a smooth ride and using
  computer-controlled systems.
