Three fundamental butterfly valve types

1

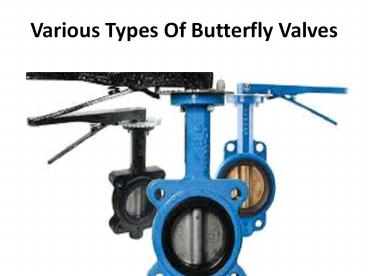

Various Types Of Butterfly Valves
2

• The development of the butterfly valves in
  India has considered the improvement of cycles
  and applications in different enterprises. This
  early on guide is planned to acclimate you to a
  butterfly valve, how it works, and its plan
  varieties.

3
What is a Butterfly Valve?

• A butterfly valve is a component that manages the
  progression of materials inside huge line widths
  by the quarter-turn revolution.
• A pole takes care of through the focal point of a
  plate, and this pole is associated with an
  actuator that controls the circle's movement. The
  plate position is either equal or opposite to the
  progression of media. A butterfly valve varies
  from different valves because the plate is
  dependably in the stream, causing a strain change
  for any valve place.
• Sound frameworks depend on reliable valves. Our
  butterfly control valve determination comprises
  circle valves impeccably estimated for different
  applications and made as per industry norms.
  Observe the best butterfly valve for your
  particular activity by perusing our items page.
  For custom parts, allude to our solicitation a
  statement page.

4
For what reason is it called a Butterfly Valve?

• A few butterfly valves India are named for their
  shape, like ball valve, globe valve, needle
  valve, etc. Different valves are named for their
  development and capacity - entryway valve, plug
  valve, squeeze valve, life valve, slide valve,
  and so forth. A butterfly control valve is
  likewise named for the development it makes.
• The butterfly valve gets its name from its
  development like a wing for flight. The bar
  resembles a butterfly's body, while the circle
  moves like a butterfly wing. A butterfly valve's
  movement is like that of a butterfly that has
  arrived with the wings gone all over with a
  90-degree movement.

5
What is a Butterfly Valve Used For?

• A butterfly valve controls the stream by
  beginning, easing back, or halting media. The
  circle opens and closes with a low-force pivot of
  90 degrees and works for any viable application.
  Since they cost less and are lighter weight, the
  butterfly valve is frequently liked over
  different sorts of valves.
• For certain cycles, outrageous temperatures and
  erosion are factors that would effectively think
  twice about the valve's seal. The butterfly valve
  endures outrageous cold or outrageous hotness.
  This implies the seal keeps up with its
  trustworthiness which is basic for high-stakes
  applications, for example, energy creation and
  petrol handling (as one break could compromise
  public wellbeing or the climate).

6
Standard of Operation

• The butterfly valve in India is named a
  quarter-turn valve. It works like a ball valve
  for speedy shutoff, yet the butterfly valve can
  likewise open and close steadily, unlike a ball
  valve. This distinction implies that the plate is
  dependably present in the stream and considers a
  pressure drop.
• This plate is mounted at the focal point of the
  line. Plate development is constrained by a bar
  embedded through the circle and an actuator
  situated external the valve. Turning the actuator
  positions the circle either opposite or
  corresponding to the stream.

7
Where could the Butterfly Valve Located be?

• For butterfly valve parts direction, there are a
  few standard rules. The butterfly valve needs a
  few separations from different parts like
  siphons, elbows, and different valves - 6-line
  breadth partition is great.
• Typically, the butterfly valve is introduced with
  the valve stem arranged upward with the actuator
  straight above it, however now and again, the
  stem is arranged on a level plane. When
  associated with a siphon or check valve, there
  should be leeway for the circle, so it doesn't
  impede different parts close by.

8
3 Main Butterfly Valve Types

• While these valves all do a similar capacity,
  there are varieties of butterfly valve plan to
  suit various tasks. The following are the three
  fundamental butterfly valve types.
• 1. Zero-offset Butterfly Valve
• "Concentric" or "elastic situated" is different
  for the zero-offset plan. Zero offsets imply
  there is no balance by the stem of the valve. The
  valve seals employ obstruction along the plate
  edge at the stem between the circle and the
  elastic seat.
• The situated elastic valve has the most minimal
  strain rating (up to 250 PSI) and endures heat up
  to 400F. Its elastic seat encases the body to
  forestall contact with the material, which keeps
  up with the virtue of the media.

9

• 2. Superior Performance Double Offset Butterfly
  Valve
• Butterfly valves India are alluded to as a
  twofold counterbalanced because the offset is in
  two spots at the line of the circle seat/body
  seal and the drag. Off-kilter situating expands
  strength for the seal. Elite execution valves
  endure tension up to 1440 PSI and temp up to
  1200F.
• A cam-activity happens from the stem being behind
  the plate as it rubs against the revolution at
  90 for the initial 10 levels of opening and the
  10 levels of shutting.
• 3. Triple Offset Butterfly Valve
• The best kind of butterfly valve for
  high-pressure frameworks is the triple balanced
  butterfly valve. Of the three sorts, the triple
  offset is the most exceptional with lower
  discharges and is intended to work with different
  conditions. Its hotness resilience is 1200F as
  it can endure 1,480 PSI of strain.
• Like the twofold balanced valve, the triple
  offset valve comprises two counterbalances
  arranged in the middle, yet with a third balanced
  having cam activity with right-calculated
  conelike fixing. It is frictionless and
  long-wearing by the metal seal parts not
  connecting until their last point.

10
Normal Butterfly Valve Applications

• A few cycles need more lenient and wear-
  valves butterfly valves India with unique
  elements. The following are a few normal
  applications that depend on the interesting
  systems of a butterfly control valve.
• Food Processing
• A straightforward plan, high strength, and low
  support are expected to manage liquid streams in
  any funneling framework. Confirmed Food Grade
  Seat is best for the Food Processing area, so a
  White seat is liked.
• While standard tough situated valves are not 3A
  supported, there are numerously available that
  keep up with sterile associations inside and
  outside. The body material for the valve can go
  from Epoxy covered iron to Nylon 11 covered iron
  to Bronze, 304SS, and 316SS.

11
Conclusion

• The butterfly valves in India are generally found
  in processing plants. These would commonly
  utilize the more "top of the line"
  High-Performance valve with Steel Bodies or the
  Triple Offset plan "Fire Safe" and air pocket
  tight. Numerous applications, including water,
  utilize the versatility situated rendition.
