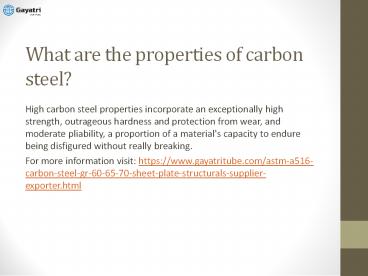

What are the properties of carbon steel?

1
What are the properties of carbon steel?

• High carbon steel properties incorporate an
  exceptionally high strength, outrageous hardness
  and protection from wear, and moderate
  pliability, a proportion of a material's capacity
  to endure being disfigured without really
  breaking.
• For more information visit https//www.gayatritub
  e.com/astm-a516-carbon-steel-gr-60-65-70-sheet-pla
  te-structurals-supplier-exporter.html

2
ASTM A516 Carbon Steel Gr.60, 65, 70 Sheet /
Plate / Structurals Manufacturer in India

• A516 Low-Temperature Carbon GR 60, 65 and 70
  Sheet Plate Structural is relevant in various
  general purposes and ventures like heater
  hardware, thermal energy stations, food preparing
  plants, compound handling plants, structures,
  spans, transmission posts, spans, freight
  holders, underlying tubing, auto persuaded truck
  parts, carry boxes, development gear, railroad
  vehicles, lighting standard and some more.

A516 Carbon Gr.60, 65, 70 Sheet / Plate /
Structurals Mechanical Properties
Grade Tensile strength Yield strength Elongation min,
SA516 Gr. 60 415-550 Mpa 250 Mpa 21
SA516 Gr. 65 450-585 240 Mpa 19
SA516 Gr. 70 485-620 Mpa 260 Mpa 21
3
Carbon Steel EN-8, EN-19, EN-24, EN-31 Rod / Bars
/ Wire / Wire Mesh Manufacturer in India

• Tool Steel EN8, EN19, EN24, EN31 Round Bars,
  Rods, Wire, Wire Mesh Chemical Composition

Grade
Grade C Si Mn Cr Mo W
EN-1A 0.007 TO 0.15 0.10 0.80 TO 1.00 S P
EN-1A 0.007 TO 0.15 0.10 0.80 TO 1.00 0.20 TO 0.30 0.70 MAX
EN-8 0.35 TO 0.45 0.05 TO 0.30 0.60 TO 1.00 S P
EN-8 0.35 TO 0.45 0.05 TO 0.30 0.60 TO 1.00 0.06 MAX 0.06 MAX
EN-9 0.50 TO 0.60 0.05 TO 0.30 0.5 TO 0.80
EN-19(V 320) 0.35 TO 0.45 0.10 TO 0.30 0.5 TO 0.80 0.90 TO 1.40 0.20 TO 0.40
EN-24(V 130) 0.35 TO 0.45 0.10 TO 0.35 0.45 TO 0.70 0.90 TO 1.40 0.20 TO 0.35 NI
EN-24(V 130) 0.35 TO 0.45 0.10 TO 0.35 0.45 TO 0.70 0.90 TO 1.40 0.20 TO 0.35 1.3 TO 1.8
EN-31 R-100 0.90 TO 1.20 0.10 TO 0.35 0.30 TO 0.75 1.00 TO 1.60
EN-36C E-200 0.12 TO 0.18 0.10 TO 0.35 0.30 TO 0.60 0.60 TO 1.10 NI
EN-36C E-200 0.12 TO 0.18 0.10 TO 0.35 0.30 TO 0.60 0.60 TO 1.10 3.0 TO 3.75
EN-42 0.70 TO 0.85 0.10 TO 0.40 0.55 TO 0.75
EN-44 0.90 TO 1.20 0.30 0.45 TO 0.70
EN-45 F-110 50 TO 0.60 1.5 TO 2.0 0.70 TO 1.00
EN-351 0.10 TO 0.20 0.35 0.60 TO 1.00 0.40 to 0.80 0.08 to 0.10 NI
EN-351 0.10 TO 0.20 0.35 0.60 TO 1.00 0.40 to 0.80 0.08 to 0.10 0.60 TO 1.00
EN-353 0.10 TO 0.20 0.35 0.50 TO 1.00 0.75 TO 1.25 0.08 to o.15 NI
EN-353 0.10 TO 0.20 0.35 0.50 TO 1.00 0.75 TO 1.25 0.08 to o.15 1.00 TO 1.50
4
Structural Steel S355J2 / S355J2N / S275JR
Sheet, Plate Structurals Manufacturer in India

• The Low Carbon S355J2, S355J2N, S275 JR plates
  are valuable in crane developments, substantial
  street vehicles, mining gear, load-dealing with
  hardware, pressure vessels, and underlying
  steelworks. These carbon steel plates have a
  powerful life because of their strength. They
  don't lose their solidarity at all periods of
  development. They are consequently helpful in
  development and channeling applications. The more
  drawn out assistance life of plates is
  guaranteed. Their beast strength makes plates
  useful for transcending buildings. The
  flexibility of plates makes them simple to oblige
  in numerous plans. The welding capability of
  plates consolidated this flexibility. Their great
  formability, adaptability make them functional
  into private and business regions.

5
Carbon Steel Compression Tube Fittings
Manufacturer in India

• ASTM A105 Carbon Steel Tube Fittings are
  appropriately handled according to worldwide
  quality principles. These pressure tube fittings
  utilize the most cutting edge innovation and the
  best apparatuses. It is in every case better to
  perform prompt and last toughening in a vacuum
  climate. These deal some incredible components
  like scraped area opposition, dampness
  resistivity. These fittings are exceptionally
  tough and solid. These cylinder fitting are non
  destructive in the impacts of the vast majority
  of the acids and bases, even in the
  high-temperature range. These are known to give
  exact dimensional exactness. Along these lines
  you will track down an insignificant measure of
  spillage in it. These are extremely advantageous
  to use for an assortment of modern applications.
  The solidness it conveys is undeniably more
  better than its partners. It offers further
  developed nerve obstruction and lower string
  erosion. What's more, it offers astounding
  conduction of power.

6
IS 2062 Sheet / Plate / Structurals Manufacturer
in India

• Carbon Steel IS 2062 is material in various
  businesses and purposes, for example, food
  preparing plants, substance handling plants,
  heater hardware, thermal energy stations, and so
  forth Likewise, IS Steel is normally utilized in
  profound metal, uncovering ventures, trains,
  assembling of Steel, substance processing plants,
  water pipelines, heat exchangers, paper and mash
  organizations.

Carbon IS 2062 Sheet Plate / Structurals
Mechanical Properties
Element Tensile StrengthMin, Mpa Yield Stress (lt20 mm) Yield Stress (20-40 mm) Yield Stress (gt40 mm) Elongation at gauge length 5.65 v?o Bend Test (min)
Carbon Steel IS 2062 410 250 240 230 23 min 3t (t is 3 times thickness)

7
SA 179 Carbon Steel Tube Manufacturer in India

• These are helpful in high-temperature
  applications for moving fluids. Additionally,
  they are significant in hardware, for example,
  heat exchangers, superheaters, condensers,
  boilers, and others. Every one of these are heat
  move measure hardware that requires a solid item
  that can support high temperatures for a more
  drawn out time frame.

SA 179 Mild Steel Tube Mechanical Properties
Grade Grade ASTM A179 / ASME SA179
Tensile Strength (MPa) min Tensile Strength (MPa) min 325
Yield Strength 0.2 Proof (MPa) min Yield Strength 0.2 Proof (MPa) min 180
Elongation ( in 50mm) min Elongation ( in 50mm) min 35
Hardness Rockwell B (HR B) max 72
Hardness Brinell (HB) max
8
About us

• Engaged as the leading wholesale dealers and
  producers of Stainless Steel Products, Gayatri
  Tube India, is a partnership-based company. We
  are delighted to introduce Gayatri Tube India as
  one of Stainless Steel Metal Products ' leading
  stockist, importer, manufacturer in India. We are
  a big importer of steel products from Stainless
  Steel Tubing, Stainless Steel Tube, Stainless
  Steel Flange and more. Established in the year
  1948, We at Gayatri Tubes, aim to give our
  consumers reliable and high-caliber goods which
  are on an equal footing with their preferences
  and needs.
• For more information visit https//www.gayatritub
  e.com/

9
Thank you
