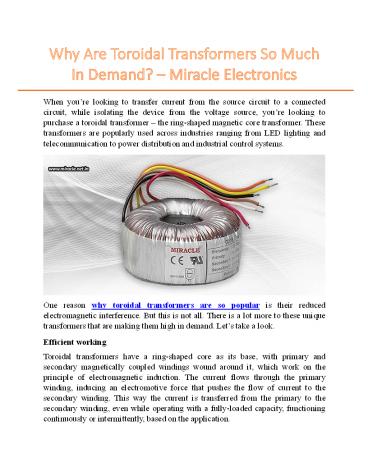

Why Are Toroidal Transformers So Much In Demand? – Miracle Electronics

1
When youre looking to transfer current from the
source circuit to a connected circuit, while
isolating the device from the voltage source,
youre looking to purchase a toroidal
transformer the ring-shaped magnetic core
transformer. These transformers are popularly
used across industries ranging from LED lighting
and telecommunication to power distribution and
industrial control systems.
One reason why toroidal transformers are so
popular is their reduced electromagnetic
interference. But this is not all. There is a lot
more to these unique transformers that are
making them high in demand. Lets take a
look. Efficient working Toroidal transformers
have a ring-shaped core as its base, with primary
and secondary magnetically coupled windings
wound around it, which work on the principle of
electromagnetic induction. The current flows
through the primary winding, inducing an
electromotive force that pushes the flow of
current to the secondary winding. This way the
current is transferred from the primary to the
secondary winding, even while operating with a
fully-loaded capacity, functioning continuously
or intermittently, based on the application.
2
Physical advantages Toroidal transformers have a
unique compact design, which makes them extremely
light in weight and easy to handle. Moreover,
they can also be easily installed in cramped up
spaces, unlike other kinds of transformers.
Furthermore, because the windings on the core
dont have any air gaps in between, they are also
resistant to external EMI. Low EMI advantage The
ring-shaped core used is made wither of iron
powder or a ferromagnetic material. The
cross-section of the core, and the transformer
itself, is mostly a symmetrical circle, which
helps to reduce the magnetic flux. The design and
winding pattern of the core reduces the number
of coils, which help reduce electromagnetic
interference and resistive losses. This low EMI
is the reason why toroidal transformers find
their usage in audio and video applications, and
most popularly in amplifiers. Low
temperature The short windings used within a
toroidal transformer act as a shield, keeping the
system temperature lower than normal, which
improves both the overall efficiency and
electrical performance of the transformer. The
short windings also reduce the humming sound,
and creates a close to ideal magnetic field. 100
utilization of energy Toroidal cores enable
almost 100 utilization of energy with minimal
dissipation. The energy required to maintain the
magnetic field is much lesser in these
transformers, as compared to other transformer
types. With all of these benefits, what seems to
be a cherry on the cake is that toroidal
transformers can be easily customized to suit
individual requirements and applications. This
means that they do not have compatibility issues
with most equipment. But, all you need to take
care of is that you approach professional and
experienced toroidal transformer manufacturers in
India who can perform the task easily and
responsibly. And, Miracle Electronics is one such
name that you can trust when you want a
tailor-made toroidal transformer, may it be for
electronics, automotive, security systems,
medical equipment, or any other application.
Also, you can rest assured that youre getting
nothing but the best here, because every
3
transformer manufactured here is RoHS and REACH
compliant, also available with CE and UL marks
on request.
