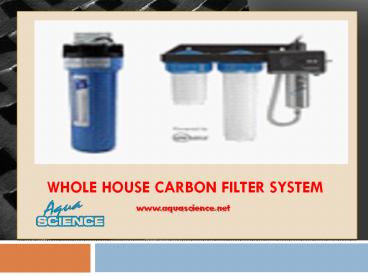

Whole house carbon filter system

1
Whole house carbon filter system
www.aquascience.net
2
Filter system
Whole house carbon filter system offer the
versatility to meet all of your large-capacity
filtration needs, including high flow and heavy
sediment applications. The extra-large housing
allows for greater cartridge capacity, reducing
the number of vessels required for high flow rate
applications. Sumps are constructed of durable
reinforced polypropylene.This package
includes (1) Pentek Housing Steel Mounting
Bracket/Screws Spanner Wrench Extra O-Ring (2) 5
Micron Poly String Filter
3
Pentek 10" Big Blue Filter Housing with 3/4"
Inlet/Outlet Package - without push-fit fittings
4

• Large capacity housing suitable for high flow
  applications
• 10" and 20" lengths available in opaque and clear
• Pressure relief/bleed on inlet side of cap
• Accepts 4 1/2" diameter cartridges
• Big Blue Filter Housings offer the versatility to
  meet all of your large-capacity filtration needs,
  including high-flow and heavy-sediment
  applications. The extra large housing allows for
  greater cartridge capacity, reducing the number
  of vessels required for high flow-rate
  applications. Sumps are constructed of durable
  reinforced polypropylene and are available in
  both 10" and 20" lengths.

5

• The high-flow polypropylene (HFPP) cap is
  available with 3/4", 1" or 1 1/2" NPT inlet and
  outlet ports.
• The 1 1/4" internal port allows a greater volume
  of liquid to pass through the HFPP cap more
  rapidly.
• Big Blue housings are compatible with a broad
  range of chemicals and are available with or
  without a pressure relief button. They accept a
  wide variety of 4 1/2" diameter cartridges.
• Big Clear Filter Housings offer on-site
  examination of flow, performance, and cartridge
  life and are ideal for a variety of applications.
  The blue polypropylene caps are available with an
  optional pressure-relief button on the inlet side
  to relieve pressure inside the housing when
  changing filter cartridges.

6
Valve-In-Head Housings Valve-in-head housings
incorporate the same rugged design and
application features as our Standard 3/4" NPT
housings. The internal valve-in-head allows both
inlet and outlet ports to be simultaneously
shut-off with a half turn of the handle. This
eliminates the need for external shut-off valves.
Radial sealing O-rings and sealing surfaces are
continuously cleaned each time the valve is used,
ensuring leak-proof operation. Valve-in-head
filter housings are available in 10" and 20"
lengths and will accommodate a wide range of
2-3/8" to 2-7/8" diameter cartridges and are
available with either reinforced polypropylene or
clear FDA-compliant Styrene-Acrylonitrile (SAN)
sumps.
