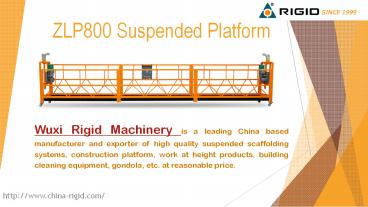

ZLP800 Suspended Platform

1
ZLP800 Suspended Platform
Wuxi Rigid Machinery is a leading China based
manufacturer and exporter of high quality
suspended scaffolding systems, construction
platform, work at height products, building
cleaning equipment, gondola, etc. at reasonable
price.
2
Description

• Rigid ZLP800 Suspended platform is designed
  particularly for heavy applications on facades,
  chimneys, silos, bridges etc.
• The complete system consist of the working
  platform equipped with two electric LTD hoists
  and the support wheels, suspended by means of
  steel wire ropes form a suspension structure

3
Technical Information

• Rated Load 1000kgs
• Lifting Speed 9m/min
• Voltage-3Phase 380V/(415V/220V)
• Frequency 50 Hz/60Hz
• Power 2.2kw2
• Hoist LTD100
• Safety Lock LSF310
• Dia. of Wire Rope 431SWFC-10.2mm
• Platform Size (2.53)0.761.45m
• Weight of Suspension Jibs 340kg
• Weight of Lifting Part Aluminium340kg/Steel
  520kg
• Counter Weight 1200kg
• 20 GPQty of Package 8

4
Platform Suspension

• The different variants are to be distinguished by
  their suspension principles. Three different
  stirrups allow to choose the platform the best to
  your requirements.
• End Stirrup
• Fitted at the ends of the platform.

5

• Frame Stirrup
• Slipped over the platform like a frame

6

• L Stirrup
• Placed at the rear of the platform behind the
  worker.

7
