Title: EDM Machining Services


1

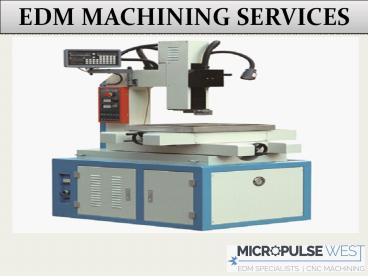

EDM MACHINING SERVICES
2
About US
  • Micro pulse West was founded in 1994. Our goal
    was to create a customer-oriented company where
    dedicated professionals would go the extra mile
    to provide customers with outstanding service.
    Our personalized services are available 24 hours
    a day. Micro pulse West is here to provide you
    with the machining services you need.

3
Our services
Micro pulse West has the skill and expertise to
manufacture parts and components to the
specifications of the most demanding and highly
regulated industries in the world. Regardless of
the industry youre in or the material,
tolerances or finish you need, we know youll be
happy with our work.
4
RAM/Sinker EDM Machining Services
RAM/Sinker EDM, sometimes called cavity type EDM
or volume EDM, uses specially shaped, graphite,
copper or tungsten electrodes which is submerged
with the work piece in dielectric fluids. The
electrode is connected to a power source attached
to a ram or head, and slowly fed into the work
piece. Which then creates a spark to sink or burn
a shape into the material being machined.
5
Wire EDM Machining Services
Wire EDM (A.K.A Wire-Cut EDM or Wire Cutting)
uses a thin single strand of spooled wire that is
fed through a work piece and submerged or flushed
with deionizer water. The deionizer water
constantly flushes away small particulates as the
electrode cuts the material and maintains thermal
stability. There is no physical contact between
the wire and the machined part. The wire controls
the path of the electrical discharge and as the
wire voltage charges it removes layers of
material with each pass.
6
Small Hole EDM Machining Services
Small Hole EDM is the process of using a hollow
electrode that spins around a spindle, similar to
a drill and drill bit, and uses the small hollow
electrode to guide the electrical pulses through
metal. The electrode is made of either brass or
copper tubing and is electrically charged by a
servo-controlled generator producing the
spark. Since the holes are cut via guided
electric spark, and not by the electrode itself,
this leaves the conductive material free of burrs
and other deformities. Small Hole EDM is also
effective in simpler applications, such as
removing broken taps drills from cavities.
7
444 W. 21st St.Ste. 101Tempe, AZ 85282Phone
1-480-470-8061Fax 1-480-966-2323
