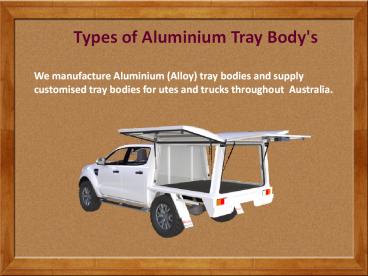

Types of Aluminium Tray Body's

1
Types of Aluminium Tray Body's
We manufacture Aluminium (Alloy) tray bodies and
supply customised tray bodies for utes and trucks
throughout Australia.
2
Boxer Alloy Tray
The Boxer brand is a whole new concept launched
in 2015. The Boxer Aluminium tray is

• In stock, ready to fit (no waiting for
  production)
• Available for Single Cab, Extra Cab Dual Cab
  utes
• Can be purchased unfitted, ready for you to fit

3
Medium Duty Alloy Tray
Medium Duty Alloy Tray Body is built using the
following material specifications

• Extruded alloy deck rated load 1.5 tonne
• 3mm galvanised steel main runners (chassis
  members)
• 230mm height extruded alloy drop sides
• Cab protector 40mm diameter pipe

4
Heavy Duty Alloy Tray
Heavy Duty Alloy Tray Body is built using the
following material specifications

• Extruded alloy deck rated load 3 tonne
• 3mm galvanised steel main runners (chassis
  members)
• 250mm height extruded heavy duty alloy drop sides
• 25mm diameter tie rails along the sides and rear
  of tray body

5
Exteme Duty Alloy Tray
Exteme Duty Alloy Tray Body is built using the
following material specifications

• Extruded alloy deck rated load 6 tonne
• 4mm Duragal steel main runners (chassis members)
• Welded rear corners coaming
• 25mm diameter tie rails along the sides and rear
  of tray body

6
Ultra Alloy Tray
Ultra Alloy Tray Body is built using the
following specifications

• Extruded alloy deck rated load 1.5 tonne or 3
  tonne
• 3mm galvanised steel main runners (chassis
  members)
• 75mm cab protector bar, in polished or satin
  finish
• 230mm or 250mm height extruded alloy drop sides

7
Contact Us
Tiger Trays Address 123 Hume Highway Lansvale
2166 NSW, Australia Phone no. [phone]
Fax no. [phone] Business Email
sales_at_accessoryworld.com.au
www.tigertrays.com.au
