TRANSATLANTIC TUNNEL

1

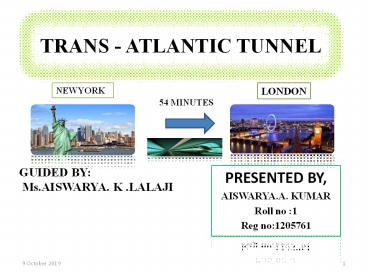

TRANS - ATLANTIC TUNNEL
NEWYORK
LONDON
54 MINUTES
GUIDED BY Ms.AISWARYA. K .LALAJI

• PRESENTED BY,
• AISWARYA.A. KUMAR
• Roll no 1
• Reg no1205761

2
CONTENTS
PATH
HISTORY
FACILITIES
CONSTRUCTION
3
(No Transcript)
4
PATH
Iceland
Greenland
Norway

• Route depends on

Canada

• Earlier proposed path passes through
  Canada,Greenland ,Iceland and Norway.
• Practical path 3100 mile undersea.

5
TIMELINE
1895
Jules .Verne suggested idea
1888
Ernst .G. Frankel proposed idea
1935
Film named Trans -atlantic released
Harry. Harison wrote science fiction
1972
6
FACILITIES PROVIDED
7

• Power and communication
• Power provided by generators to substations in
  tunnel
• Service tube provides power and communication

8

• Safety
• Massive GPS monitors tunnel as well as its entire
  cables
• For any shift in seafloor automated system get
  works by retensioning of cables
• Sensors watch problems and computers would be in
  disaster mode

9

• Change in speed
• Passenger discomfort caused
• Solutions
• Use pivoting /rotating seats
• Airlock

10
Fire

• Most concerned problem faced by tunnel engineer
• Massive suppression systems installed

11
MATERIALS OF TRANSATLANTIC
Steel
12
Have a look on how it would be built???
13
METHODS OF CONSTRUCTION

• A)IMMERSION TUNNEL
• Tunnel section
• Tunnel sections would be made in Holland
  factories
• Concrete is poured and made to set
• Each 300 foot long section consumes 30,000 tonnes
  of steel and concrete
• 54,000 sections needed for trans -atlantic

14
Cont

• 2) Moved to sea
• Each section sealed tight with steel buckells at
  each end
• Dry dock flooded and massive tubes towed to sea

15
Contd

• 3)Keep in position
• Immersion pontoon carry each section directly
  above its position in underwater
• It is partially flooded cause it to sink
• Divers place sections in right place

16
Contd

• 4)Join different sections
• Lining done on each joint
• Huge rubber gaskets used
• Above method was used
• in construction of BART

17

• B)SUBMERGED FLOATING TUNNEL
• Transatlantic would be seen 150 -300
• m below surface
• Advantages
• Deep enough to avoid interference
• Avoid high pressure resistance at bottom
• Feasible
• Firstly proposed in Norway

18

• VAC TRAIN
• Forces that reduce speed
• Friction(Maglev)
• Airresistance(Vaglev)
• Vaglev provided by 100 jets working 24 hours for
  2 weeks
• Provides 6400-8000 kmph

19
Methods to keep tunnel in position
20

• INSERTION OF PIERS
• Piers are inserted in rivers and streams at
  regular interval
• Acts as underwater bridge
• Cost is thousands of dollars

21

• SUPPORT FROM TOP
• Huge floating pontoons
• might hold tunnel in
• position from top
• Atlantic currents carries
• 100 times water a day
• Home to Gulf stream

22

• SYSTEM IN OIL PLANT
• Uses
• Steel pipes
• Suction anchors
• Suction of water creates vaccum
• Works on principle of upside
• pendulum

23
Hindrances in construction
24
Contd
25
Compare TAT with winners in Sea and Air
FEATURES TRANSATLANTIC CONCORD BLUERIBAND
Speed 6400-8000 kmph 2179 kmph 47.15 knots
Time 52 min 3 hours 3 days 15 hours 25 min
Passenger Capacity 100 1500
Fuel used Uses electricity Jet A-1 Energy efficient
Intial Cost 17 billion- 13 trillion 7 million 173.3 million
Accidents Paris Incident Weather,Collided with ice berg
26
CONCLUSION

• If ever built transatlantic tunnel would be
  massive construction project in human history
• It is an idea for which every civil engineer must
  be proud of.
• The words of Frank Davison Trans atlantic is
  not beyond reach of modern science and
  technology reveals it can happen in near future
• The main hindrances are time and cost

27
REFERENCES

• Harry Harrison(1972)Tunnel through
  Deep,Analog Magazine,April issue
• Taylor and Francis Journal of Transatlantic
  Studies,2002
• Vaccum tube train by Carl Hoffman,April 13,2004
• University of Nairobi(2012),Student
  Engineer,September-October 2012
