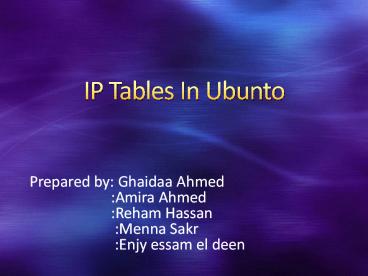

IP Tables In Ubunto

• Prepared by Ghaidaa Ahmed
• Amira Ahmed
  Reham Hassan
  Menna Sakr Enjy essam el
  deen

2
Presentation Index

• Introduction
• What Is Firewall
• What Is IP Tables
• IP Tables structure
• How IPTables works
• IP Tables Configurations

3
Introduction

• A firewall is basically the first line of defense
  for your network. The basic purpose of a firewall
  is to keep uninvited guests from browsing your
  network. A firewall can be a hardware device or a
  software application and generally is placed at
  the perimeter of the network to act as the
  gatekeeper for all incoming and outgoing traffic.
• A firewall allows you to establish certain rules
  to determine what traffic should be allowed in or
  out of your private network..

4
Cont.

• Depending on the type of firewall implemented
  you could restrict access to only certain IP
  addresses or domain names, or you can block
  certain types of traffic by blocking
  the TCP/IP ports they use

5
So What Is Firewall?
6
Cont.

• Firewall is a part of computer network which is
  designed to block unauthorized packets and allow
  authorized ones. It handles traffic over ports
  and depending upon certain rule-sets, it allows
  or blocks the packet flow. We can easily find
  these firewalls in many institutes and
  organizations, where access to social networking
  sites is not permitted for the users.
• We can say that is? Network barrier
  ? Packet
  filtering
  ? Packet Mangling (NAT)

7
Firewall Usage

• Personal Firewall
• Multi-homed (DMZ) Firewall
• Router Firewall
• Internet connection sharing (NAT)
• Transparent Proxying
• Content filtering
• Poor-mans load balancer
• Internet Hotspots

8
What is iptables?
9
Cont.

• The most popular firewall / NAT package running
  on Linux was ipchains . It had a number of
  limitations, the primary one being that it ran as
  a separate program and not as part of the kernel.
  The Netfilter organization decided to create a
  new product called iptables in order to rectify
  this shortcoming. As a result of this, iptables
  is considered a faster and more secure
  alternative.  iptables has now become the default
  firewall package installed under RedHat and
  Fedora Linux.

10
Cont.

• The Linux kernel has the built-in ability to
  filter packets, allowing some of them into the
  system while stopping others. The 2.4 kernel's
  netfilter has three built-in tables or rules
  lists . They are as follows
• Filter The default table for handling network
  packets.
• NAT Used to alter packets that create a new
  connection.
• Mangle Used for specific types of packet
  alteration.

11
IPTables Structure
Filter Tables
Nat Tables
Mangle Table
INPUT CHAIN
OUTPUT CHAIN
INPUT CHAIN
OUTPUT CHAIN
OUTPUT CHAIN
PREROUTING CHAIN
FORWARD CHAIN
FORWARD CAHIN
POSTROUTING CHAIN
PREROUTING CHAIN
POSTROUTING CHAIN
12
Filter table

• It is the default table and includes three
  chains
• INPUT Chain For packets coming into the system
  or destined for the system.
• FORWARD Chain For packets travelling (being
  routed) through the system.
• OUTPUT Chain For packets leaving the system or
  originating from the system.

13
NAT table

• It has three chains
• PREROUTING Chain For altering the packets just
  after they enter the system
• OUTPUT Chain For packets which are leaving the
  system.
• POSTROUTING Chain For altering the packets
  which are about to leave the system.

14
MANGLE Table

• This  table contains five chains
• PREROUTING
• OUTPUT
• INPUT
• FORWARD
• POSTROUTING

15
How Iptables works

• The iptables firewall operates by comparing
  network traffic against a set of rules. The rules
  define the characteristics that a packet must
  have to match the rule, and the action that
  should be taken for matching packets.
• When the defined pattern matches, the action that
  takes place is called a target. A target can be a
  final policy decision for the packet, such as
  accept, or drop.

16
Cont.

• ACCEPT means to let the packet through.
• DROP means to drop the packet on the floor.
• QUEUE means to pass the packet to userspace.
  (How the packet can be received by a userspace
  process differs by the particular queue handler.

17
Cont.

• These rules are organized into groups
  called chains
• A user can create chains as needed. There are
  three chains defined by default. They are
• INPUT This chain handles all packets that are
  addressed to your server.
• OUTPUT This chain contains rules for traffic
  created by your server.

18
Cont.

• FORWARD This chain is used to deal with traffic
  destined for other servers that are not created
  on your server. This chain is basically a way to
  configure your server to route requests to other
  machines.
• Each chain can contain zero or more rules, and
  has a default policy. The policy determines what
  happens when a packet drops through all of the
  rules in the chain and does not match any rule.

19
IPTables Configration

• Functionally , IP tables discards network "
  packets " according to CHAINS of rulesstored in
  the PC 's memory . These chains organize the
  rules and determine the order in which they are
  binding

20
IP Address for Vm 1
21
IP Address fo Vm2 Firewall
22
IP Address of windows mashine if config
23
Ping the firewall VM
24
Cont.
25
Check Defult IPTables.No Rules yet
26
Allow established session to receive traffice
27
Rule added to the inpuy chain
28
Allow SSh(port 22) traffic
29
Rule add to chain
30
Telnet from vm1 to firewall vm
31
SSH from vm1 to firewall vm
32
Telnet from Windows to firewall vm
Telnet connection established
33
SHH to firewall from windows
34
Enter firewall credentials .SHH connection
Established
35
Reject icmp and rule added
36
Ping requsted are blocked by firewall
37
Cont.
38
Block port 23 and rule add
39
Firewall refuse telnet connections
40
Delete rule 4 for example from chain
41
Block particular IP rule
42
Packets now dropped from vm
43
Final IPTABLE configration
44
Now we have

• IP Blocking
• DROP all -- 192.168.248.135 anywhere
• SHH Port Enabled
  ACCEPT tcp anywhere
  anywhere
• ICMP Blocking
• REJECT icmp - -anywhere anywhere
• Telnet Port Blocking
• REJECT tcp - - anywhere anywhere
