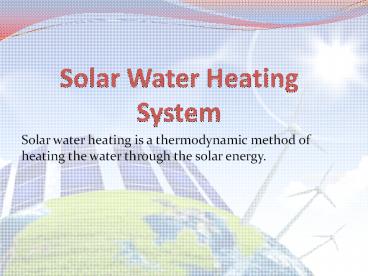

Solar Water Heating System

• Solar water heating is a thermodynamic method of
  heating the water through the solar energy.

2
Types of Solar Water Heating System

• There are basically two types of solar water
  heating system. They are
• Natural circulation system
• Forced circulation system

3
Natural Circulation System
The temperature of water raises by sun rays and
it passes upward as it becomes lighter than the
cold water, and stored in a container which can
be directly used.
4
Forced Circulation System
Forced circulation system needs an electric pump
to circulate the water from the container
5
Three basic operation of solar heating system

• Collection Energy is captures from the sunlight
• Move circulates fluid moves the energy to the
  storage tank
• Storage Hot water is stock up until it needed

6
Application of Solar Heating System

• Domestic application
• Industrial application
• Commercial application

7
Features of Solar Water Heating System

• Well designed
• Can able to meet 50-70 hot water when sunshine
  is free
• Electric or gas can be connected to heat the water

8
Benefits of Solar Heating System

• Able to save 50 of bill for domestic hot water
• Fuel can be store
• Do not pollutes the environment
• It is extremely safe and clean
• Low maintenance cost
• Renewable sources of energy

9
