Guideline For LASER Diode Driver

Description:

Laser drivers are designed for driving laser diodes with high stability, low noise, and/or high power efficiency. It provides the laser current setting and monitoring. If you want to know more about laser diode drivers, view this presentation, there we gave a brief guideline for laser diode drivers. – PowerPoint PPT presentation

Number of Views:293
Slides: 13
Provided by: akevedoff
Category: Other

less

Transcript and Presenter's Notes

Title: Guideline For LASER Diode Driver


1

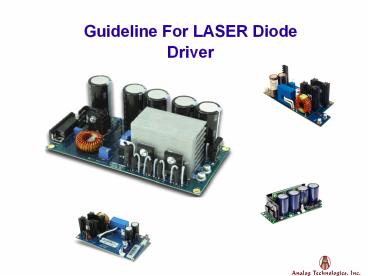

Guideline For LASER Diode Driver
2
For the driving of the LASER diodes (LD) special
drivers circuits are used.
3
2. Produce constant current driven through the LD
load.
1. Produce constant regulated voltage
Ways
4
Types Of Laser Diode
External-cavity diode lasers
Double Heterostructure Lasers
Vertical Cavity Surface Emitting Lasers
5
1. Double Heterostructure Lasers
6
2. Vertical Cavity Surface Emitting Lasers
7
3. External-cavity diode lasers
8
Uses Of Laser Diode
9
Laser diodes find wide use in telecommunication
as easily modulated and easily coupled light
sources for fiber optics communication.
10
Laser diodes use in barcode readers.
11
Many applications of diode lasers primarily make
use of the "directed energy" property of an
optical beam.
12
PPT Created By Analog Technologies
