Title: Radar Remote Sensing (SAR Interferometry, Techniques and Applications)


1

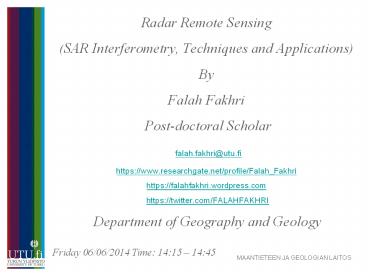

Radar Remote Sensing (SAR Interferometry,
Techniques and Applications)By Falah Fakhri
Post-doctoral Scholar falah.fakhri_at_utu.fi
https//www.researchgate.net/profile/Falah_Fakhri
https//falahfakhri.wordpress.com
https//twitter.com/FALAHFAKHRI? Department of
Geography and Geology

Friday 06/06/2014 Time 1415 1445
MAANTIETEEN JA GEOLOGIAN LAITOS
2
  • Overview
  • Concept of Radar and SAR
  • SAR Image Format and Characteristics
  • Amplitude
  • Phase
  • SAR Interferometry (InSAR)
  • Coherence
  • Interferogram
  • Techniques of SAR Interferometry
  • Conventional SAR Interferometry (Differential SAR
    interferometry)
  • Stacking SAR Interferometry
  • Persistent Scatterers Interferometry (PSI) or
    Interferometric Permanent Target Analysis (IPTA)
  • Small Baseline Subset Technique (SBAS)
  • Software's are used in SAR Interferometry
  • Present and Future plans and strategy

3
Concept of Radar and SAR (1/8)
  • Imagine you are in the Grand Valley and you
    shout. The cliffs will reflect the sound wave.
    After some time you will hear an echo, which is
    not exactly the same compared to what you
    shouted. This is the principle of a radar!

4
Concept of Radar and SAR (2/8)
  • RADAR stands for Radio Detection and Ranging so
    what is a Radar?
  • A (Imaging) Radar is an active system that uses
    a transmitter to illuminate a scene. The pulses
    sent are microwaves, i.e. a wave with an
    amplitude and a phase, having a certain frequency
    and polarization.
  • The radar then records the echo
  • scattered back from the objects/targets
  • B Non imaging

5
  • Concept of Radar and SAR (3/8)


MAANTIETEEN JA GEOLOGIAN LAITOS
6
  • Concept of Radar and SAR (4/8)
  • radars illuminate the target
  • so that they
  • can operate day and night.
  • Microwave frequencies
  • Electromagnetic
  • waves penetrate to
  • Some extent through media.
  • At most frequencies clouds are
  • transparent!
  • Complex interaction with medium or
  • target
  • a Radar image is not a photo!

7
Concept of Radar and SAR (5/8)
8
Concept of Radar and SAR (6/8)
  • Surface Roughness
  • Back-scattering increases with roughness
  • Moisture content
  • Back-scattering
  • increases with moisture
  • Topography
  • Viewing geometry
  • affects the signal

9
Concept of Radar and SAR (7/8)
10
Concept of Radar and SAR (8/8)
  • Synthetic Aperture Radar (SAR)
  • It has cloud-penetrating capabilities
  • because it uses imaging system.
  • It has day and night operational
  • capabilities because it is an active system.
  • Finally, its interferometric configuration

11
SAR Image Format and Characteristics (1/5)
Raw data
Detected SAR image, Single Look Complex, (SLC)
12
SAR Image Format and Characteristics (2/5)
  • Amplitude
  • The detected SAR image contains
  • a measurement of the Amplitude
  • (Intensity) of the radiation
  • backscattered toward the radar by
  • the objects (scatterers) contained in each SAR
    resolution
  • cell.
  • Typically, exposed rocks and urban areas show
    strong
  • amplitude ( bright pixel) whereas smooth flat
    surface, like quiet water basins show low
    amplitude (dark pixels) since the
  • Backscatters (radiation) is mainly measured away
    from the radar.

13
SAR Image Format and Characteristics (3/5)
  • Phase
  • The pulses (radiation) transmitted
  • from the radar has to reach the
  • scatterers on the ground and then
  • to comeback to the radar in order
  • to form the SAR image.
  • Scatterers at different distance from the radar
    introduce a different delay between transmission
    and reception of the radiation.

14
SAR Image Format and Characteristics (4/5)
  • Ascending

15
SAR Image Format and Characteristics (5/5)
  • Descending

16
SAR Interferometry (InSAR)(1/13)
  • Interferometry,
  • Compared with conventional
  • geodetic techniques, one
  • capability long remained out of
  • reach for radar The measurement
  • of angles. Similar to a single
  • human eye, which is essentially
  • blind for the difference in distance to
    objects, it is impossible for radar or SAR to
    distinguish two objects at the same range - but
    different angles- to the instrument. (Hanssen,
    2001)

17
SAR Interferometry (InSAR)(2/13)
  • SAR interferometry (InSAR)
  • Interferometric Synthetic
  • Aperture Radar (InSAR),
  • also referred to as SAR
  • Interferometry consists of
  • Interfering two SAR images
  • of an area, which have been
  • acquired from two slightly
  • different positions in space or time.

18
  • SAR Interferometry (InSAR) (3/13)
  • phase is called the interferometric phase.
  • InSAR phase measures the phase difference of a
    target with respect to the radar. The
    interferometric phase image has values between 0
    and 2? (or between -? and ? depending on the
    representation used) and therefore appears as a
    series of fringes.

19
SAR Interferometry (InSAR)(4/13)
  • phase
  • Displacement
  • phase
  • Topography

20
SAR Interferometry (InSAR) (5/13)
  • phase (example)
  • two images being interfered. It is possible to
    measure the signal phase change, or interference,
    over time.

21
SAR Interferometry (InSAR) (6/13)
  • phase (example)

22
SAR Interferometry (InSAR) (7/13)
  • Coherence
  • The coherence measures the degree of correlation
    between the two SAR images. It is a normalized
    quantity with values between 0 and 1.
  • interferogram
  • The product of SAR interferometry is called the,
    a complex image obtained from the
    cross-correlation of two overlapping complex SAR
    images.

23
SAR Interferometry (InSAR) (8/13)
24
SAR Interferometry (InSAR) (9/13)
  • Master image 19960228 Slave
    image 19960403

25
SAR Interferometry (InSAR) (10/13)
  • Coherence 19960228-19960403

26
SAR Interferometry (InSAR) (11/13)
  • Interferogram (Deformation) 19960228-19960403

27
SAR Interferometry (InSAR) (12/13)
  • Spaceborne SAR interferometric systems

28
SAR Interferometry (InSAR) (13/13)Satellite
Radar Systems available now and into the future
29
Techniques of SAR Interferometry (1/6)
  • Conventional SAR Interferometry (Repeated pass
    Interferometry )
  • In repeat-pass InSAR, two or more SAR images are
    acquired at different times with the same or a
    corresponding sensor from almost identical aspect
    angles.

30
Techniques of SAR Interferometry (2/6)
  • Master image 18 February 1996 Slave image 28
    April 1996

31
Techniques of SAR Interferometry (3/6)
32
Techniques of SAR Interferometry (4/6)
  • Stacking SAR Interferometry (Interferometric
    Stacking) The basic idea of interferogram
    stacking is to combine multiple observations into
    a single result.
  • Total deformation at Larissa estimated with
    interferometric stacking technique, November 1992
    October 2010 , (29 interferograms)



33
Techniques of SAR Interferometry (5/6)
  • Persistent Scatterers Interferometry (PSI)
  • This technique exploits temporal and spatial
    characteristics of interferometric signatures,
    collected from point targets.
  • Distribution of geo-coded radar targets
    (persistent scatterers) in Larissa basin. The
    average in line of sight (LOS) velocity for the
    period (19952006) number of points are 62551

34
Techniques of SAR Interferometry (6/6)
  • Small BAseline Subset
  • (SBAS)
  • DInSAR methodology
  • has been applied
  • first to investigate single
  • deformation events.
  • However, more recently, it has also been
    exploited to analyze the temporal evolution of
    the detected displacements via the generation of
    deformation time series.

35
Software's are used in SAR Interferometry
(1/2)NEST (NEW ESA SATELLITE TOOL BOX)

36
Software's are used in SAR Interferometry
(2/2)GAMMA Remote sensing

37
Present and Future plans and strategy (1/4)
  • The second paper will be submitted soon by me
    and Mr. Risto Kalliola.
  • The third article will be sent to Mr. Risto
    Kalliola during upcoming two weeks

38
Present and Future plans and strategy (2/4)
  • Now a days I prepared with cooperation of Mr.
    Petteri, Mr. Risto the proposal to implement the
    next research which is entitled
  • Generation and validation DEM from multi-
    seasons tandems in dense trees area using
    space-based SAR interferometry case study of
    Turku southwestern Finland
  • I suggest to publish a new article in FENNIA
    journal (I have huge data has not been published
    yet neither in my PhD dissertation nor in any
    paper)

39
Present and Future plans and strategy (3/4)
  • I plan to use SAR Interferometric techniques to
    study the ground deformation of Finland coastline
    (Or Turku)and its impact on landscape.
  • I suggest to use SAR Interferometric techniques
    for forest classification and mapping and
    additionally use the same techniques for
    lithology classification and mapping
  • I plan to use SAR Interferometric techniques
    to study the time series of flooding in Amazonian
    river.

40
Present and Future plans and strategy (4/4)
  • I Propose to present small seminar of InSAR
    within the topic of method in Remote Sensing
    number one or two.
  • I Suggest to create workshop titled Radar
    Remote Sensing and SAR Interferometry

41
  • I would like to express my hope to a further
    collaboration with you
  • Thank you for your attention
  • Kiitos paljon,
  • Kysymykset
