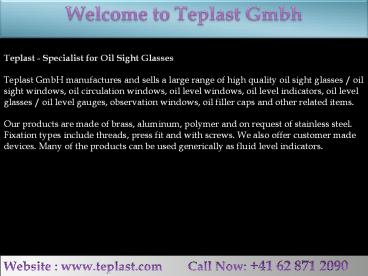

Welcome to Teplast Gmbh
Teplast - Specialist for Oil Sight Glasses
Teplast GmbH manufactures and sells a large
range of high quality oil sight glasses / oil
sight windows, oil circulation windows, oil level
windows, oil level indicators, oil level glasses
/ oil level gauges, observation windows, oil
filler caps and other related items. Our
products are made of brass, aluminum, polymer and
on request of stainless steel. Fixation types
include threads, press fit and with screws. We
also offer customer made devices. Many of the
products can be used generically as fluid level
indicators.
Website www.teplast.com Call Now 41 62 871
2090
2
Oil Windows - System TEPRO
TEPRO Oil Sight Glasses - Diameters 22 - 300 mm
- Press Fit
TEPRO oil level windows / sight glasses with a
diameter up to 300 mm offer a large viewing area.
Thanks to their ideal, simple design they require
no machine wall reinforcement and offer a simple
one-step, self-locking fixation. With a
temperature resistance of up to 130C and
printing screen markings as per your requirement,
TEPRO oil level windows provide a versatile, well
tested and reliable system.
Website www.teplast.com Call Now 41 62 871
2090
3
Oil Circulation Indicators with Thread Model U
Product Specification

• With thread
• Totally clear polymer
• Can be mounted vertically or horizontally
• With seal
• Available in 3 materials
• Polyacryl - for up to 80C
• Polyamide - for up to 100C
• Polycarbonate - for up to 120C

Website www.teplast.com Call Now 41 62 871
2090
4
Oil Level Glasses with Thread Model GE
Product Specification

• Totally translucent polymer
• Non-ageing
• White reflector
• Available in 3 materials
• Polyacryl - for up to 80C
• Polyamide - for up to 100C
• Polycarbonate - for up to 120C

Website www.teplast.com Call Now 41 62 871
2090
5
Oil Level Windows Models MA and OA (Polymer)
Product Specification

• With or without drain screw
• White reflector
• WIth seal
• Available in 3 materials
• Polyacryl - for up to 80C
• Polyamide - for up to 100C
• Polycarbonate - for up to 120C

Website www.teplast.com Call Now 41 62 871
2090
6
Oil Level Indicators Model AS (Polymer)
Product Specification

• Fixation screw of brass
• Polymer level tube, can be rotated
• Two-way venting
• Oil level markings according to your Master

Website www.teplast.com Call Now 41 62 871
2090
7
Numbered Markers
Product Specification

• Marking green, durable, abrasion-resistant and
  recessed into the head
• With seal

Website www.teplast.com Call Now 41 62 871
2090
8
Oil Level Indicators Model AS (Polymer)
Product Specification

• Red polymer
• With seal
• Also available with breather rings

Website www.teplast.com Call Now 41 62 871
2090
9
Thank you !!!!!
Contact us
Teplast GmbH Hauptstrasse 53 CH-5074
Eiken Switzerland
info_at_teplast.com
41 62 871 2090
41 62 871 2190
