gas pycnometer helium true density analyzer G-DenPyc 2900 by gas displacement

1

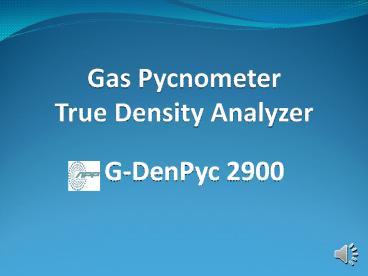

Gas Pycnometer True Density Analyzer

• G-DenPyc 2900

2
(No Transcript)
3
G-DenPyc 2900 true density analyzer parameters

• Analysis Method Volume displacement method, gas
  expansion principle
• Versatility true density analysis, rigid foam
  materials percentage of open/close area analysis
• Experimental Pressure external vacuum pump is
  available, can adopt negative pressure (0-1Bar)
  or positive pressure (1-2Bar) two modes to
  analysis
• Accuracy accuracy 0.02, repeatability 0.01,
  resolution can reach 0.0001g/cc
• Sample Ports three samples analysis
  simultaneously
• Pressure Accuracy imported high-precision
  pressure transducer, accuracy can reach 0.04
  F.S., stability 0.025 F.S.
• Adsorbate Gas high purity He or N2 (99.999)

4
G-DenPyc 2900 true density analyzer features

• Data Reduction high-precision P?T gas density
  calculation model eliminates measurement errors
  caused by non-ideality gas state, can increase
  analysis accuracy
• Thermostatic System analysis modules designed
  with thermostatic system can control temperature
  up and down easily, also hold modules stay at the
  best temperature(25 C) which can restrain
  transducer readings temperature drift and keep
  system temperature uniformity System can
  maintain temperature at a fixed value for some
  fixed-temperature-required samples
• Control System programmable logic controller
  (PLC) system obtains high integration and strong
  anti-interference, software operated fully
  automated analysis enables freely choose of multi
  experiment modes
• Analysis Management programmable built-in
  system, touch screen, USB type external keyboard
  and mouse, operated by connecting to computer is
  available

5

• Manifolds System patented V-Sorb
  assembling-installed manifolds system can improve
  sealing performance and reduce dead space
  largely, enhance system temperatures uniformity
  and anti-interference ability, all lead to a high
  accuracy and repeatability data
• Splash-proof Measures installed with a
  detachable filter in sample cells bottom, can
  prevent samples be suctioned into manifolds
  inputting gas from cavity bottom can avoid
  samples splash and software controlled H-Sorb
  two-stage-stepping mode further ends splash
  happening
• Sample Container 50mm (diameter) and 180ml
  (500ml is available) big cylinder sample cell is
  convenient for samples filling Exclusive
  G-DenPyc filling technology supports to choose
  different volumetric aluminum blocks to fill cell
  instead change other sizes cells according to
  samples volume, this innovative method realizes
  minimal free space in cells and improve
  experiment accuracy

6
Application

•  Apply to research and quality control for below
  materials ceramic, catalysts, filter medium,
  nuclear fuel, oil chemical industry, soil,
  fertilizer, carbon black, hard coke, fiber,
  minerals, pharmacy, cosmetics, cement, powdered
  foodstuff, desiccant (drying agent), powdered
  metal, ion exchange resin, silicon gel, alumina,
  titanium dioxide, solid foam etc.
