Go West Young Federation

1

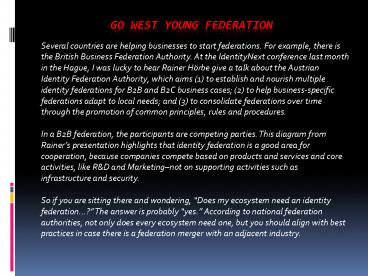

Go West Young Federation

• Several countries are helping businesses to start
  federations. For example, there is the British
  Business Federation Authority. At the
  IdentityNext conference last month in the Hague,
  I was lucky to hear Rainer Hörbe give a talk
  about the Austrian Identity Federation Authority,
  which aims (1) to establish and nourish multiple
  identity federations for B2B and B2C business
  cases (2) to help business-specific federations
  adapt to local needs and (3) to consolidate
  federations over time through the promotion of
  common principles, rules and procedures.
•
• In a B2B federation, the participants are
  competing parties. This diagram from Rainers
  presentation highlights that identity federation
  is a good area for cooperation, because companies
  compete based on products and services and core
  activities, like RD and Marketingnot on
  supporting activities such as infrastructure and
  security.
•
• So if you are sitting there and wondering, Does
  my ecosystem need an identity federation? The
  answer is probably yes. According to national
  federation authorities, not only does every
  ecosystem need one, but you should align with
  best practices in case there is a federation
  merger with an adjacent industry.

2
But starting your federation is easier said than
done. This is why some governments are jumping in
to help. If you are going to be the federation
evangelist in your ecosystem, and you dont have
a national federation authority to give you a
boost, where should you start? Following is a
list of some of the things you may want to
consider.   Tools   Public Website   This is the
first stop for participants who are interested to
learn more about your federation. Youll need to
publish information about your federation, such
as the agreements, policies, procedures,
participant list, metadata distribution
locations, standards and other general
information.   Participant Enrollment
Process   New participants, both identity
providers and relying parties, will want to join
your federation. You need a tool to automate
participant registrations, to manage the workflow
for approval, and to finally render the metadata
in the appropriate formats (XML and JSON). Many
federations write their own software to do this.
There are two open source implementations
Edugate Jagger (used by Gluu) and AAF Federation
Registry.
3

• Metadata publication and distribution
• Once you have your XML and JSON federation files,
  youll need to make sure they are available.
  Think DNS and secondary DNS In many cases, the
  federation data is updated every five minutes. So
  if the metadata is not available during network
  outages, websites may choose to deny access.
• Discovery Standards
• OpenID Connect based discovery defines a standard
  json object that is returned for
  .well-known/openid-configuration. The federation
  may want to follow this convention, and provide a
  JSON object that describes the functionality that
  is supported by the participant. You can see a
  sample response for OpenID Discovery from Gluus
  interop server here. Following the convention of
  Webfinger, the federation named myFederation
  may define a file such as this
  .well-known/myFederation-configuration to enable
  the participants to publish information about the
  services provided.
• User Claims / OpenID Connect Scopes
• OpenID Connect defines basic user claims, which
  should be adopted by the federation. However, the
  federation may have custom requirements for
  standard claims. Defining standard claims at the
  federation drives down the cost of integration
  for the participants.

4
OpenID Connect Scopes enable the federation to
group the user claims. If a federation has
defined custom user claims, they may also need to
define OpenID Connect scopes to include these
additional claims. Client Claim Schema Sometimes
policy can be driven by attributes of the
website. For example, if certain websites are
classified as research, the IDP may have a
different default attribute release policy. UMA
Scopes UMA scopes are typically URLs that
identify federation standards for policy
evaluation. For example, the federation could
define a scope http//myFederation.org/uma/scopes
/finance (Finance Scope) In this way Relying
Parties could submit a standard query to any
authorization server to find out if that person
has that permission. The policies behind this
permission may vary from Participant to
Participant. Participant A might specify that
someone is authorized for the Finance Scope if
they are in a certain Active Directory Group.
Participant B may set the policy for Finance
Scope based on network address and time of day.
The benefit of the federation standard scope is
that applications can make the same request to
different authorization servers, requiring less
one-off security solutions.
5
SAML Proxy A SAML proxy can make it easier for a
federation to roll out new websites to its IDP
participants. In meshed federations, the IDP must
explicitly trust the SP and release attributes.
If you have thousands of IDPs in your network, it
becomes hard to rollout new websites as each IDP
would have to update their configuration to add
SSO. Sometimes this is desirable especially if
there is little trust in the federation to manage
content. However, if the federation is trusted,
using a proxy to connect to certain websites can
enable people to access new content without their
home identity provider having to do any
incremental work. Rules Charter This document
provides the governance for the federation
including the policies, rules, and financial
arrangements. Participation Agreement This
document is signed by the identity providers and
relying parties. In some cases, an organization
may be both..
6
It also details the policies and procedures.
Furthermore the Participation agreement defines
the level of assurance of the authentication
provided by identity providers, and the level of
protection for personal data afforded by the
relying parties. It can also be a good place to
provide guidelines for security incident
handling, threat data sharing, and other
inter-domain security processes. User Banner
Consent Somewhere the person using the federated
credentials has to agree to the rules. The best
place to do this is at authentication time, so
the person knows what he is getting into when he
uses the federated credentials to access websites
and mobile applications. Steering
Committee Like any collaborative organization,
you need to find the people who can help drive
adoption in their respective communities. The
steering committee should help with the formation
of the Charter, provide feedback on the
agreements, lead the integrations of the
federation in their home organizations, and have
a desire to evangelize the benefits of
cooperation to industry peers.
7
Communication Plan This is marketing for the
federation. The federation may want to produce
white papers, webinars, case studies, posters,
conferences, regional training sessions,
newsletters and other activities to get the word
out about the federation. The communication plan
should be a long term plan to both keep
participants up-to-date, and to recruit new
participants from the ecosystem. It sounds
like a long to-do list, but like any journey, the
hardest part is the first step. If you want some
help along the way, you may want to schedule a
meeting with Gluu. We are helping to catalyze
several federations around the globe. Article
Resource-http//thegluuserver.blogspot.in/2014/01
/go-west-young-federation.html
