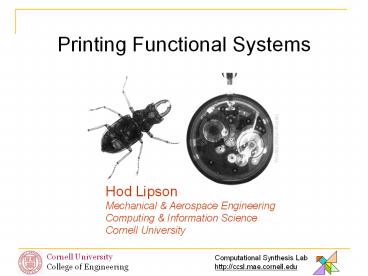

Printing Functional Systems

1
Printing Functional Systems
Worlds Within Worlds
Hod Lipson Mechanical Aerospace
Engineering Computing Information
Science Cornell University
2
Breeding machines in simulation
Lipson Pollack, Nature 406, 2000
3
Printable Machines
4
Multi-material RP
Illustration Bryan Christie
5
Multi-material processes
Continuous paths Volume Fill
High-resolution patterning, mixing Thin films
(60nm)
6
Our RP Platform
Fabrication platform (a) Gantry robot for
deposition, and articulated robot for tool
changing, (b) continues wire-feed tool (ABS,
alloys), (c) Cartridge/syringe tool
7
Zinc-Air Batteries
With Megan Berry
8
Zinc-Air Batteries
9
IPMC Actuators
10
IPMC Ionomer

• Ionomeric Polymer-Metal Composite
• Ionic polymer
• Branched PTFE polymer
• Anion-terminated branches.
• Small cation

11
First printed dry actuator

• Quantitative characterization
• Improve service life
• Reduce solvent loss
• Reduce internal shorting
• Improve force output, actuation speed

12
Embedded Strain Gages
Silver-doped silicon
Robot finger sensor
13
IPMC Actuators
14
With Daniel Cohen, Larry Bonassar
Multi-material 3D Printer
CAT Scan
Direct 3D Print after 20 min.
Sterile Cartridge
Printed Agarose Meniscus Cell Impregnated
Alginate Hydrogel
Multicell print
15
Learning from history

• Similarity with the computer industry
• In the 50s-60s computers
• Cost hundreds of thousands of
• Had the size of a refrigerator
• Took hours to complete a single job
• Required trained personal to operate
• Were fragile and difficult to maintain
• Vicious circle
• Niche applications ? Small demand
• Small demand ? High cost ? Niche applications

Digital PDP-11, 1969
Stratasys Vantage, 2005
16
Exponential Growth
RP Machine Sales
Source Wohlers Associates, 2004 report
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
Availabot by Jack Schulze (Interaction Design)
plugs into your computer by USB, stands to
attention when your chat buddy comes online, and
falls down when they go away. Its a
presence-aware, peripheral-vision USB toy and
because the puppets are made in small numbers on
a rapid-prototyping machine, it can look just
like you
21
Download your museum piece today
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
The First Home Computer

• ALTAIR 8800 microcomputer kit (1975)
• 397 (2MHz, 256 bytes RAM)

Generally credited with launching the PC
revolution
26
Came as a Kit

• Accessible (cost)
• Hackable (open)
• Solves chicken-and-egg paradox
• Killer app Games

27
(No Transcript)
28
Fab_at_Home

• Multimaterial
• Low cost
• Open source

29
(No Transcript)
30
fabathome.org
31
(No Transcript)
32
(No Transcript)
33
FabLab, Pretoria, South Africa
Louisville, KY, USA
Rockefeller Univ., New York, USA
Science Museum, London, UK
34
Boston, MA, USA
FabLab, Lyngen, Norway
Art Inst. of Chicago, USA
35
University of Adelaide, Australia
Renato Archer Research Center, Campinas, Brazil
Univ. Washington, USA
FabLab, Amsterdam, Netherlands
36
(No Transcript)
37
(No Transcript)
38
(No Transcript)
39
(No Transcript)
40
Cake frosting used as support material for
overhangs
41
Massively Parallel Assembly

• With Jonathan Hiller

42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
500 µm
48
A factory in your kitchen

• Buy blueprints, download and print
• No stock, shipping, and delays
• New class of independent designers
• Remove barriers due to resources and skills
• Mass customization
• Unencumbered by mass production paradigm
• More possible complexities
• Larger design space, freedom to create (Burns)
• Environmentally friendly
• Net shape, Nearly wasteless

49
Grand Challenges

• Can we design machines that can design other
  machines?
• Can we make machines that can make other
  machines?
• Can we make machines that can explain other
  machines?
